MOBIWAY BOOST
MOBIWAY BOOST
MOBIWAY
MOBIWAY BOOST - cable and reel system. Cable: Cu conductors PVC insulation, PVC sheath. 450/750 V. Made to AS/NZS 5000.2
Read moreCU TPS 2X 1.0+E WH 2HM BOOST
Nexans ref. CNZP02MK002WVHF - Country ref. 9779.MB
- Packaging: Unit
- Sheath colour: White
- Insulation: PVC
- Type of conductor: Circular, stranded
- Conductor cross-section: 1 mm²
- Earth conductor cross section: 1 mm²
- Nominal overall diameter: 4.0 x 8.6
- Approximate weight: 0.07 kg/m
- Rated Voltage Uo/U: 450/750 V
CU TPS 3X 1.0 LT YE 200M BOOST
Nexans ref. EACP02MK003YXRJ - Country ref. 5510.MB
- Packaging: Unit
- Sheath colour: Yellow
- Insulation: PVC
- Type of conductor: Solid
- Conductor cross-section: 1 mm²
- Earth conductor cross section: - mm²
- Nominal overall diameter: 4.0 x 8.6
- Approximate weight: 0.07 kg/m
- Rated Voltage Uo/U: 450/750 V
CU TPS 2X 1.5+E WH 150HM BOOST
Nexans ref. CNZQ05MK002WVHF - Country ref. 2521.MB
- Packaging: Unit
- Sheath colour: White
- Insulation: PVC
- Type of conductor: Circular, stranded
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 4.7 x 10.2
- Approximate weight: 0.09 kg/m
- Rated Voltage Uo/U: 450/750 V
CU TPS 3X 1.5+E LT BU 110M BOOST
Nexans ref. ENZQ05MK003BFRJ - Country ref. 4191.MB
- Packaging: Unit
- Sheath colour: Blue
- Insulation: V-90
- Type of conductor: Class 2
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 4.74 x 13.7
- Approximate weight: 0.12 kg/m
- Rated Voltage Uo/U: 450/750 V
CU TPS 3X 1.5 LT YE 150M BOOST
Nexans ref. EACQ05MK003YXRJ - Country ref. 3171.MB
- Packaging: Unit
- Sheath colour: Yellow
- Insulation: PVC
- Type of conductor: Circular, stranded
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: - mm²
- Nominal overall diameter: 4.6 x 10.2
- Approximate weight: 0.09 kg/m
- Rated Voltage Uo/U: 450/750 V
CU TPS 2X 2.5+E WH 110HM BOOST
Nexans ref. CNZP07MK002WVHF - Country ref. 1080.MB
- Packaging: Unit
- Sheath colour: White
- Insulation: PVC
- Type of conductor: Circular, stranded
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 5.3 x 12.0
- Approximate weight: 0.14 kg/m
- Rated Voltage Uo/U: 450/750 V
CU TPS 2X 4+2.5E WH 80M BOOST
Nexans ref. CNZP09MK002WVHF - Country ref. 6646.MB
- Packaging: Unit
- Sheath colour: White
- Insulation: PVC
- Type of conductor: Circular, stranded
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.4 x 14.8
- Approximate weight: 0.19 kg/m
- Rated Voltage Uo/U: 450/750 V
CU TPS 2X 6+2.5E WH 65M BOOST
Nexans ref. CNZP11MK002WVHF - Country ref. 3146.MB
- Packaging: Unit
- Sheath colour: White
- Insulation: PVC
- Type of conductor: Circular, stranded
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.9 x 16.4
- Approximate weight: 0.27 kg/m
- Rated Voltage Uo/U: 450/750 V
CU CONDUIT 6 GNYE V75 200M BOOST
Nexans ref. BAAP11MK001AAHN - Country ref. 6112.MB
- Packaging: Unit
- Sheath colour: Green / Yellow
- Insulation: V-75
- Type of conductor: Circular, stranded
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter:
- Approximate weight: 0.08 kg/m
- Rated Voltage Uo/U:
Description
Description
Standards
-
ProductAS/NZS 5000.2
Overview
MOBIWAY BOOST is Nexans' innovative cable installation system combining our top selling building cable with a game-changing spool design to help you work smarter, faster, and safer.
Made to AS/NZS 5000.1 and AS/NZS 5000.2
Application
- Domestic, residential, and commercial building
- Industrial general applications
- Fixed applications for power, lighting, and earthing
Features & Benefits
- Integrated handle for easy transportation and rewinding

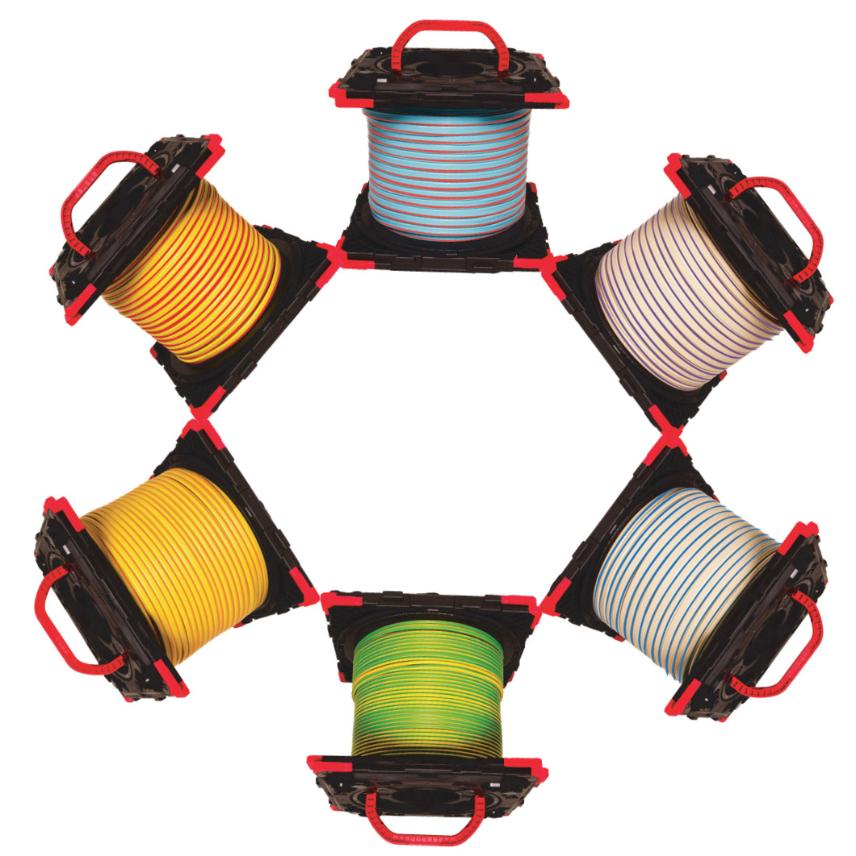

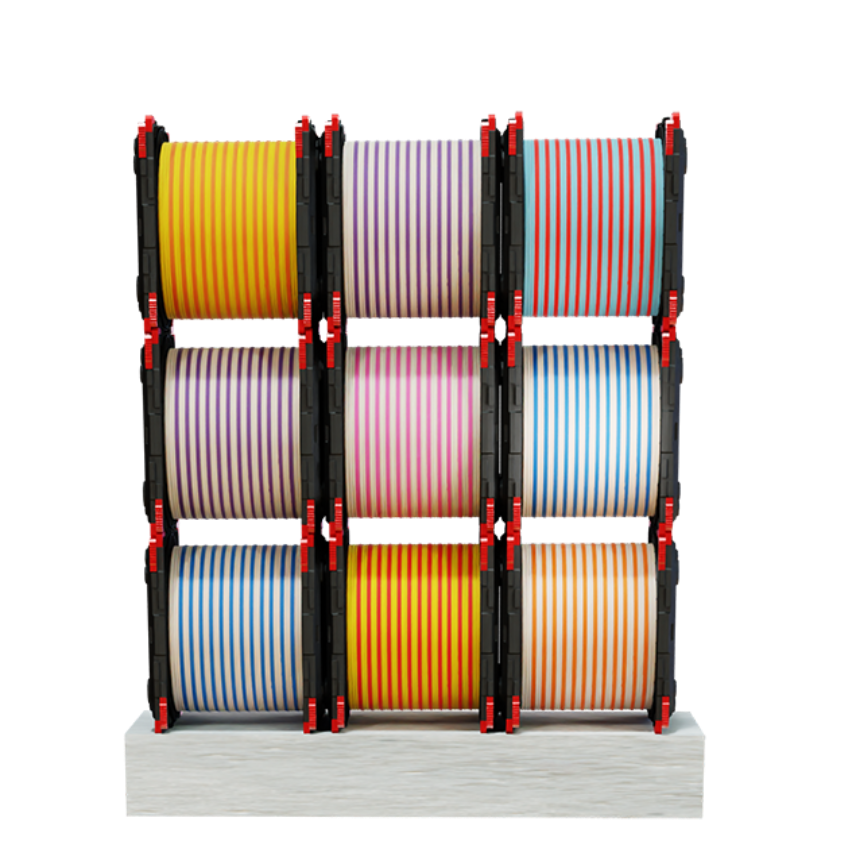

- Vertical or horizontal stacking for running multiple cables
- Optimised pre-cut cable length on every reel

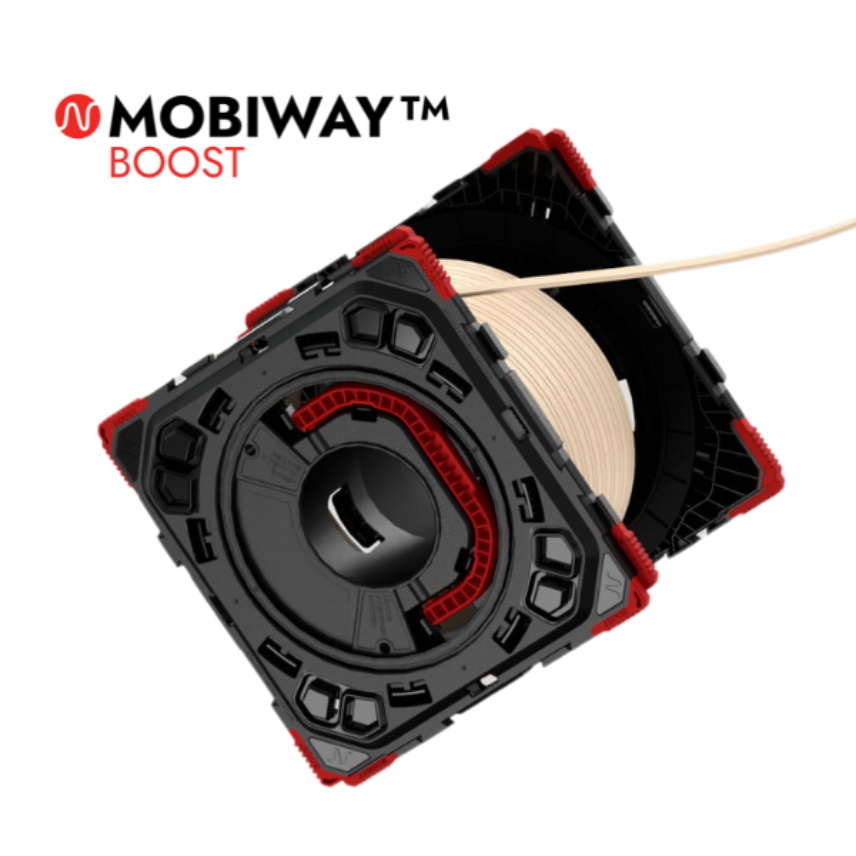

- Free rolling inner spool
- Meter marked
- Reel is returnable and reusable
MOBIWAY BOOST UNIT DIMENSIONS

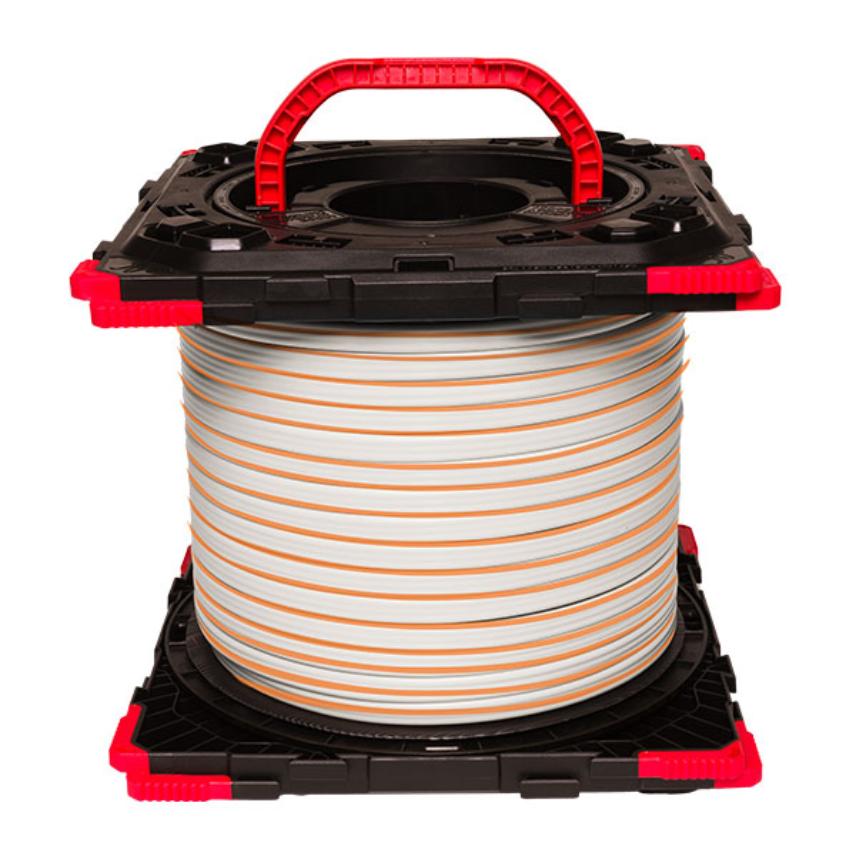

MOBIWAY BOOST (REEL) DIMENSIONS: H:287.3mm x W:287.3mm x D:258mm, 1.262kg (empty spool)
PALLET DIMENSIONS (FULL PALLET = 48 BOOST UNITS): L:1167mm x W: 1167mm x H: 1162mm, 1150kg (approx)
DISCOVER MOBIWAY BOOST
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Current carrying capacities single phase (in Amps) - TPS - 2 cores and 2 cores plus earth
PVC insulation
For cables up to and including 450/750 V @ 50 Hz AC.
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 17 | 16 | 15 | 19 | 19 | 8 |
| 1.5 | 22 | 21 | 18 | 23 | 23 | 10 |
| 2.5 | 31 | 30 | 26 | 33 | 33 | 15 |
| 4.0 | 42 | 39 | 34 | 43 | 43 | 19 |
| 6.0 | 52 | 50 | 44 | 55 | 55 | 25 |
| 10.0 | 73 | 68 | 59 | 73 | 73 | 34 |
| 16.0 | 97 | 91 | 78 | 125 | 95 | 46 |
| 25.0 | 129 | 122 | 103 | 162 | 123 | 60 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation unenclosed |
Selling & delivery Information
Cable PEP/EPD available
