CU TPS 3X 1.0 LT YE 200M BOOST

Description

Description

Standards

  • Product
    AS/NZS 5000.2

Cable data:

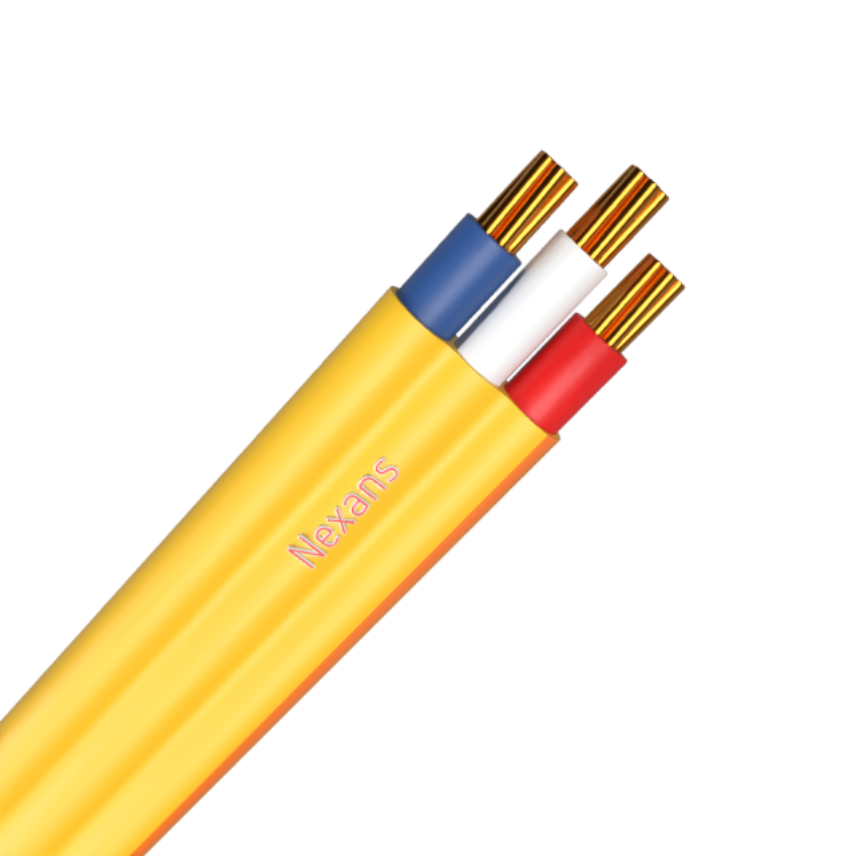

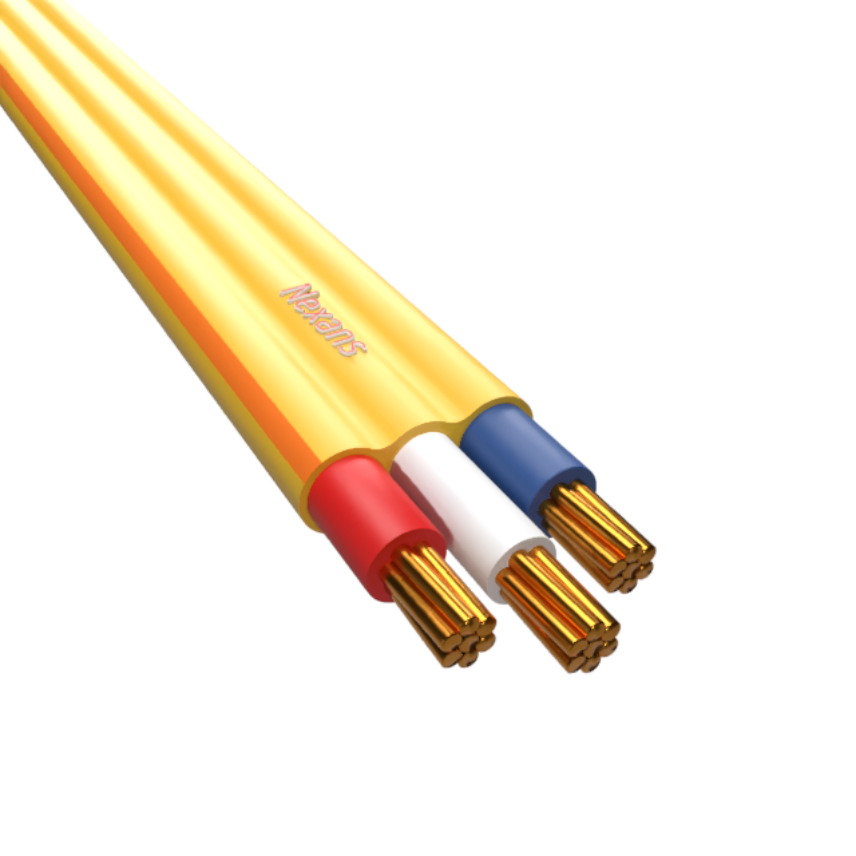

  • 3 phase flat TPS (BU, RD, WH)
  • Cu conductors, PVC insulation, 450/750kV.
  • Made to AS/NZS 5000.2.

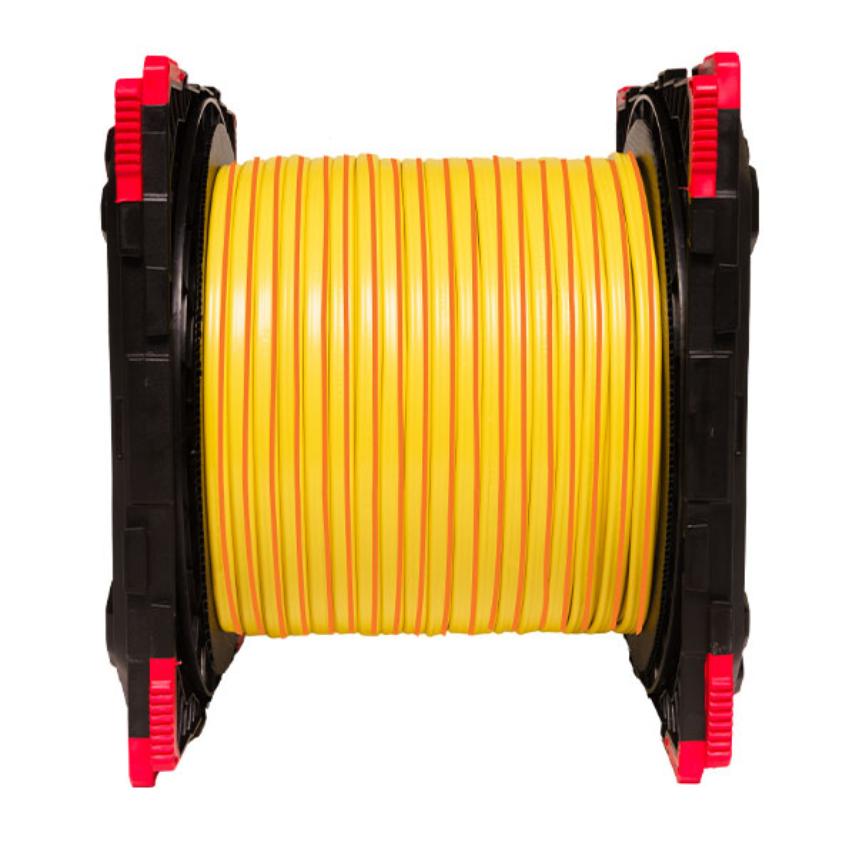

MOBIWAY BOOST system

  • The patented MOBIWAY BOOST reel system
  • An innovative 'cable & reel' system that is easy to transport, easy to install, and reusable
  • Nexans' top selling building cables in optimal, pre-cut length



Features & Benefits:

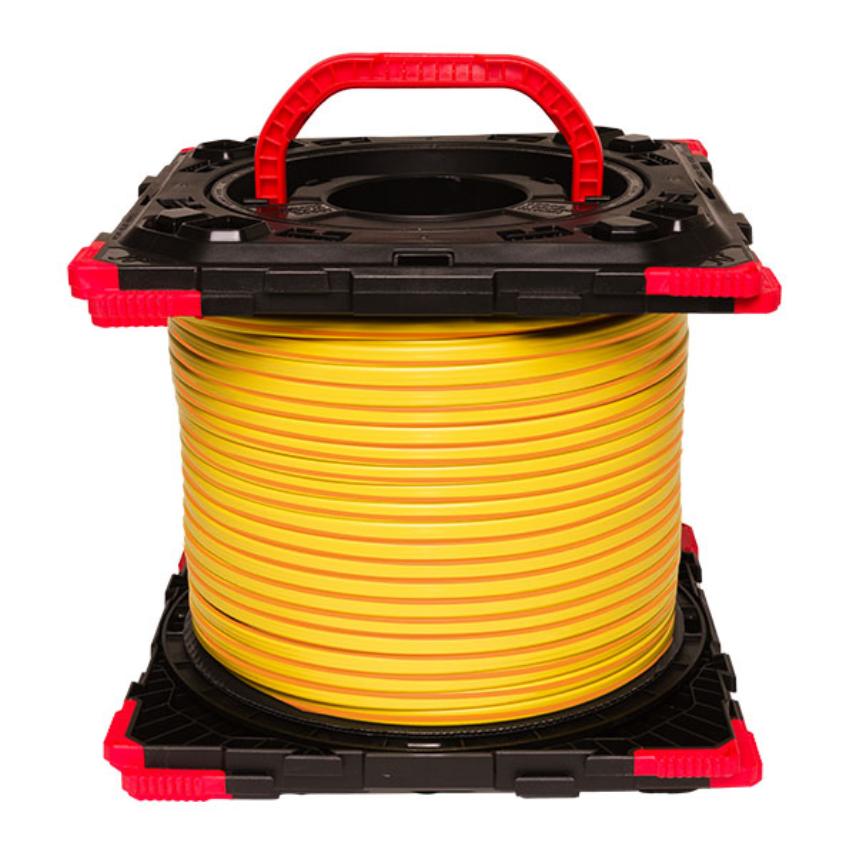

  • Integrated handle means easy to carry
  • Vertical or horizontal stacking for running multiple cables
  • Optimised pre-cut cable length on every reel
  • Meter marked
  • Easy to unspool
  • Easy to rewind
  • The MOBIWAY BOOST reel is returnable and reusable



Application

  • Domestic, residential, and commercial building
  • Fixed applications for power and lighting

MOBIWAY BOOST UNIT DIMENSIONS

MOBIWAY BOOST (REEL) DIMENSIONS: H:287.3mm x W:287.3mm x D:258mm, 1.262kg (empty spool)

PALLET DIMENSIONS (FULL PALLET = 48 BOOST UNITS): L:1167mm x W: 1167mm x H: 1162mm, 1150kg (approx)

DISCOVER MOBIWAY BOOST

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Pilot wires
None
Sheath colour
Yellow
With Green/Yellow core
No
Conductor material
Copper
Insulation
PVC
Outer sheath
PVC
Conductor flexibility
Solid class 1
Conductor shape
Circular
Core identification
Red, White Blue
Type of conductor
Solid
Wire colour
-
With smaller neutral conductor
No

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
1 mm²
Earth conductor cross section
- mm²
Nominal overall diameter
4.0 x 8.6
Approximate weight
0.07 kg/m
Neutral conductor section (when smaller)
- mm²
Nominal overall diameter
- mm
Number of cores
3

Electrical characteristics

Electrical characteristics

Max. DC resistance of the conductor at 20°C (Ohm/km)
18.1
Rated Voltage Uo/U
450/750 V
Rated Voltage Uo/U (Um)
450/750 V

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Rigid

Usage characteristics

Usage characteristics

Max. conductor temperature in service
75 °C

Resources

Resources

Selling & delivery Information

Cable PEP/EPD available
