CU CONDUIT 6 GNYE V75 200M BOOST
CU CONDUIT 6 GNYE V75 200M BOOST
MOBIWAY
CU CONDUIT 6 GNYE V75 200M BOOST
Read more- Nexans ref. : BAAP11MK001AAHN
- Country ref. : 6112.MB
- EAN : 9319215517786
Description
Description
Standards
-
ProductAS/NZS 5000.2

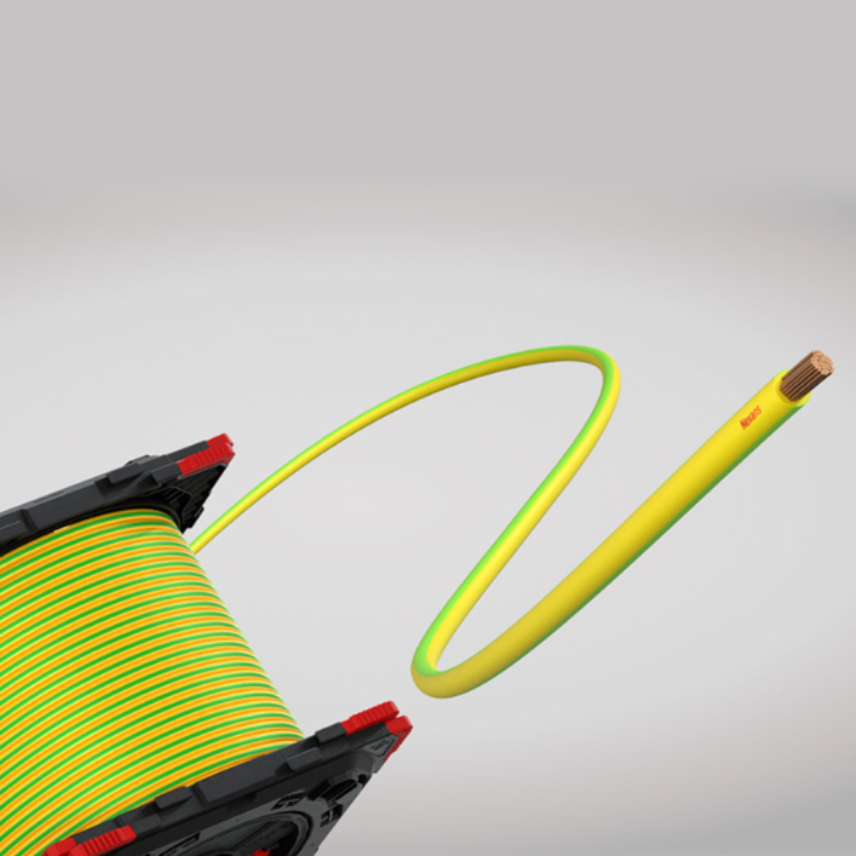

Cable data:
- Single core green/yellow earth
- Cu conductor, PVC insulation. 0.6/1 kV. Made to AS/NZS 5000.1.
- Made to AS/NZS 5000.1.

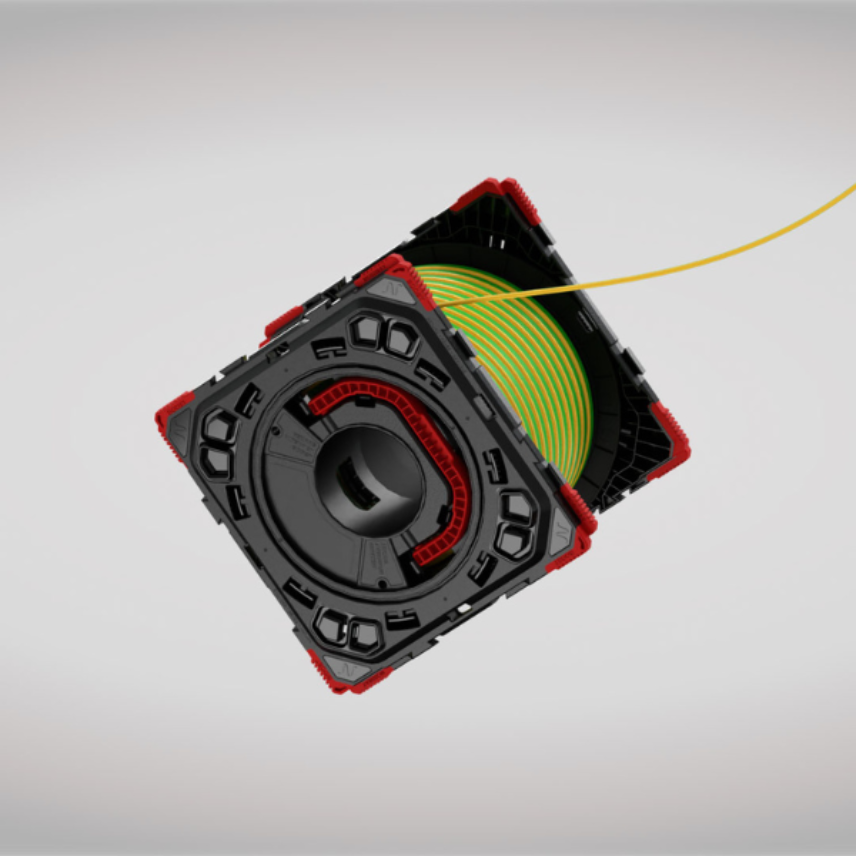

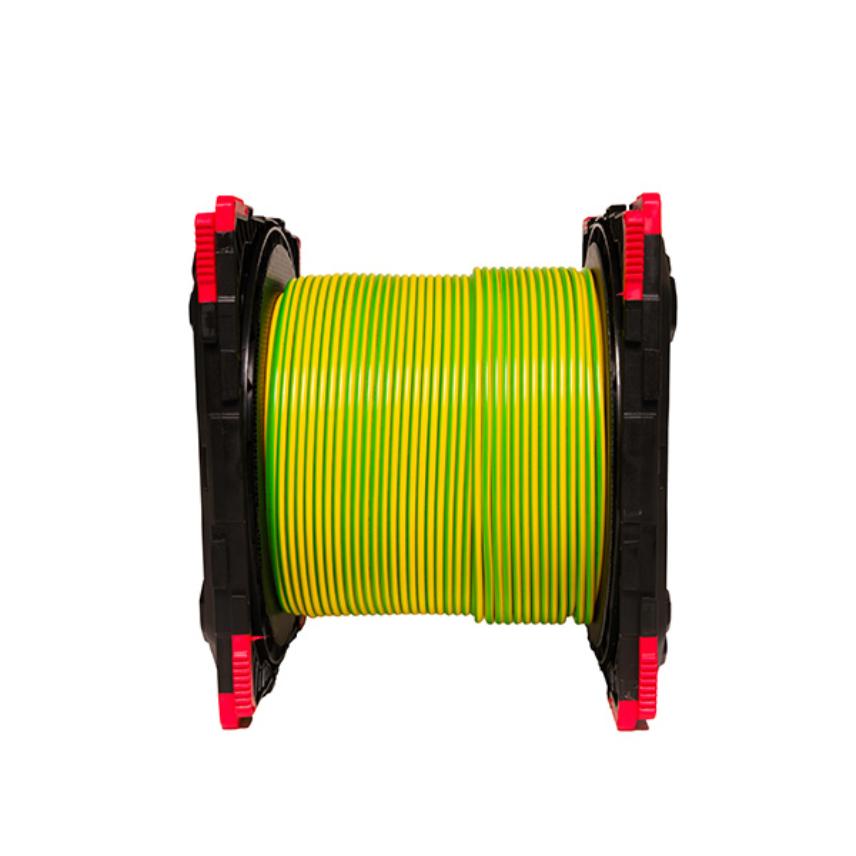

MOBIWAY BOOST system
- The patented MOBIWAY BOOST reel system
- An innovative 'cable & reel' system that is easy to transport, easy to install, and reusable
- Nexans' top selling building cables in optimal, pre-cut length
Features & Benefits:

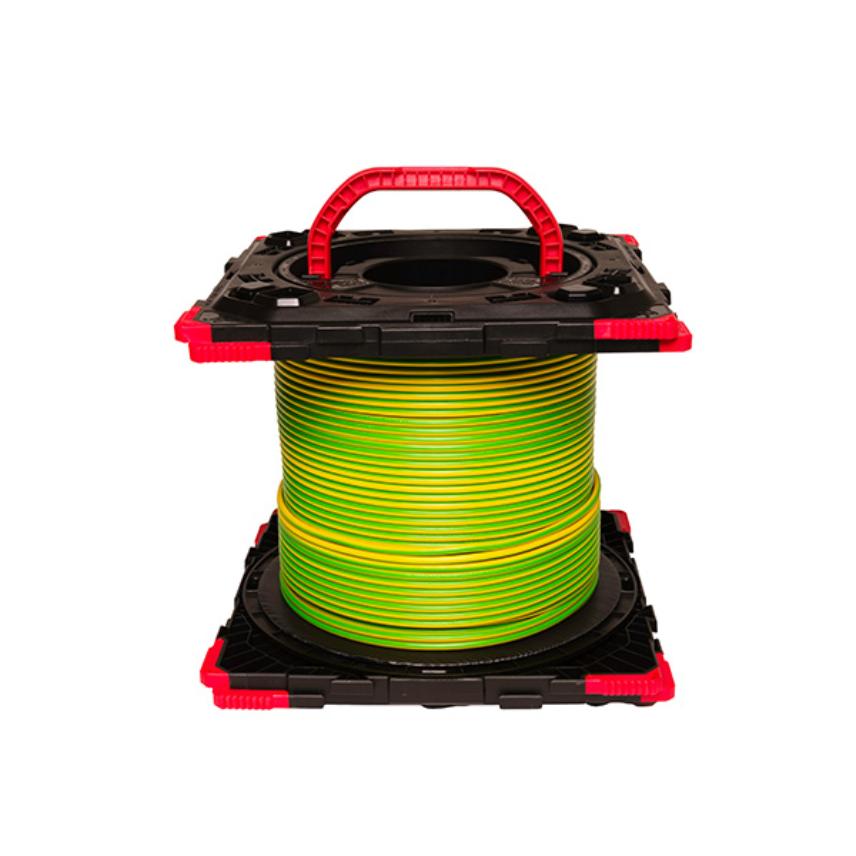

- Integrated handle means easy to carry
- Vertical or horizontal stacking for running multiple cables
- Optimised pre-cut cable length on every reel
- Meter marked
- Easy to unspool
- Easy to rewind
- The MOBIWAY BOOST reel is returnable and reusable
Application
- Domestic, residential, and commercial building
- Industrial general applications
- Fixed applications for power and earthing
MOBIWAY BOOST UNIT DIMENSIONS
MOBIWAY BOOST (REEL) DIMENSIONS: H:287.3mm x W:287.3mm x D:258mm, 1.262kg (empty spool)
PALLET DIMENSIONS (FULL PALLET = 48 BOOST UNITS): L:1167mm x W: 1167mm x H: 1162mm, 1150kg (approx)
DISCOVER MOBIWAY BOOST
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Pilot wires
None
Sheath colour
Green / Yellow
With Green/Yellow core
No
Conductor material
Copper
Insulation
V-75
Outer sheath
PVC
Conductor flexibility
Class 2
Conductor shape
Circular
Core identification
Green / Yellow
Type of conductor
Circular, stranded
Wire colour
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
6 mm²
Earth conductor cross section
6 mm²
Nominal overall diameter
Approximate weight
0.08 kg/m
Neutral conductor section (when smaller)
- mm²
Nominal overall diameter
5.45 mm
Number of cores
1
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C (Ohm/km)
3.08
Rated Voltage Uo/U
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Max. conductor temperature in service
75 °C
Resources
Resources
Selling & delivery Information
Cable PEP/EPD available
