CU TPS 2X 6+2.5E WH 65M BOOST
NEW
CU TPS 2X 6+2.5E WH 65M BOOST
MOBIWAY
CU TPS 2X 6+2.5E WH 65M BOOST
Read more- Nexans ref. : CNZP11MK002WVHF
- Country ref. : 3146.MB
- EAN : 9319215517861
Description
Description
Standards
-
ProductAS/NZS 5000.2
Overview
MOBIWAY BOOST is Nexans' innovative cable installation system combining our top selling building cable with a game-changing spool design to help you work smarter, faster, and safer.
Made to AS/NZS 5000.1 and AS/NZS 5000.2

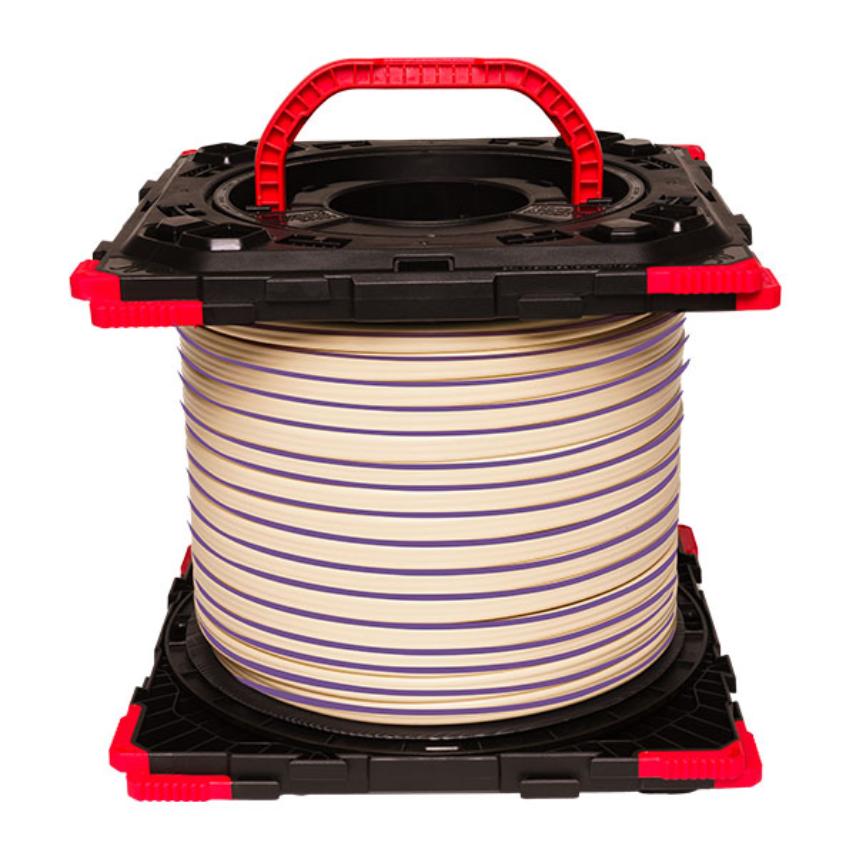

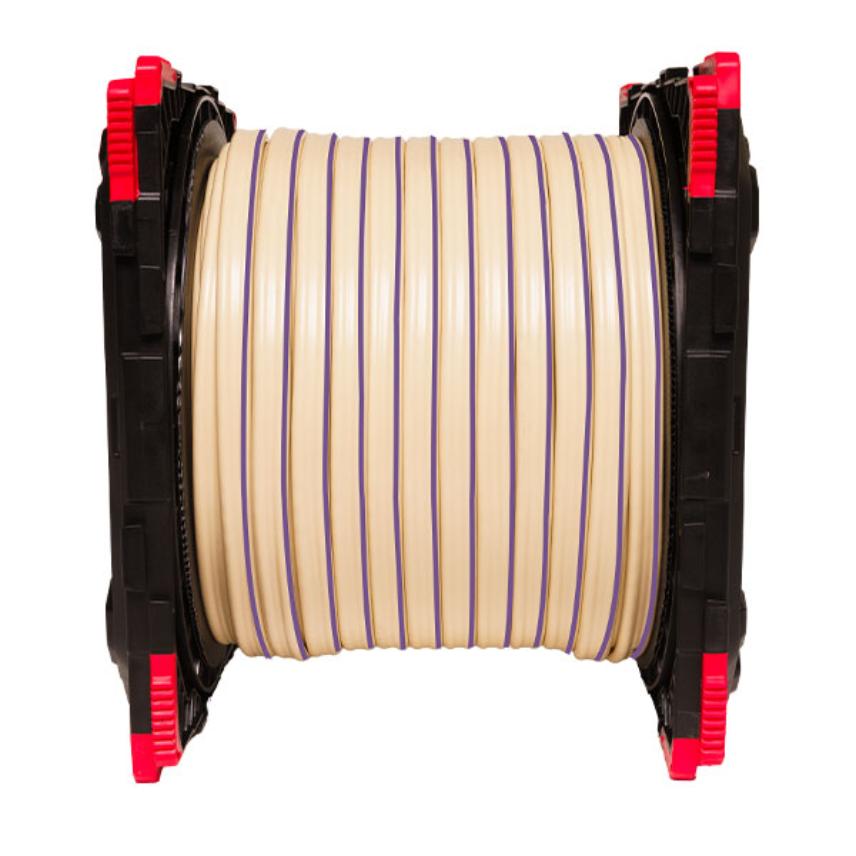

MOBIWAY BOOST UNIT DIMENSIONS
MOBIWAY BOOST (REEL) DIMENSIONS: H:287.3mm x W:287.3mm x D:258mm, 1.262kg (empty spool)
PALLET DIMENSIONS (FULL PALLET = 48 BOOST UNITS): L:1167mm x W: 1167mm x H: 1162mm, 1150kg (approx)
DISCOVER MOBIWAY BOOST
Characteristics
Characteristics

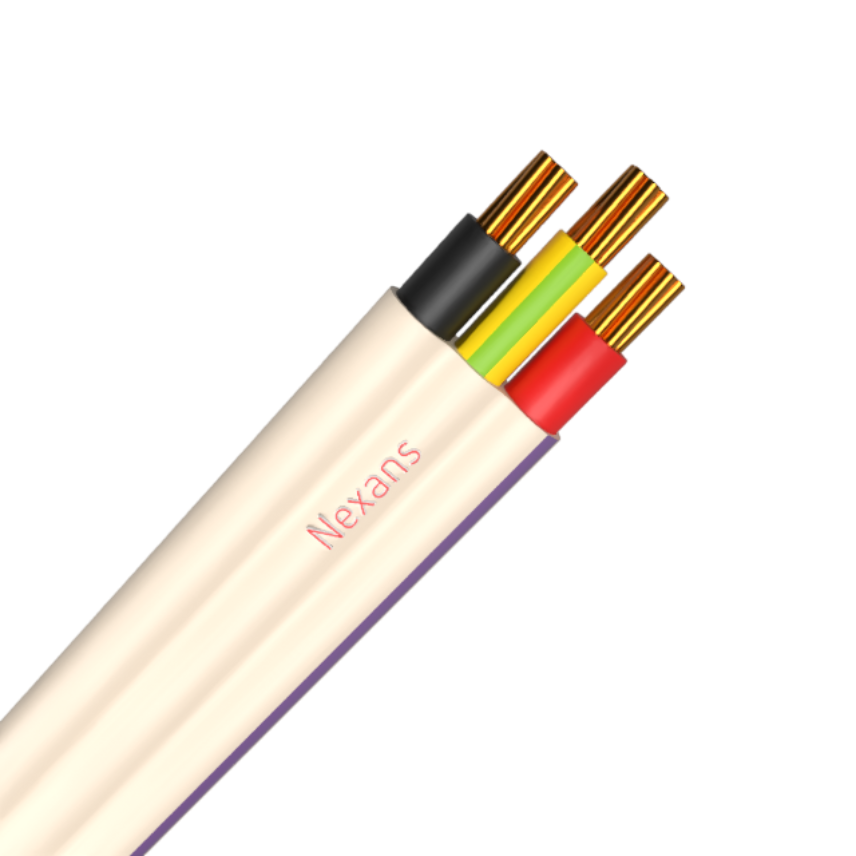

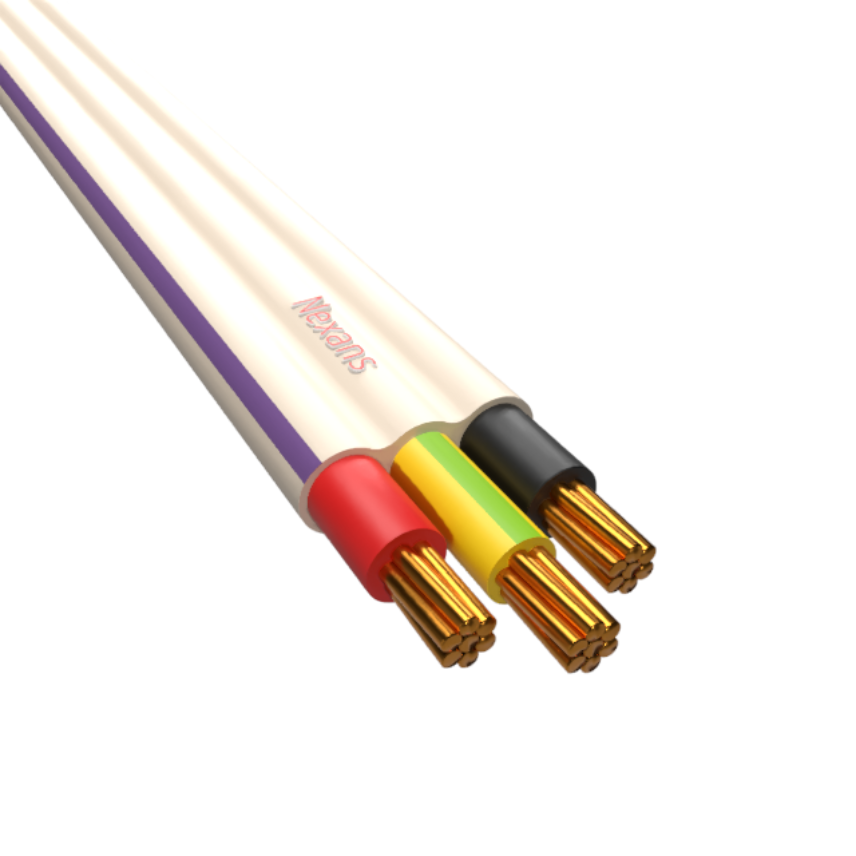

Construction characteristics
Construction characteristics
Pilot wires
None
Sheath colour
White
With Green/Yellow core
Yes
Conductor material
Copper
Insulation
PVC
Outer sheath
PVC
Conductor flexibility
Class 2
Conductor shape
Circular
Core identification
Red, Black, Green/Yellow
Type of conductor
Circular, stranded
Wire colour
-
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
6 mm²
Earth conductor cross section
2.5 mm²
Nominal overall diameter
6.9 x 16.4
Approximate weight
0.27 kg/m
Neutral conductor section (when smaller)
- mm²
Nominal overall diameter
- mm
Number of cores
2
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C (Ohm/km)
3.08
Rated Voltage Uo/U
450/750 V
Rated Voltage Uo/U (Um)
450/750 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Max. conductor temperature in service
75 °C
Resources
Resources
Current carrying capacities single phase (in Amps) - TPS - 2 cores and 2 cores plus earth
PVC insulation For cables up to and including 450/750 V @ 50 Hz AC.| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 6.0 | 52 | 50 | 44 | 55 | 55 | 25 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation unenclosed |
Selling & delivery Information

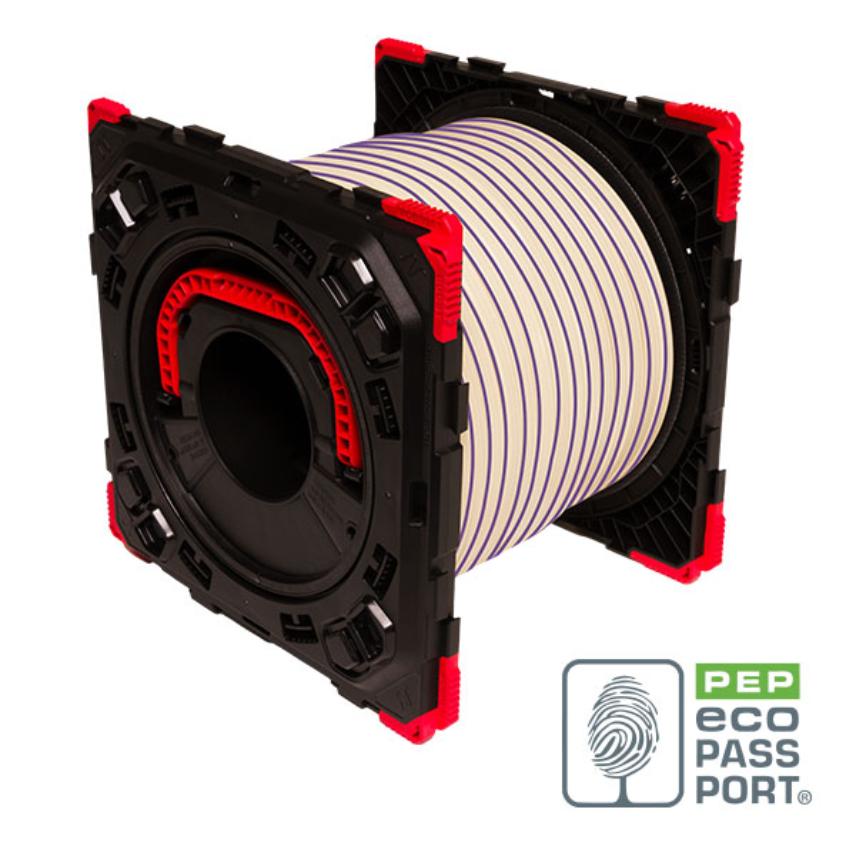

Cable PEP/EPD available
