CURRENT - 2C+E TPS
CURRENT - 2C+E TPS
Cu conductors PVC insulation, PVC sheath. 450/750 V. Made to AS/NZS 5000.2
Read moreCU TPS 2X 1.0+E WH 1HM
Nexans ref. CNZP02A1002WVHF - Country ref. 9779.1

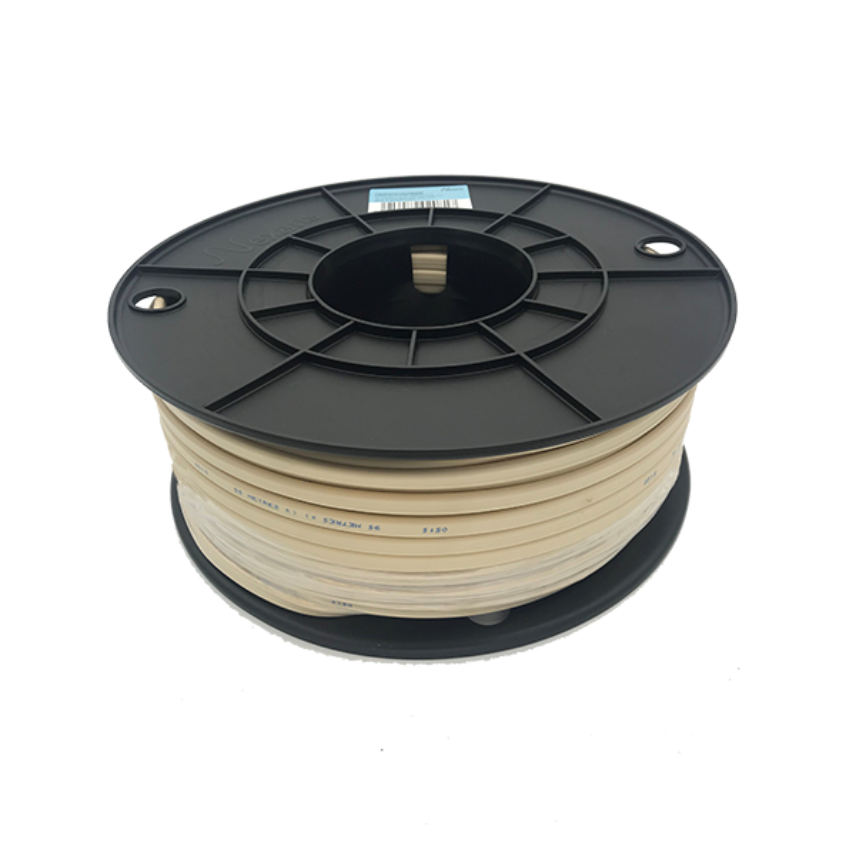

- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 1 mm²
- Earth conductor cross section: 1 mm²
- Nominal overall diameter: 4.0 x 8.6
- Approximate weight: 0.07 kg/m
CU TPS 2X 1.0+E WH 2HM
Nexans ref. CNZP02A2002WVHF - Country ref. 9779.2
- Packaging: Spool (200m)
- Sheath colour: White
- Conductor cross-section: 1 mm²
- Earth conductor cross section: 1 mm²
- Nominal overall diameter: 4.0 x 8.6
- Approximate weight: 0.07 kg/m
CU TPS 2X 1.0+E WH 5HM
Nexans ref. CNZP02A5002WVHF - Country ref. 9779.5
- Packaging: Spool (500m)
- Sheath colour: White
- Conductor cross-section: 1 mm²
- Earth conductor cross section: 1 mm²
- Nominal overall diameter: 4.0 x 8.6
- Approximate weight: 0.07 kg/m
CU TPS 2X 1.5+E WH 1HM
Nexans ref. CNZQ05A1002WVHF - Country ref. 2521.1
- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 4.7 x 10.2
- Approximate weight: 0.09 kg/m
CU TPS 2X 1.5+E WH 2HM
Nexans ref. CNZQ05A2002WVHF - Country ref. 2521.2
- Packaging: Spool (200m)
- Sheath colour: White
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 4.7 x 10.2
- Approximate weight: 0.09 kg/m
CU TPS 2X 1.5+E WH 5HM
Nexans ref. CNZQ05A5002WVHF - Country ref. 2521.5
- Packaging: Spool (500m)
- Sheath colour: White
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 4.7 x 10.2
- Approximate weight: 0.09 kg/m
CU TPS 2X 2.5+E WH 1HM
Nexans ref. CNZP07A1002WVHF - Country ref. 1080.1
- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 5.3 x 12.0
- Approximate weight: 0.14 kg/m
CU TPS 2X 2.5+E WH 2HM
Nexans ref. CNZP07A2002WVHF - Country ref. 1080.2
- Packaging: Spool (200m)
- Sheath colour: White
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 5.3 x 12.0
- Approximate weight: 0.14 kg/m
CU TPS 2X 2.5+E WH 5HM
Nexans ref. CNZP07A5002WVHF - Country ref. 1080.5
- Packaging: Spool (500m)
- Sheath colour: White
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 5.3 x 12.0
- Approximate weight: 0.14 kg/m
CU TPS 2X 4+2.5E WH 1HM
Nexans ref. CNZP09A1002WVHF - Country ref. 6646.1
- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.4 x 14.8
- Approximate weight: 0.19 kg/m
CU TPS 2X 4+2.5E WH 2HM
Nexans ref. CNZP09A2002WVHF - Country ref. 6646.2
- Packaging: Spool (200m)
- Sheath colour: White
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.4 x 14.8
- Approximate weight: 0.19 kg/m
CU TPS 2X 4+2.5E WH 5HM
Nexans ref. CNZP09A5002WVHF - Country ref. 6646.5
- Packaging: Spool (500m)
- Sheath colour: White
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.4 x 14.8
- Approximate weight: 0.19 kg/m
CU TPS 2X 6+E WH 1HM
Nexans ref. CNZP11AA002WVHF - Country ref. 3146.1
- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.9 x 16.4
- Approximate weight: 0.27 kg/m
CU TPS 2X 6+2.5E WH 2HM
Nexans ref. CNCP11A2002WVHF - Country ref. 3146.2
- Packaging: Spool (200m)
- Sheath colour: White
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.9 x 16.4
- Approximate weight: 0.27 kg/m
CU TPS 2X 6+2.5E WH 5HM
Nexans ref. CNCP11A5002WVHF - Country ref. 3146.5
- Packaging: Spool (500m)
- Sheath colour: White
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.9 x 16.4
- Approximate weight: 0.27 kg/m
CU TPS 2X 10+4E WH
Nexans ref. CNZP13EC002WVHF - Country ref. 4121
- Packaging: Cut to length (m)
- Sheath colour: White
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Nominal overall diameter: 8.5 x 20.4
- Approximate weight: 0.42 kg/m
CU TPS 2X 10+4E WH 1HM
Nexans ref. CNZP13A1002WVHF - Country ref. 4121.1
- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Nominal overall diameter: 8.5 x 20.4
- Approximate weight: 0.42 kg/m
CU TPS 2X 10+4E WH 5HM
Nexans ref. CNZP13A5002WVHF - Country ref. 4121.5
- Packaging: Spool (500m)
- Sheath colour: White
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Nominal overall diameter: 8.5 x 20.4
- Approximate weight: 0.42 kg/m
CU TPS 2X 16+6E BK
Nexans ref. CNZP15AA002CXHF - Country ref. 6565
- Packaging: Cut to length (m)
- Sheath colour: Black
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter: 9.9 x 24.3
- Approximate weight: 0.63 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.2

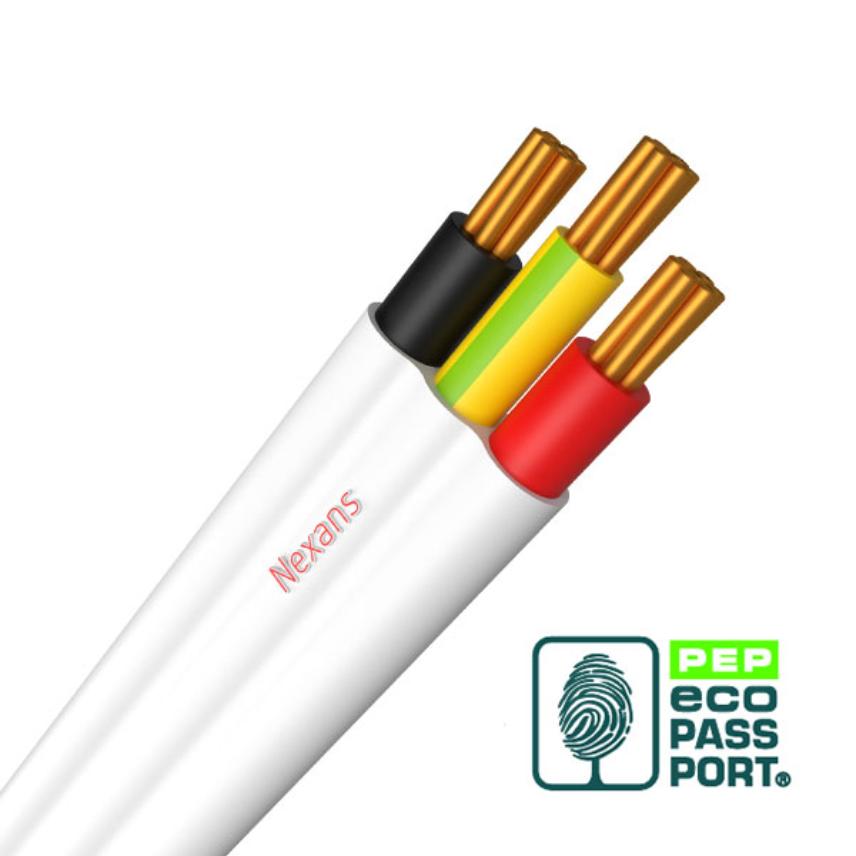

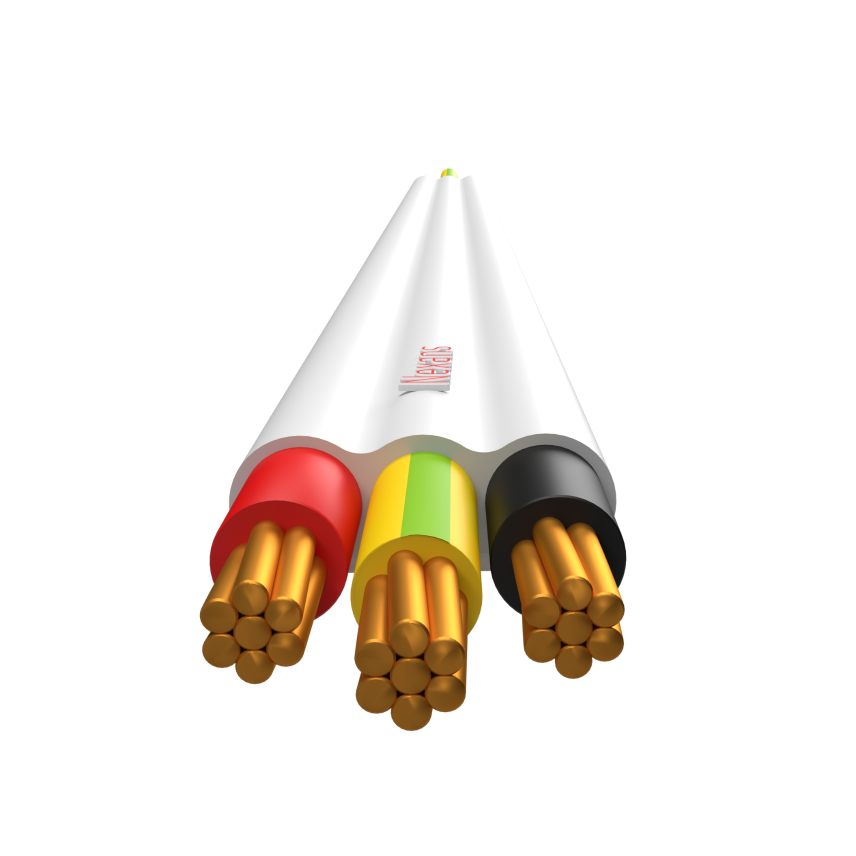

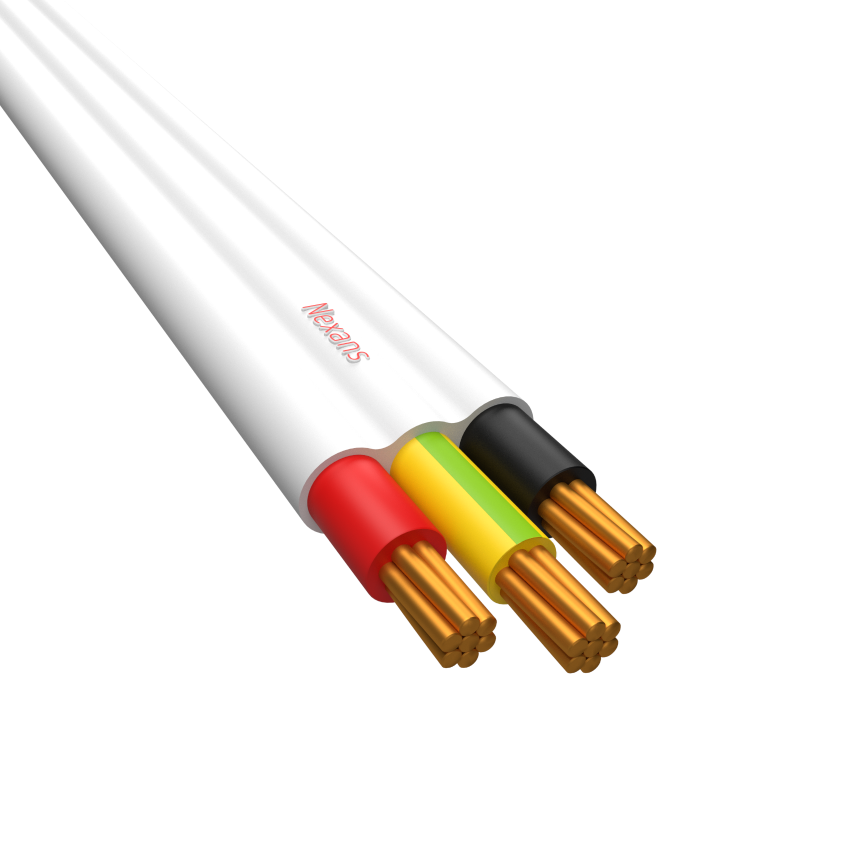

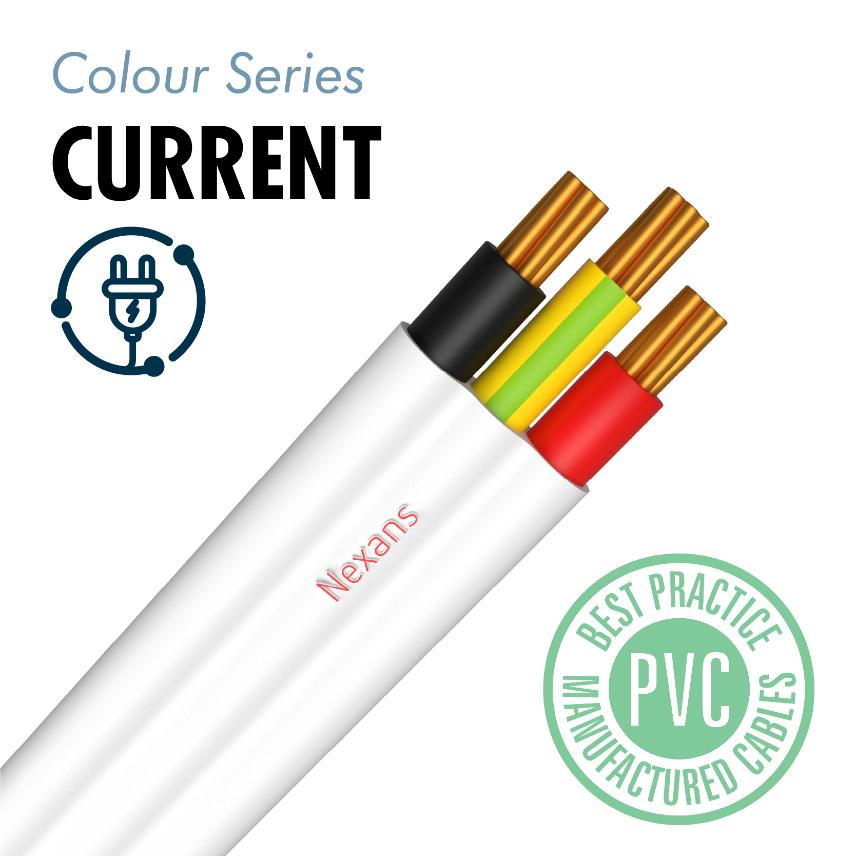

CURRENT is a two core and earth cable (twin and earth) designed for general purpose power and lighting applications. The classic white sheath is easy to strip and install, making this staple electrical cable our top seller.
Applications:
- General application: domestic, commercial, industrial
- Fixed applications
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Current carrying capacities single phase (in Amps) - TPS - 2 cores and 2 cores plus earth
PVC insulation
For cables up to and including 450/750 V @ 50 Hz AC.
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 17 | 16 | 15 | 19 | 19 | 8 |
| 1.5 | 22 | 21 | 18 | 23 | 23 | 10 |
| 2.5 | 31 | 30 | 26 | 33 | 33 | 15 |
| 4.0 | 42 | 39 | 34 | 43 | 43 | 19 |
| 6.0 | 52 | 50 | 44 | 55 | 55 | 25 |
| 10.0 | 73 | 68 | 59 | 73 | 73 | 34 |
| 16.0 | 97 | 91 | 78 | 125 | 95 | 46 |
| 25.0 | 129 | 122 | 103 | 162 | 123 | 60 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation unenclosed |
Selling & delivery Information
PEP and EPD available
