ENVIROLEX® Flexible Multicore 90°C
ENVIROLEX® Flexible Multicore 90°C
ENVIROLEX
Multicore flexible copper conductor, 0.6/1kV X-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.1
Read moreCU ENVIRO RHE-1-FLEX 3X 1.5+E OG
Nexans ref. FTHR04HF003OMRJ - Country ref. 1017
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Approximate weight: 17.8 kg/100m
- Nominal overall diameter: 11.5 mm
CU ENVIRO RHE-1-FLEX 4X 1.5+E OG
Nexans ref. HTHR04HF004OMEM - Country ref. 9501
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 1.5 mm²
- Number of cores: 4
- Approximate weight: 21.0 kg/100m
- Nominal overall diameter: 12.5 mm
CU ENVIRO RHE-1-FLEX 2X 1.5+E OG
Nexans ref. DTHR04HF002OMHF - Country ref. 9613
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 1.5 mm²
- Number of cores: 2
- Approximate weight: 15.0 kg/100m
- Nominal overall diameter: 10.7 mm
CU ENVIRO RHE-1-FLEX 2X 2.5+E OG
Nexans ref. DTHR05HF002OMHF - Country ref. 8293
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 2.5 mm²
- Number of cores: 2
- Approximate weight: 19.2 kg/100m
- Nominal overall diameter: 11.6 mm
CU ENVIRO RHE-1-FLEX 3X 2.5+E OG
Nexans ref. FTHR05HF003OMRJ - Country ref. 6257
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Approximate weight: 23.1 kg/100m
- Nominal overall diameter: 12.5 mm
CU ENVIRO RHE-1-FLEX 4X 2.5+E OG
Nexans ref. HTHR05HF004OMEM - Country ref. 7956
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 2.5 mm²
- Number of cores: 4
- Approximate weight: 27.5 kg/100m
- Nominal overall diameter: 13.6 mm
CU ENVIRO RHE-1-FLEX 2X 4+2.5E OG
Nexans ref. DTHR06HF002OMHF - Country ref. 8340
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 4 mm²
- Number of cores: 2
- Approximate weight: 24.1 kg/100m
- Nominal overall diameter: 12.9 mm
CU ENVIRO RHE-1-FLEX 3X 4+2.5E OG
Nexans ref. FTHR06HF003OMRJ - Country ref. 1202
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 4 mm²
- Number of cores: 3
- Approximate weight: 27.7 kg/100m
- Nominal overall diameter: 13.8 mm
CU ENVIRO RHE-1-FLEX 4X 4+2.5E OG
Nexans ref. HTHR06HF004OMEM - Country ref. 7524
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 4 mm²
- Number of cores: 4
- Approximate weight: 33.5 kg/100m
- Nominal overall diameter: 15.0 mm
CU ENVIRO RHE-1-FLEX 3X 6+2.5E OG
Nexans ref. FTHR07HF003OMRJ - Country ref. 2611
- Packaging: Cut to length (m)
- Conductor flexibility: Class 5
- Conductor cross-section: 6 mm²
- Number of cores: 3
- Approximate weight: 35.3 kg/100m
- Nominal overall diameter: 14.9 mm
CU ENVIRO RHE-1-FLEX 4X 6+2.5E OG
Nexans ref. HTHR07HF004OMEM - Country ref. 4320
- Packaging: Cut to length (m)
- Conductor flexibility: Class 5
- Conductor cross-section: 6 mm²
- Number of cores: 4
- Approximate weight: 42.3 kg/100m
- Nominal overall diameter: 16.2 mm
CU ENVIRO RHE-1-FLEX 2X 6+2.5E OG
Nexans ref. DTHR07HF002OMHF - Country ref. 9893
- Packaging: Cut to length (m)
- Conductor flexibility: Class 5
- Conductor cross-section: 6 mm²
- Number of cores: 2
- Approximate weight: 30.4 kg/100m
- Nominal overall diameter: 13.6 mm
CU ENVIRO RHE-1-FLEX 3X 10+4E OG
Nexans ref. FTHX01HF003OMRJ - Country ref. 4662
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 10 mm²
- Number of cores: 3
- Approximate weight: 51.9 kg/100m
- Nominal overall diameter: 17.7 mm
CU ENVIRO RHE-1-FLEX 4X 10+4E OG
Nexans ref. HTHX01HF004OMEM - Country ref. 5670
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 10 mm²
- Number of cores: 4
- Approximate weight: 51.9 kg/100m
- Nominal overall diameter: 17.7 mm
CU ENVIRO RHE-1-FLEX 4X 16+6E OG
Nexans ref. HTHX02HF004OMEM - Country ref. 8926
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 16 mm²
- Number of cores: 4
- Approximate weight: 89.4 kg/100m
- Nominal overall diameter: 22.8 mm
CU ENVIRO RHE-1-FLEX 4X 25+6E OG
Nexans ref. HTHX03HF004OMEM - Country ref. 3338
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 25 mm²
- Number of cores: 4
- Approximate weight: 130.3 kg/100m
- Nominal overall diameter: 26.5 mm
CU ENVIRO RHE-1-FLEX 4X 35+10E OG
Nexans ref. HTHX04HF004OMEM - Country ref. 7099
- Packaging: Cut to length (m)
- Conductor flexibility: Class 2
- Conductor cross-section: 35 mm²
- Number of cores: 4
- Approximate weight: 176.6 kg/100m
- Nominal overall diameter: 29.8 mm
Description
Description
Standards
-
ProductAS/NZS 5000.1
-
TestIEC 60332-1; IEC 60754-1
ENVIROLEX® flexible multicore cable is part of the Nexans Fire Safety Offer. As a Low Fire Hazard (LFH) range, ENVIROLEX® is PVC-free, made with flame retardant compound and reduces toxic smoke emissions in the event of fire, allowing time for safe evacuation.
- Class 5 flexible conductor
- 0.6/1kV cables,
- Flexible, X-90 insulated
- HFS-90-TP sheathed to AS/NZS 5000.1 (Power)
- 90°C continuous
- Submersible to 500m
- Used for fixed application
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Fire safety characteristics
Fire safety characteristics
Resources
Resources
Documentation
Current carrying capacity tables - Envirolex multicore single phase
Flexible Copper Conductor
Circular stranded
Insulation X-HF-90
Max. Conductor Temperature 90⁰C
| Conductor cross-section |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.5 | 26 | 25 | 22 | 26 | 27 | 12 | 34.7 |
| 2.5 | 35 | 33 | 30 | 36 | 35 | 18 | 25.4 |
| 4.0 | 47 | 44 | 39 | 48 | 46 | 23 | 11.8 |
| 6.0 | 61 | 56 | 48 | 60 | 58 | 30 | 7.87 |
|
Air spaced from surface, unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
|
Voltage Drop Three Phase (mV/A.m) |
Current carrying capacity table - Envirolex-Multicore (Three Phase)
Flexible Copper Conductor
Circular stranded
Insulation X-HF-90
Max. Conductor Temperature 90⁰C
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.5 | 22 | 21 | 10 | 22 | 21 | 22 |
| 2.5 | 30 | 29 | 14 | 30 | 31 | 30 |
| 4.0 | 40 | 37 | 20 | 39 | 40 | 39 |
| 6.0 | 51 | 47 | 24 | 48 | 49 | 48 |
| 10.0 | 73 | 67 | 34 | 66 | 67 | 66 |
| 16.0 | 96 | 89 | 45 | 85 | 118 | 85 |
| 25.0 | 128 | 119 | 62 | 110 | 153 | 110 |
| 35.0 | 158 | 149 | 76 | 136 | 184 | 136 |
|
Air spaced from surface, unenclosed |
|
Air touching, unenclosed |
|
Cable surrounded by thermal insulation, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
Selling & delivery Information

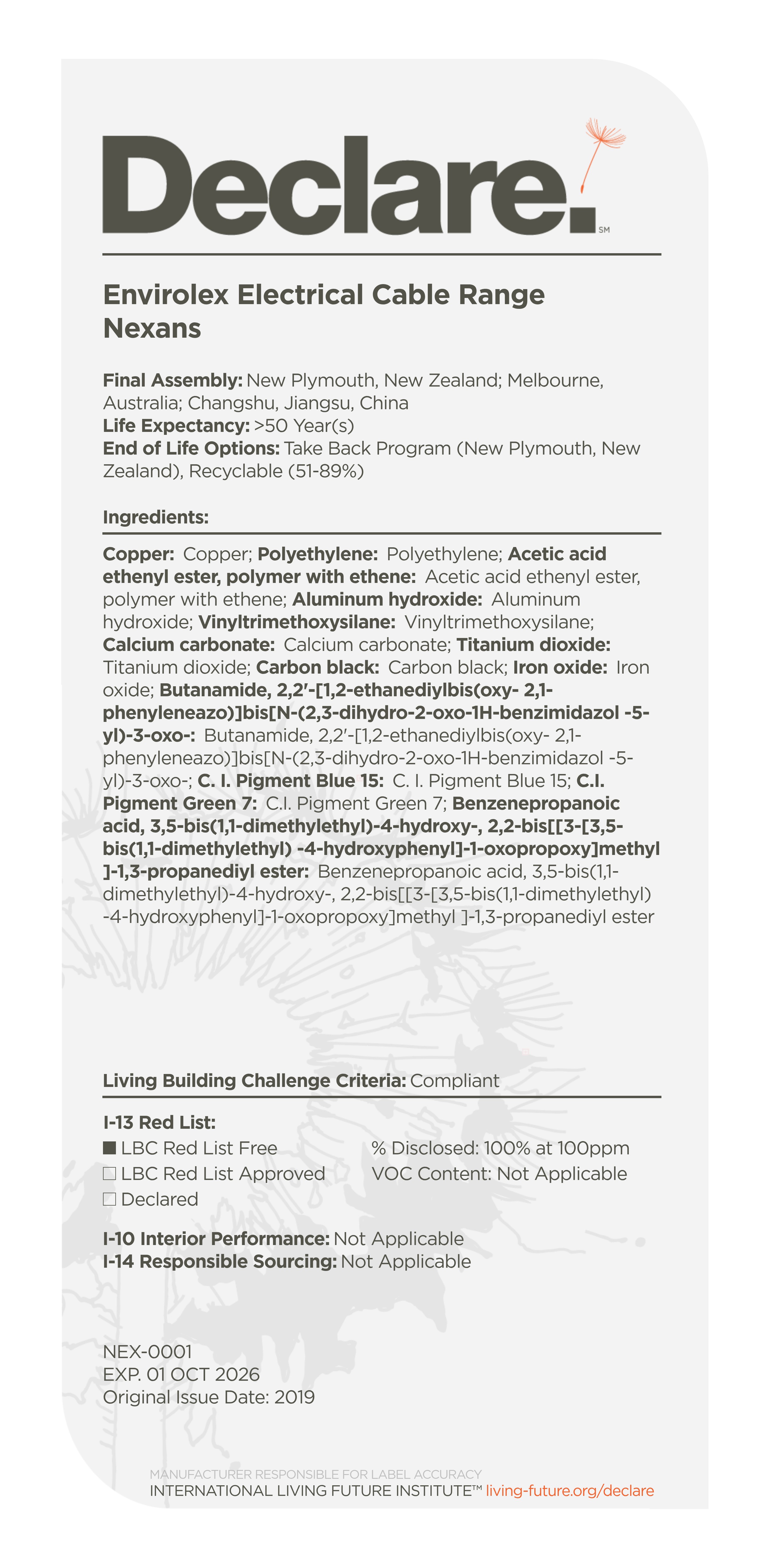

Nexans Fire Safety Offer ENVIROLEX® Low Fire Hazard Cables PVC-free Red List Free and Declare Labelled Green Star Flexible conductor
