ENVIROLEX® Flat (Low Fire Hazard, Non-migratory)
ENVIROLEX® Flat (Low Fire Hazard, Non-migratory)

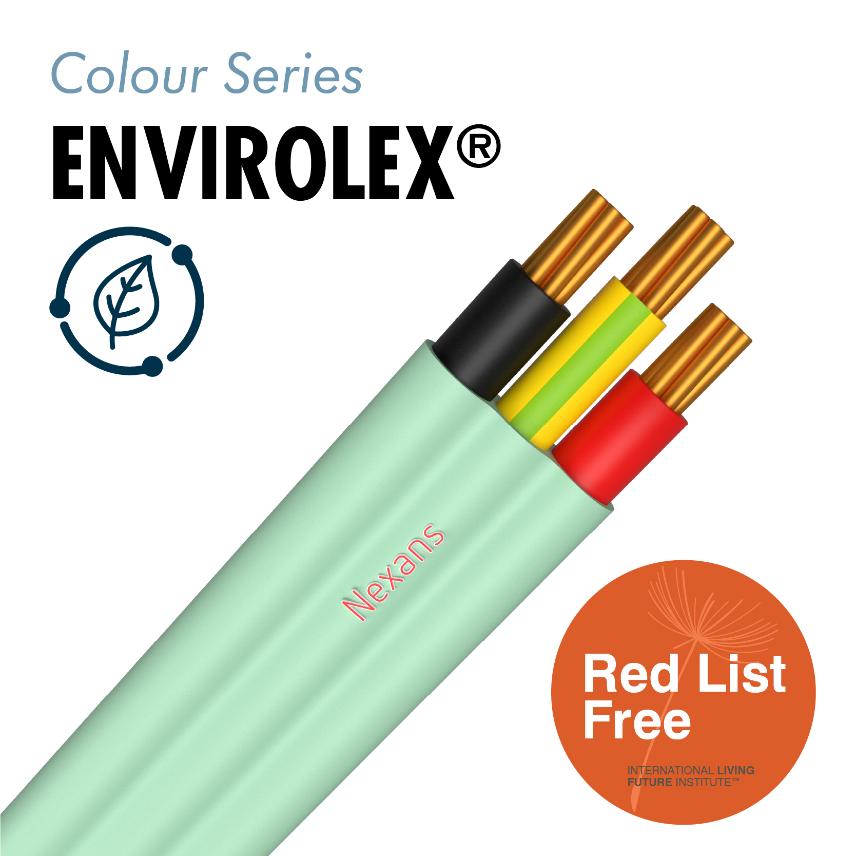

ENVIROLEX

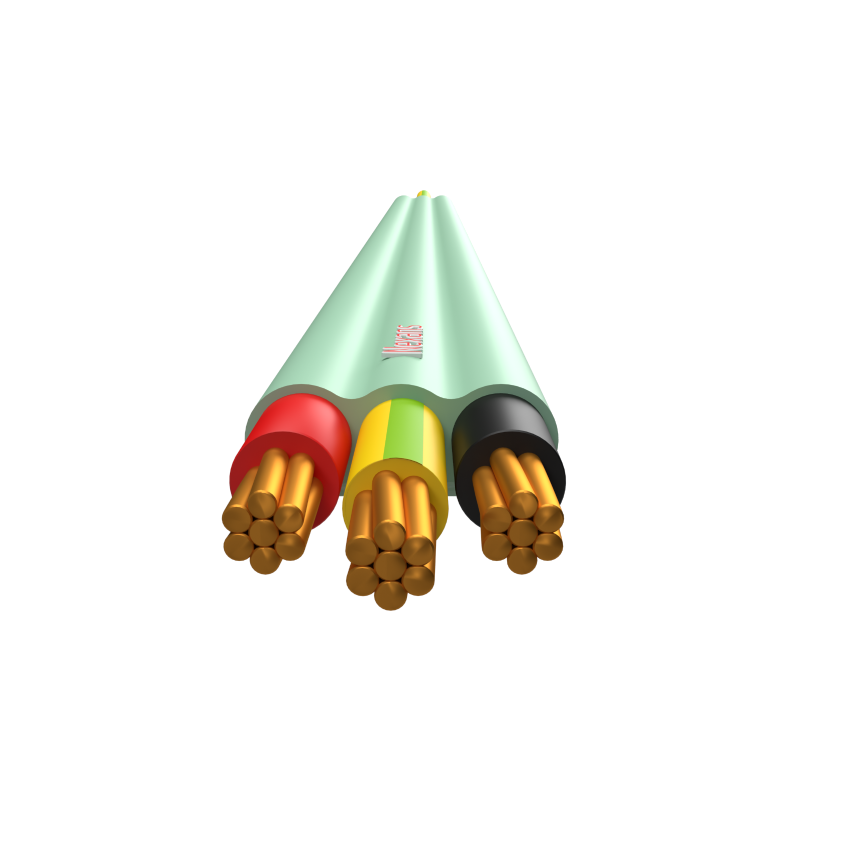

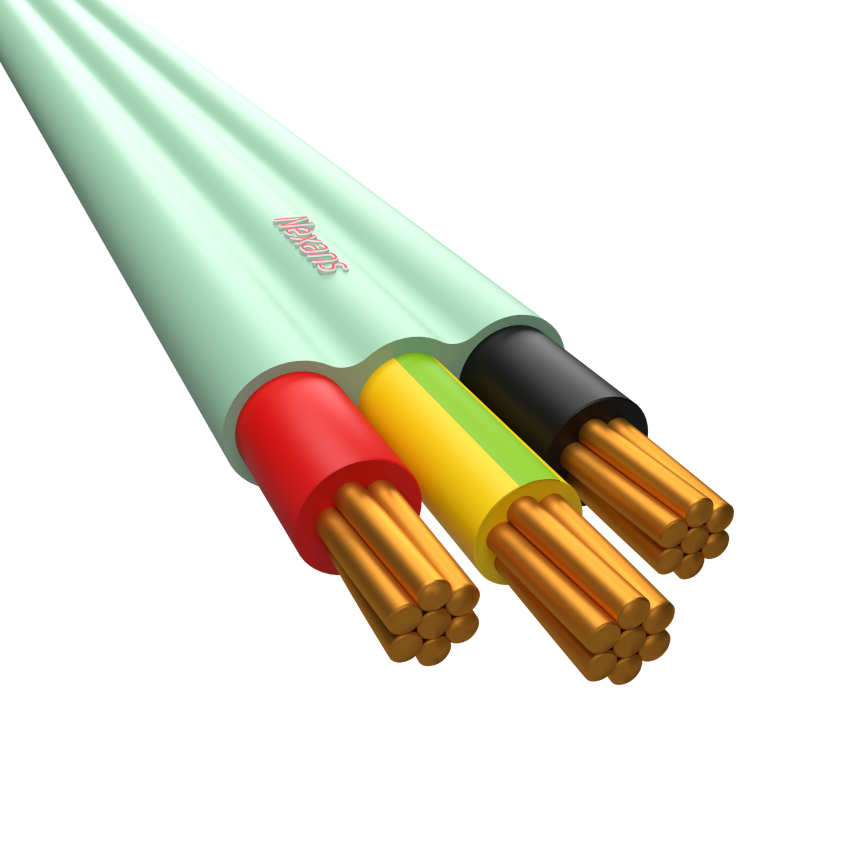

Cu conductors, X-90 insulation, Green HFS-90-TP sheath. 450/750 V. Made to AS/NZS 5000.2
Read moreCU TPS RHE-1 2X 4+E ENVIRO LTGN 5HM
Nexans ref. CTCP09J5002GGHF - Country ref. 3334.5

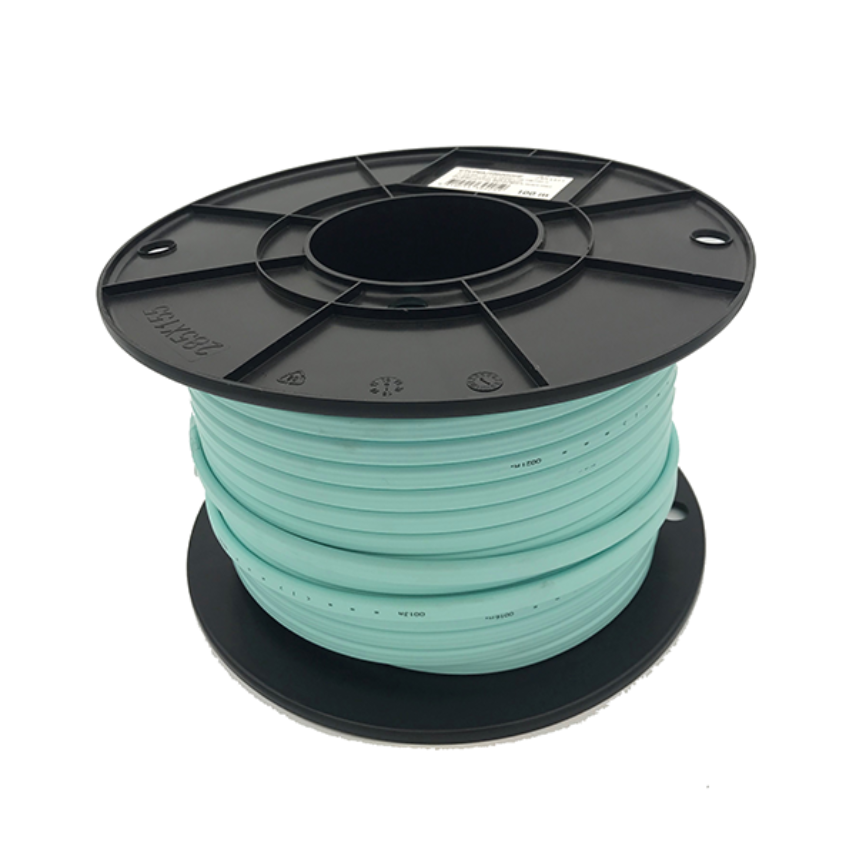

- Packaging: Spool (500m)
- With Green/Yellow core: Yes
- Number of cores: 2
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 13.4 x 6.2
- Approximate weight: 0.15 kg/m
CU TPS RHE-1 2X 1.5+E ENVIRO LTGN 1HM
Nexans ref. CTCP05J1002GGHF - Country ref. 1462.1
- Packaging: Spool (100m)
- With Green/Yellow core: Yes
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 10.0 x 4.6
- Approximate weight: 0.07 kg/m
CU TPS RHE-1 2X 1.5+E ENVIRO LTGN 5HM
Nexans ref. CTCP05J5002GGHF - Country ref. 1462.5
- Packaging: Spool (500m)
- With Green/Yellow core: Yes
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 10.0 x 4.6
- Approximate weight: 0.07 kg/m
CU TPS RHE-1 2X 2.5+E ENVIRO LTGN 1HM
Nexans ref. CTCP07J1002GGHF - Country ref. 6724.1
- Packaging: Spool (100m)
- With Green/Yellow core: Yes
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 11.7 x 5.3
- Approximate weight: 0.11 kg/m
CU TPS RHE-1 2X 2.5+E ENVIRO LTGN 5HM
Nexans ref. CTCP07J5002GGHF - Country ref. 6724.5
- Packaging: Spool (500m)
- With Green/Yellow core: Yes
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 11.7 x 5.3
- Approximate weight: 0.11 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.2
-
TestIEC 60332-1-2; IEC 60754-1
Application
- Low Fire Hazard (LFH)
- For general power and lighting construction purposes with higher fire performance capability.
- Domestic, commercial and industrial applications.
- Suitable for "green" building installations and projects.
- Fixed applications.
- This product is non-migratory. It can be in contact with other plastic compounds such as polyester and polystyrene without any adverse effects.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Outer sheath
HFS-90-TP
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
450/750 V
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Minimum operating temperature
-25 °C
Smoke density
-
Resources
Resources
Current carrying capacities single phase (in Amps) - Envirolex, Two Core Plus Earth
Copper conductor - Flexible Copper Construction
Insulation X-HF-90
Max. Conductor Temperature 90⁰C
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
Conductor cross-section 1.5 |
|
|
|
|
|
|
Conductor cross-section 2.5 |
|
|
|
|
|
|
Conductor cross-section 4.0 |
|
|
|
|
|
|
Conductor cross-section 6.0 |
|
|
|
|
|
|
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
Selling & delivery Information
Nexans Fire Safety Offer ENVIROLEX® Flat, Low Fire Hazard Cables PVC-free Red List Free and Declare Labelled Green Star
