Cempex Cables
Cempex Cables

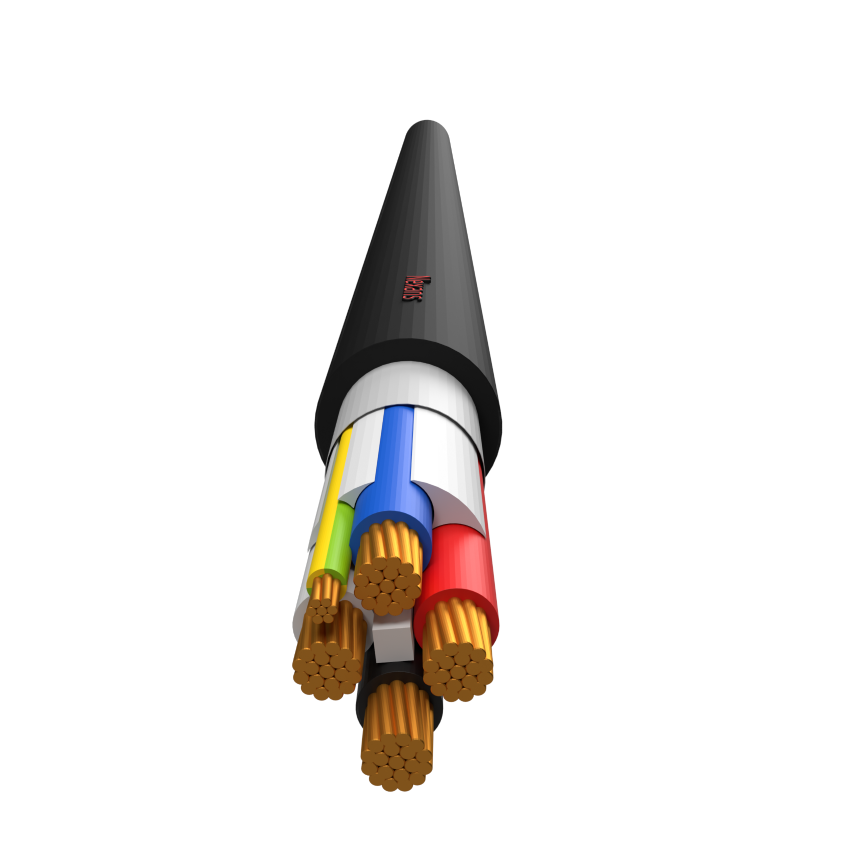

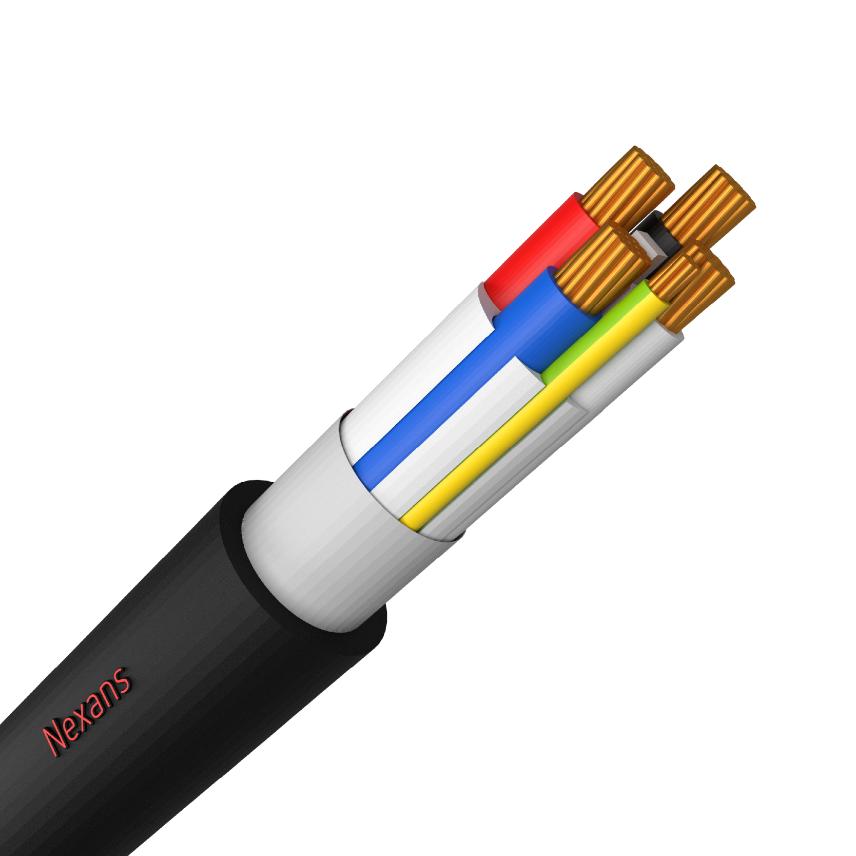

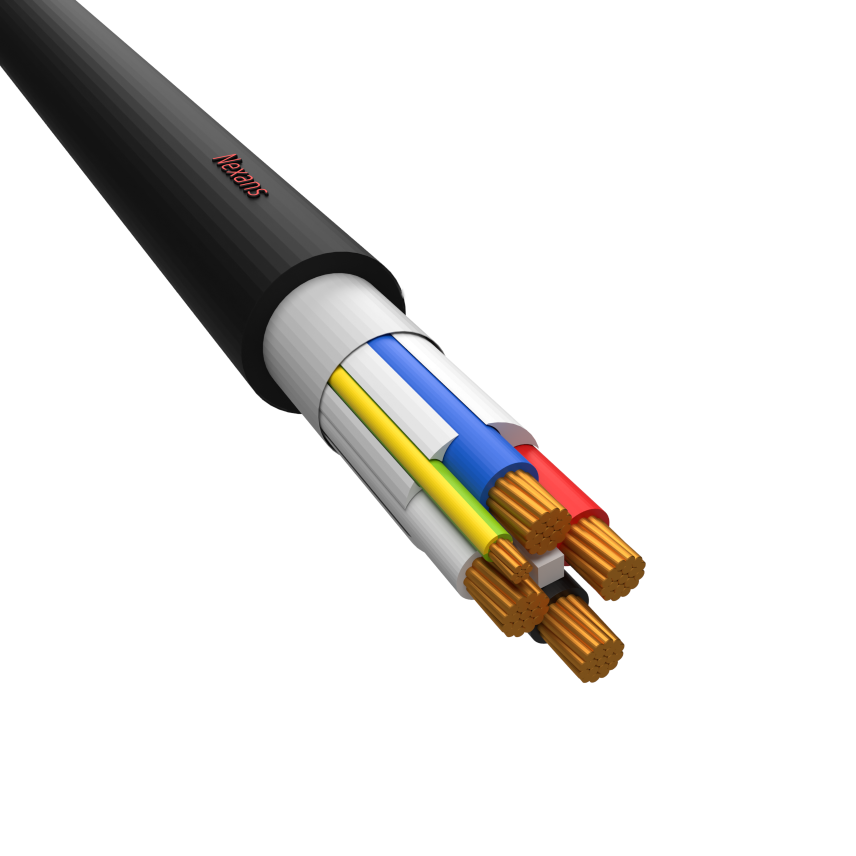

Cu Conductors, XLPE insulation, Laid up, Black PVC sheath, 0.6/1 kV. Made to AS/NZS 5000.1. Circular multicore with integral earth.
Read moreMC XL 2X10E CU PVC BK
Nexans ref. DTHP13AA002CXHF - Country ref. 8147
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 3
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Nominal overall diameter: 14.8 mm
- Approximate weight: 0.391 kg/m
MC XL 2X16E CU PVC BK
Nexans ref. DTHP15AA002CXHF - Country ref. 1751
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter: 17.0 mm
- Approximate weight: 0.515 kg/m
MC XL 2X25E CU PVC BK
Nexans ref. DTHC17AA002CXHF - Country ref. 4427
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter: 20.0 mm
- Approximate weight: 0.738 kg/m
MC XL 3X 10E CU PVC BK
Nexans ref. FTHP13AA003CXRJ - Country ref. 3855
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Nominal overall diameter: 16.2 mm
- Approximate weight: 0.5 kg/m
MC XL 3X 16E CU PVC BK
Nexans ref. FTHP15AA003CXRJ - Country ref. 5070
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter: 18.6 mm
- Approximate weight: 0.68 kg/m
MC XL 3X 25E CU PVC BK
Nexans ref. FTHC17AA003CXRJ - Country ref. 1701
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter: 21.6 mm
- Approximate weight: 1.01 kg/m
MC XL 3X 35E CU PVC BK
Nexans ref. FTHC38AA003CXRJ - Country ref. 5200
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Earth conductor cross section: 10 mm²
- Nominal overall diameter: 24.1 mm
- Approximate weight: 1.37 kg/m
MC XL 3X 50E CU PVC BK
Nexans ref. FTHC19AA003CXRJ - Country ref. 6560
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Earth conductor cross section: 16 mm²
- Nominal overall diameter: 27.2 mm
- Approximate weight: 1.82 kg/m
MC XL 4X 10E CU PVC BK
Nexans ref. HTHP13AA004CXEM - Country ref. 2658
- Packaging: Cut to length (m)
- Type of conductor: Circular, stranded
- Number of cores: 5
- Conductor cross-section: 10 mm²
- Earth conductor cross section: 4 mm²
- Nominal overall diameter: 19.2 mm
- Approximate weight: 0.66 kg/m
MC XL 4X 16E CU PVC BK
Nexans ref. HTHP15AA004CXEM - Country ref. 7656
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 5
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter: 21.5 mm
- Approximate weight: 0.9 kg/m
MC XL 4X 16E CU PVC BK 250M
Nexans ref. HTHP15A3004CXEM - Country ref. 7656.25
- Type of conductor: Circular compacted stranded
- Number of cores: 5
- Conductor cross-section: 16 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter: 21.5 mm
- Approximate weight: 0.9 kg/m
MC XL 4X 25E CU PVC BK
Nexans ref. HTHC17AA004CXEM - Country ref. 5243
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 5
- Conductor cross-section: 25 mm²
- Earth conductor cross section: 6 mm²
- Nominal overall diameter: 23.9 mm
- Approximate weight: 1.29 kg/m
MC XL 4X 35E CU PVC BK
Nexans ref. HTHC18AA004CXEM - Country ref. 2230
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 5
- Conductor cross-section: 35 mm²
- Earth conductor cross section: 10 mm²
- Nominal overall diameter: 26.8 mm
- Approximate weight: 1.74 kg/m
MC XL 4X 50E CU PVC BK
Nexans ref. HTHC19AA004CXEM - Country ref. 2403
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 5
- Conductor cross-section: 50 mm²
- Earth conductor cross section: 16 mm²
- Nominal overall diameter: 30.3 mm
- Approximate weight: 2.32 kg/m
MC XL 4X 70E CU PVC BK
Nexans ref. HTHC20AA004CXEM - Country ref. 2060
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 5
- Conductor cross-section: 70 mm²
- Earth conductor cross section: 25 mm²
- Nominal overall diameter: 34.9 mm
- Approximate weight: 3.2 kg/m
MC XL 4X 95E CU PVC BK
Nexans ref. HTHC21AA004CXEM - Country ref. 7214
- Packaging: Cut to length (m)
- Type of conductor: Circular compacted stranded
- Number of cores: 5
- Conductor cross-section: 95 mm²
- Earth conductor cross section: 25 mm²
- Nominal overall diameter: 39.1 mm
- Approximate weight: 4.36 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.1
Description
Discover the next level of electrical efficiency with our Cempex Cables. Engineered for seamless installation and superior conductivity, it’s the perfect choice for modern electrical wiring needs. Embrace reliability and innovation in every connection with our high-quality, durable cable solution.
- Copper conductor
- Class 2 conductor flexibility
- PVC sheathed
- XLPE insulated
- 0.6/ 1 (1.2) kV
Application
- Industrial, commercial and domestic applications.
- For use in various situations to supply the main power from the point of supply to buildings, equipment, sheds, eg, switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc.
Installation
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
XLPE
Outer sheath
PVC
Conductor flexibility
Class 2
Conductor shape
Circular
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
U.V resistance
Yes
Resources
Resources
Documentation
Supplier Declaration of Conformity (SDoC) - Cempex
pdf — 185.7 kB
Current carrying capacities three phase (in Amps) - 3 -4 core Plus Earth Cu Cempex cables
Copper Conductor
Circular stranded
Insulation XLPE
Max. Conductor Temperature 90⁰C
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 10.0 | 73 | 68 | 58 | 67 | 67 | 34 |
| 16.0 | 97 | 91 | 75 | 118 | 87 | 45 |
| 25.0 | 131 | 122 | 100 | 153 | 114 | 62 |
| 35.0 | 162 | 151 | 125 | 184 | 139 | 76 |
| 50.0 | 198 | 185 | 150 | 218 | 166 | 0 |
| 70.0 | 252 | 234 | 190 | 269 | 207 | 0 |
| 95.0 | 311 | 289 | 230 | 323 | 249 | 0 |
|
Air spaced from surface, unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
