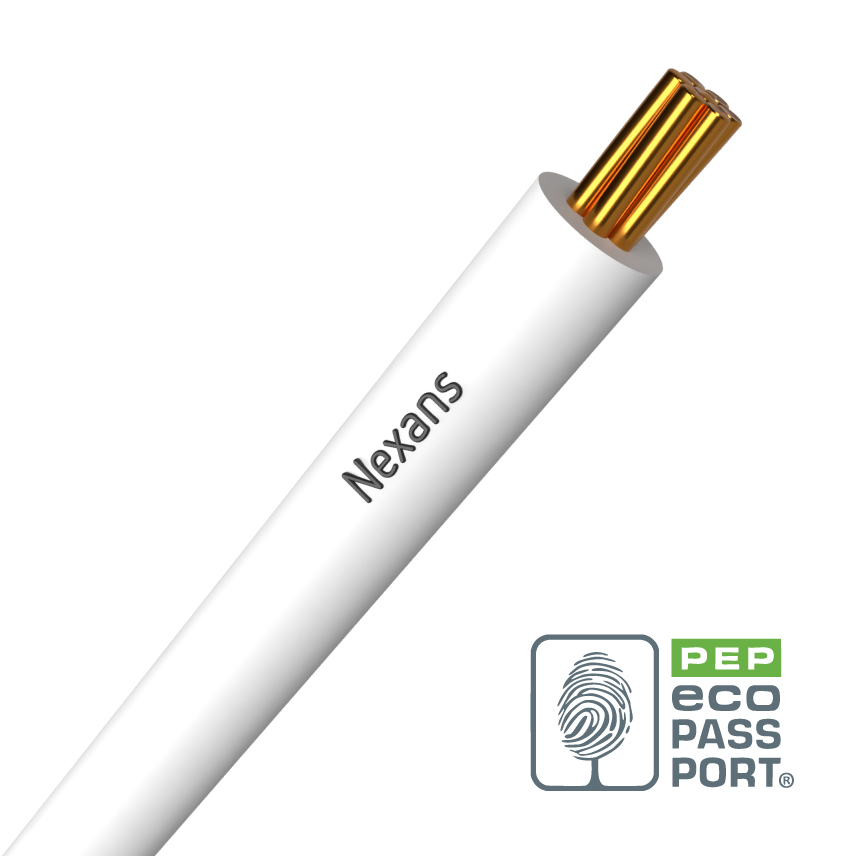

CU CONDUIT 2.5 WH V90 1HM
CU CONDUIT 2.5 WH V90 1HM
Cu conductor, PVC insulation. 0.6/1 kV. Made to AS/NZS 5000.1.
Read more- Nexans ref. : BAAP07A1001AAWT
- Country ref. : 4732.1
- EAN : 9319215007003
Description
Description
Standards
-
NationalAS/NZS 5000.1
Application
- Industrial, commercial and domestic applications
- The wiring of switch boards and control panels
- Earth wiring in houses
- Wiring where the conduit wire is run inside a protective enclosure (plastic or metal conduits)
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White
Insulating material
PVC
Type of conductor
Circular, stranded
Conductor material
Copper
Insulation
V-90
Conductor flexibility
Class 2
Conductor shape
Circular
With Green/Yellow core
No
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
2.5 mm²
Nominal overall diameter
3.8 mm
Approximate weight
0.03 kg/m
Neutral conductor section (when smaller)
- mm²
Number of cores
1
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
7.41 Ohm/km
Permissible short circuit current conductor 1s
- kA
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Resources
Resources
Documentation
Supplier Declaration of Conformity (SDoC) - Conduit
pdf — 191.6 kB
Current carrying capacities single phase (in Amps) - Conduit wires
Copper conductor Circular stranded (except 1 mm² which is solid) Insulation PVC Max. Conductor Temperature 75⁰CConductor cross-section | |
---|---|
mm² | Cu |
2.5 | 27 |
Air enclosed |
Current carrying capacities three phase (in Amps) - Conduit wires
Copper conductor Circular stranded (except 1 mm² which is solid) Insulation PVC Max. Conductor Temperature 75⁰CConductor cross-section | |
---|---|
mm² | Cu |
2.5 | 24 |
Air enclosed |
