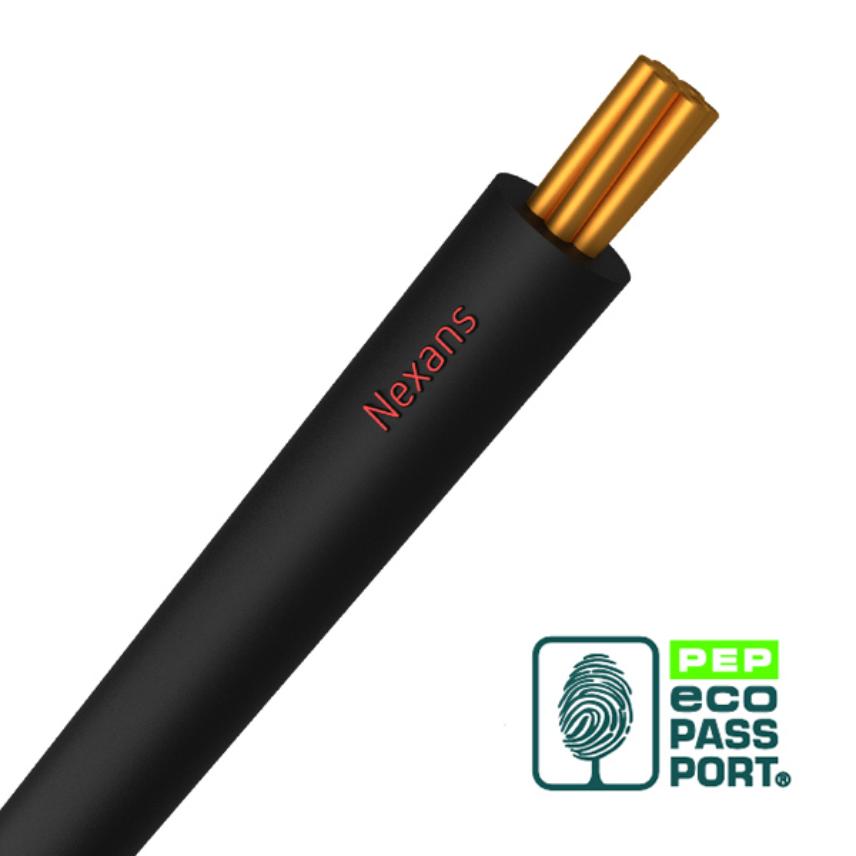

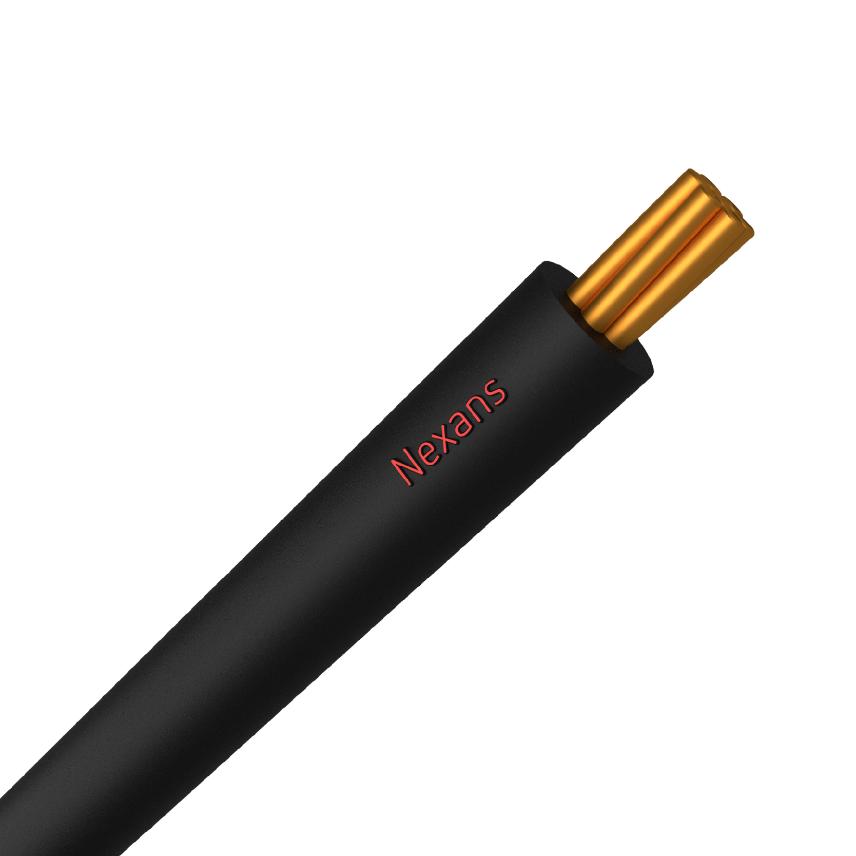

Cu conductor, PVC insulation. 0.6/1 kV. Made to AS/NZS 5000.1.

Read more
Download all documents
Contact us

Products

Actions
Filters

  • products

CU CONDUIT 6 GNYE V75 5HM

Nexans ref. BAAP11A5001AAHN - Country ref. 6112.5

  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 5.3 mm
  • Approximate weight: 0.08 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 16 GNYE V75 1HM

Nexans ref. BAAP15A1001AAHN - Country ref. 4462.1

  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 7.3 mm
  • Approximate weight: 0.18 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 16 WH V75 1HM

Nexans ref. BAAP15A1001AAWT - Country ref. 3114.1

  • Colour: White
  • Insulation: V-75
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 7.2 mm
  • Approximate weight: 0.18 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 1.5 BK V90 1HM

Nexans ref. BAAP05A1001AABK - Country ref. 8439.1

  • Colour: Black
  • Insulation: V-90
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 3.3 mm
  • Approximate weight: 0.02 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 1.5 BU V90 1HM

Nexans ref. BAAP05A1001AABE - Country ref. 9137.1

  • Colour: Blue
  • Insulation: V-90
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 3.3 mm
  • Approximate weight: 0.02 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 1.5 GNYE V90 1HM

Nexans ref. BAAP05C1001AAHN - Country ref. 3682.1

  • Colour: Green / yellow
  • Insulation: V-90
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 2.8 mm
  • Approximate weight: 0.02 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 1.5 RD V90 1HM

Nexans ref. BAAP05A1001AARD - Country ref. 7322.1

  • Colour: Red
  • Insulation: V-90
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 3.3 mm
  • Approximate weight: 0.02 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 1.5 WH V90 1HM

Nexans ref. BAAP05A1001AAWT - Country ref. 3317.1

  • Colour: White
  • Insulation: V-90
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 3.3 mm
  • Approximate weight: 0.02 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 10 BK V75 1HM

Nexans ref. BAAP13A1001AABK - Country ref. 3271.1

  • Colour: Black
  • Insulation: V-75
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 6.2 mm
  • Approximate weight: 0.12 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 10 BU V75 1HM

Nexans ref. BAAP13A1001AABE - Country ref. 8883.1

  • Colour: Blue
  • Insulation: V-75
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 6.2 mm
  • Approximate weight: 0.12 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 10 GNYE V75 1HM

Nexans ref. BAAP13A1001AAHN - Country ref. 3513.1

  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 6.2 mm
  • Approximate weight: 0.12 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 10 RD V75 1HM

Nexans ref. BAAP13A1001AARD - Country ref. 8770.1

  • Colour: Red
  • Insulation: V-75
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 6.2 mm
  • Approximate weight: 0.12 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 10 WH V75 1HM

Nexans ref. BAAP13A1001AAWT - Country ref. 4096.1

  • Colour: White
  • Insulation: V-75
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 6.2 mm
  • Approximate weight: 0.12 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 120 GNYE V75

Nexans ref. BAAP23AA001AAHT - Country ref. 7379

  • Packaging: Cut to length (m)
  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 120 mm²
  • Nominal overall diameter: 17.5 mm
  • Approximate weight: 1.23 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 150 GNYE V75

Nexans ref. BAAP24AA001AAHT - Country ref. 7822

  • Packaging: Cut to length (m)
  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 150 mm²
  • Nominal overall diameter: 19.6 mm
  • Approximate weight: 1.462 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 16 BK V75 1HM

Nexans ref. BAAP15A1001AABK - Country ref. 7077.1

  • Colour: Black
  • Insulation: V-75
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 7.2 mm
  • Approximate weight: 0.18 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 16 BU V75

Nexans ref. BAAP15AA001AABE - Country ref. 7481

  • Packaging: Cut to length (m)
  • Colour: Blue
  • Insulation: V-75
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 7.2 mm
  • Approximate weight: 0.18 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 16 GNYE V75

Nexans ref. BAAP15AA001AAHN - Country ref. 4462

  • Packaging: Cut to length (m)
  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 7.3 mm
  • Approximate weight: 0.18 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 16 RD V75 1HM

Nexans ref. BAAP15A1001AARD - Country ref. 1499.1

  • Colour: Red
  • Insulation: V-75
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 7.2 mm
  • Approximate weight: 0.18 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 2.5 BK V90 1HM

Nexans ref. BAAP07A1001AABK - Country ref. 2111.1

  • Colour: Black
  • Insulation: V-90
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 3.8 mm
  • Approximate weight: 0.03 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 2.5 BU V90 1HM

Nexans ref. BAAP07A1001AABE - Country ref. 2215.1

  • Colour: Blue
  • Insulation: V-90
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 3.8 mm
  • Approximate weight: 0.03 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 2.5 GNYE V90 1HM

Nexans ref. BAAP07C1001AAHN - Country ref. 3898.1

  • Colour: Green / yellow
  • Insulation: V-90
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 3.6 mm
  • Approximate weight: 0.03 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 2.5 RD V90 1HM

Nexans ref. BAAP07A1001AARD - Country ref. 5786.1

  • Colour: Red
  • Insulation: V-90
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 3.8 mm
  • Approximate weight: 0.03 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 2.5 WH V90 1HM

Nexans ref. BAAP07A1001AAWT - Country ref. 4732.1

  • Colour: White
  • Insulation: V-90
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 3.8 mm
  • Approximate weight: 0.03 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 25 BK V75

Nexans ref. BAAC17AA001AABK - Country ref. 3897

  • Packaging: Cut to length (m)
  • Colour: Black
  • Insulation: V-75
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 8.9 mm
  • Approximate weight: 0.28 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 25 BU V75 1HM

Nexans ref. BAAP16A1001AABF - Country ref. 5672.1

  • Colour: Blue
  • Insulation: V-75
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 8.9 mm
  • Approximate weight: 0.28 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 25 GNYE V75

Nexans ref. BAAP16AA001AAHT - Country ref. 6320

  • Packaging: Cut to length (m)
  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 8.9 mm
  • Approximate weight: 0.28 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 25 GNYE V75 1HM

Nexans ref. BAAP16A1001AAHT - Country ref. 6320.1

  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 8.9 mm
  • Approximate weight: 0.28 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 25 RD V75

Nexans ref. BAAP16AA001AAJB - Country ref. 3825

  • Packaging: Cut to length (m)
  • Colour: Red
  • Insulation: V-75
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 8.9 mm
  • Approximate weight: 0.28 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 25 WH V75 1HM

Nexans ref. BAAP16A1001AAWV - Country ref. 7361.1

  • Colour: White
  • Insulation: V-75
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 8.9 mm
  • Approximate weight: 0.28 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 35 BK V75

Nexans ref. BAAC18AA001AABK - Country ref. 7395

  • Packaging: Cut to length (m)
  • Colour: Black
  • Insulation: V-75
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 10.1 mm
  • Approximate weight: 0.38 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 35 GNYE V75

Nexans ref. BAAP18AA001AAHT - Country ref. 2057

  • Packaging: Cut to length (m)
  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 10.1 mm
  • Approximate weight: 0.38 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 4 BK V90 1HM

Nexans ref. BAAP09A1001AABK - Country ref. 8484.1

  • Colour: Black
  • Insulation: V-90
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 4.7 mm
  • Approximate weight: 0.06 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 4 BU V90 1HM

Nexans ref. BAAP09A1001AABE - Country ref. 4640.1

  • Colour: Blue
  • Insulation: V-90
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 4.7 mm
  • Approximate weight: 0.06 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 4 GNYE V90 1HM

Nexans ref. BAAP09C1001AAHN - Country ref. 8495.1

  • Colour: Green / yellow
  • Insulation: V-90
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 4.7 mm
  • Approximate weight: 0.06 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 4 RD V90 1HM

Nexans ref. BAAP09A1001AARD - Country ref. 6347.1

  • Colour: Red
  • Insulation: V-90
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 4.7 mm
  • Approximate weight: 0.06 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 4 WH V90 1HM

Nexans ref. BAAP09A1001AAWT - Country ref. 8207.1

  • Colour: Black
  • Insulation: V-90
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 4.7 mm
  • Approximate weight: 0.06 kg/m
  • Max. conductor temperature in service: 90 °C



CU CONDUIT 50 GNYE V75

Nexans ref. BAAP19AA001AAHT - Country ref. 9988

  • Packaging: Cut to length (m)
  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 11.8 mm
  • Approximate weight: 0.51 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 6 BK V75 1HM

Nexans ref. BAAP11A1001AABK - Country ref. 7852.1

  • Colour: Black
  • Insulation: V-75
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 5.3 mm
  • Approximate weight: 0.08 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 6 BU V75 1HM

Nexans ref. BAAP11A1001AABE - Country ref. 8105.1

  • Colour: Blue
  • Insulation: V-75
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 5.3 mm
  • Approximate weight: 0.08 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 6 GNYE V75 1HM

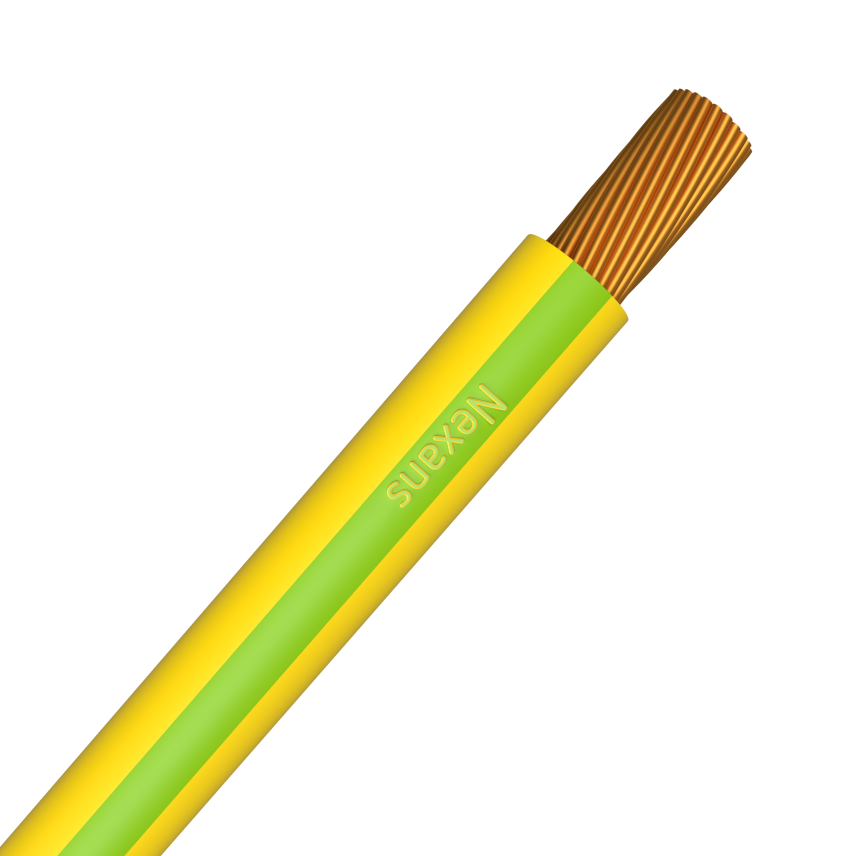

Nexans ref. BAAP11A1001AAHN - Country ref. 6112.1

  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 5.3 mm
  • Approximate weight: 0.08 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 6 RD V75 1HM

Nexans ref. BAAP11A1001AARD - Country ref. 9844.1

  • Colour: Red
  • Insulation: V-75
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 5.3 mm
  • Approximate weight: 0.08 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 6 WH V75 1HM

Nexans ref. BAAP11A1001AAWT - Country ref. 4875.1

  • Colour: White
  • Insulation: V-75
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 5.3 mm
  • Approximate weight: 0.08 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 70 GNYE V75

Nexans ref. BAAP20AA001AAHT - Country ref. 5680

  • Packaging: Cut to length (m)
  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 13.5 mm
  • Approximate weight: 0.72 kg/m
  • Max. conductor temperature in service: 75 °C



CU CONDUIT 95 GNYE V75

Nexans ref. BAAP21AA001AAHT - Country ref. 5987

  • Packaging: Cut to length (m)
  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 15.8 mm
  • Approximate weight: 1 kg/m
  • Max. conductor temperature in service: 75 °C



CU Conduit 35 GNYE V75 1HM

Nexans ref. BAAP18A1001AAHT - Country ref. 2057.1

  • Colour: Green / yellow
  • Insulation: V-75
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 10.1 mm
  • Approximate weight: 0.38 kg/m
  • Max. conductor temperature in service: 75 °C



Description

Description

Standards

  • Product
    AS/NZS 5000.1

Application

  • Industrial, commercial and domestic applications
  • The wiring of switch boards and control panels
  • Earth wiring in houses
  • Wiring where the conduit wire is run inside a protective enclosure (plastic or metal conduits)



Characteristics

Characteristics

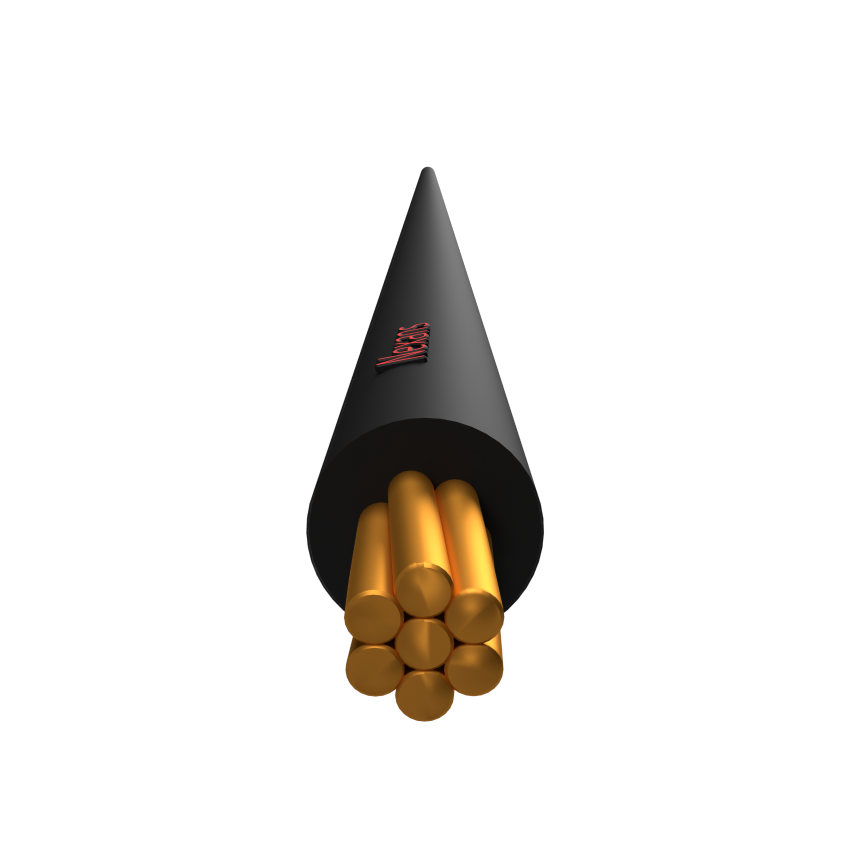

Construction characteristics

Construction characteristics

Insulating material
PVC
Type of conductor
Circular, stranded
Conductor material
Copper
Conductor flexibility
Class 2

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV

Resources

Resources

Documentation

Supplier Declaration of Conformity (SDoC) - Conduit pdf — 191.6 kB
Download

Current carrying capacities single phase (in Amps) - Conduit wires

Copper conductor

Circular stranded (except 1 mm² which is solid)

Insulation PVC

Max. Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu
1.0 15
1.5 21
2.5 27
4.0 36
6.0 47
10.0 62
16.0 80
25.0 107
35.0 128
50.0 157
70.0 194
95.0 242
120.0 276
Air enclosed

Current carrying capacities three phase (in Amps) - Conduit wires

Copper conductor

Circular stranded (except 1 mm² which is solid)

Insulation PVC

Max. Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu
1.0 14
1.5 17
2.5 24
4.0 32
6.0 40
10.0 54
16.0 71
25.0 92
35.0 114
50.0 136
70.0 173
95.0 209
120.0 247
Air enclosed
