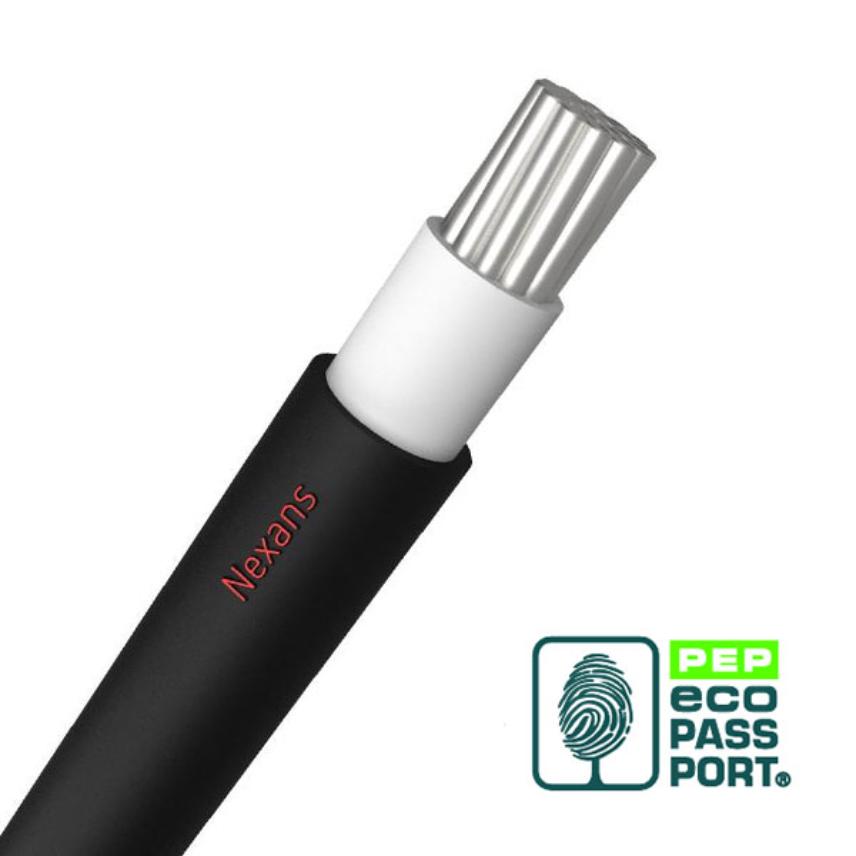

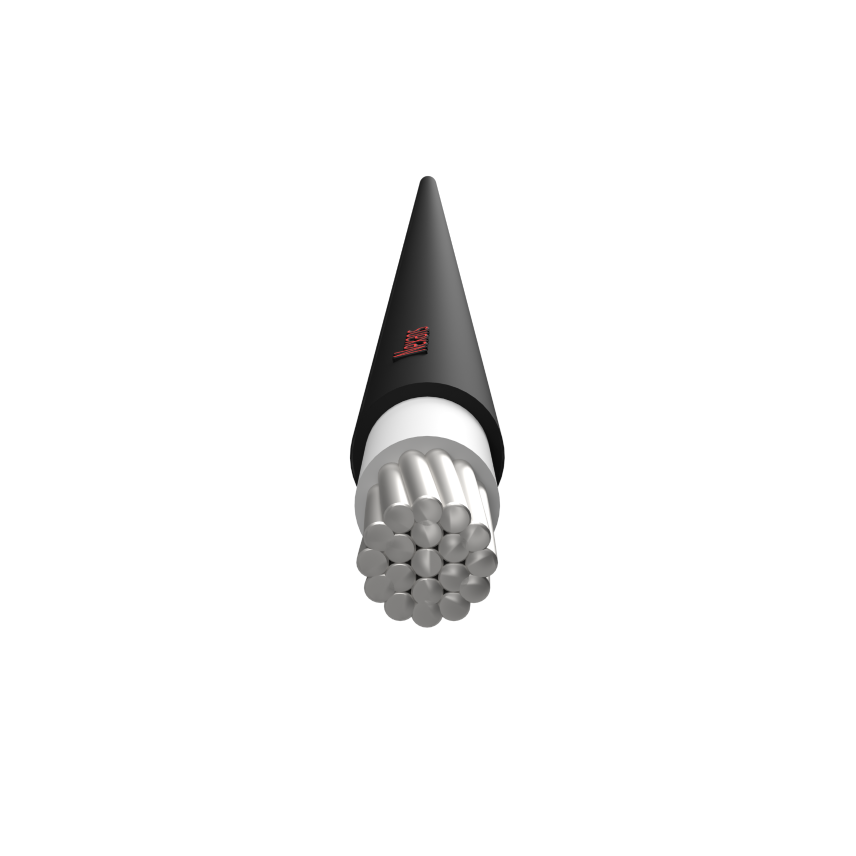

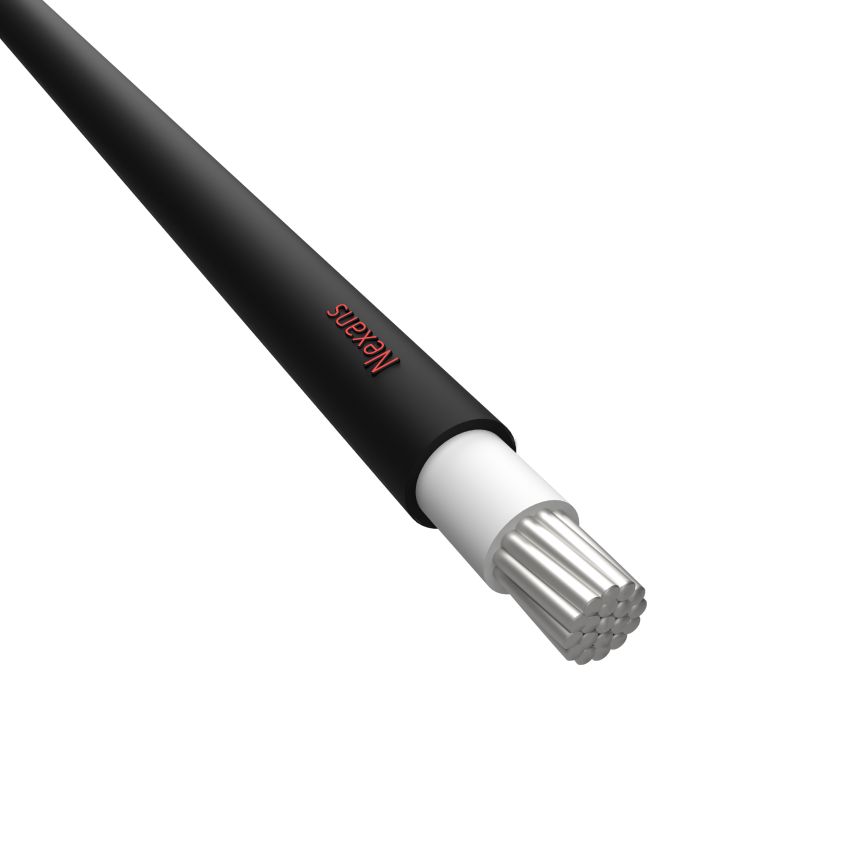

AL Cantol
AL Cantol
Al conductor, XLPE insulated, Black PVC sheath. 0.6/1 kV. Made to AS/NZS 5000.1
Read moreAL CANTOL 70
Nexans ref. BDBH20AA001CXNA - Country ref. 7763
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 15.0 mm
- Approximate weight: 0.32 kg/m
AL CANTOL 95
Nexans ref. BDBH21AA001CXNA - Country ref. 1879
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 16.9 mm
- Approximate weight: 0.42 kg/m
AL CANTOL 120
Nexans ref. BDBH43AA001CXNA - Country ref. 9269
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 18.5 mm
- Approximate weight: 0.51 kg/m
AL CANTOL 150
Nexans ref. BDBH44AA001CXNA - Country ref. 7344
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 20.6 mm
- Approximate weight: 0.62 kg/m
AL CANTOL 185
Nexans ref. BDBH25AA001CXNA - Country ref. 3244
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 22.8 mm
- Approximate weight: 0.76 kg/m
AL CANTOL 240
Nexans ref. BDBH26AA001CXNA - Country ref. 2974
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal overall diameter: 25.5 mm
- Approximate weight: 0.97 kg/m
AL CANTOL 300
Nexans ref. BDBH27AA001CXNA - Country ref. 8270
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 27.9 mm
- Approximate weight: 1.19 kg/m
AL CANTOL 400
Nexans ref. BDBH28AA001CXNA - Country ref. 4468
- Packaging: Cut to length (m)
- Conductor cross-section: 400 mm²
- Nominal overall diameter: 31.3 mm
- Approximate weight: 1.5 kg/m
AL CANTOL 500
Nexans ref. BDBH30AA001CXNA - Country ref. 4658
- Packaging: Cut to length (m)
- Conductor cross-section: 500 mm²
- Nominal overall diameter: 35.0 mm
- Approximate weight: 1.87 kg/m
AL CANTOL 630
Nexans ref. BDBH32AA001CXNA - Country ref. 8554
- Packaging: Cut to length (m)
- Conductor cross-section: 630 mm²
- Nominal overall diameter: 39.4 mm
- Approximate weight: 2.38 kg/m
AL CANTOL 800
Nexans ref. BDBH33AA001CXNA - Country ref. 4864
- Packaging: Cut to length (m)
- Conductor cross-section: 800 mm²
- Nominal overall diameter: 44.7 mm
- Approximate weight: 3.01 kg/m
Description
Description
Standards
-
NationalAS/NZS 5000.1
Application
- Industrial and commercial applications (predominantly)
- Some domestic applications
- For use in various situations to supply the main power from the point of supply (either single or three phase application) to buildings, equipment, eg, switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc. Commonly used in Power Authority work.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Current carrying capacities single phase (in Amps) - Single Conductor XLPE
Copper/ALuminium conductor - Circular compacted stranded - Insulation XLPE
Max. Conductor Temperature 90⁰C
Conductor cross-section | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
16.0 | 119 | 0 | 95 | 0 | 92 | 0 | 149 | 0 | 120 | 0 | 107 | 0 | 47 | |
25.0 | 160 | 0 | 129 | 0 | 124 | 0 | 192 | 0 | 156 | 0 | 140 | 0 | 64 | |
35.0 | 195 | 0 | 158 | 0 | 149 | 0 | 230 | 0 | 187 | 0 | 168 | 0 | 79 | |
50.0 | 238 | 0 | 194 | 0 | 183 | 0 | 273 | 0 | 226 | 0 | 202 | 0 | 0 | |
70.0 | 300 | 233 | 246 | 191 | 224 | 175 | 335 | 260 | 276 | 214 | 249 | 194 | 0 | |
95.0 | 372 | 288 | 306 | 238 | 281 | 218 | 401 | 311 | 331 | 256 | 305 | 236 | 0 | |
120.0 | 432 | 336 | 358 | 278 | 321 | 249 | 457 | 355 | 383 | 297 | 348 | 270 | 0 | |
150.0 | 495 | 385 | 413 | 320 | 362 | 281 | 514 | 398 | 429 | 333 | 391 | 303 | 0 | |
185.0 | 574 | 447 | 480 | 374 | 426 | 331 | 581 | 453 | 495 | 384 | 453 | 352 | 0 | |
240.0 | 684 | 534 | 574 | 449 | 507 | 396 | 674 | 526 | 574 | 446 | 532 | 415 | 0 | |
300.0 | 790 | 618 | 666 | 520 | 0 | 0 | 761 | 595 | 663 | 516 | 601 | 471 | 0 | |
400.0 | 920 | 726 | 779 | 615 | 0 | 0 | 865 | 683 | 755 | 592 | 699 | 552 | 0 | |
500.0 | 1063 | 849 | 903 | 722 | 0 | 0 | 977 | 780 | 856 | 676 | 791 | 631 | 0 | |
630.0 | 1224 | 994 | 1045 | 849 | 0 | 0 | 1098 | 891 | 995 | 792 | 916 | 744 | 0 |
Air Spaced from Surface, Unenclosed |
Air touching, unenclosed |
Air enclosed |
Buried direct |
Buried in single-way duct |
Buried in multi-way duct |
Cable surrounded by thermal insulation, unenclosed |
Current carrying capacities three phase (in Amps) - Single Conductor XLPE
Copper conductor - Circular compacted stranded - Insulation XLPE
Aluminum conductor - Circular compacted stranded - Insulation XLPE
Max. Conductor Temperature 90⁰C
Conductor cross-section | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
16.0 | 101 | 0 | 95 | 0 | 79 | 0 | 125 | 0 | 108 | 0 | 92 | 0 | 47 | |
25.0 | 138 | 0 | 129 | 0 | 107 | 0 | 162 | 0 | 141 | 0 | 121 | 0 | 64 | |
35.0 | 169 | 0 | 158 | 0 | 132 | 0 | 193 | 0 | 169 | 0 | 147 | 0 | 79 | |
50.0 | 207 | 0 | 194 | 0 | 157 | 0 | 229 | 0 | 203 | 0 | 174 | 0 | 0 | |
70.0 | 264 | 205 | 246 | 191 | 201 | 156 | 280 | 217 | 248 | 193 | 217 | 169 | 0 | |
95.0 | 328 | 255 | 306 | 238 | 242 | 188 | 335 | 260 | 295 | 229 | 261 | 203 | 0 | |
120.0 | 384 | 298 | 358 | 278 | 287 | 223 | 381 | 296 | 342 | 265 | 304 | 236 | 0 | |
150.0 | 443 | 344 | 413 | 320 | 325 | 252 | 428 | 332 | 383 | 296 | 342 | 266 | 0 | |
185.0 | 515 | 402 | 479 | 373 | 369 | 287 | 484 | 377 | 442 | 343 | 388 | 303 | 0 | |
240.0 | 616 | 482 | 573 | 448 | 439 | 343 | 560 | 438 | 510 | 397 | 456 | 356 | 0 | |
300.0 | 713 | 559 | 662 | 519 | 516 | 405 | 630 | 495 | 591 | 460 | 525 | 412 | 0 | |
400.0 | 832 | 659 | 772 | 613 | 587 | 466 | 715 | 567 | 670 | 525 | 596 | 473 | 0 | |
500.0 | 961 | 773 | 893 | 717 | 696 | 560 | 805 | 646 | 756 | 598 | 693 | 556 | 0 | |
630.0 | 1111 | 906 | 1032 | 842 | 785 | 641 | 902 | 736 | 877 | 700 | 778 | 635 | 0 | |
800.0 | 0 | 1037 | 0 | 964 | 0 | 0 | 0 | 825 | 0 | 0 | 0 | 706 | 0 |
Air Spaced from Surface, Unenclosed |
Air touching, unenclosed |
Air enclosed |
Buried direct |
Buried in single-way duct |
Buried in multi-way duct |
Cable surrounded by thermal insulation, unenclosed |
