Cu Aerial - Hard Drawn (Covered)

Products

Cu Covered Aerial - Hard Drawn 6mm2

Nexans ref. BAAT11AA001AABK - Country ref. 7089

  • Conductor cross-section: 6 mm²
  • Stranding (No./mm): 7/1.04
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 5.3 mm
  • Approximate weight: 0.08 kg/m
  • Conductor diameter: 3.12 mm
  • Minimum breaking load: 2.3 kN



Cu Covered Aerial - Hard Drawn 10mm2

Nexans ref. BAAT13AA001AABK - Country ref. 1775

  • Conductor cross-section: 10 mm²
  • Stranding (No./mm): 7/1.35
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 6.2 mm
  • Approximate weight: 0.12 kg/m
  • Conductor diameter: 4.05 mm
  • Minimum breaking load: 3.9 kN



Cu Covered Aerial - Hard Drawn 16mm2

Nexans ref. BAAT15AA001AABK - Country ref. 3019

  • Conductor cross-section: 16 mm²
  • Stranding (No./mm): 7/1.70
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 7.2 mm
  • Approximate weight: 0.18 kg/m
  • Conductor diameter: 5.1 mm
  • Minimum breaking load: 5.9 kN



Cu Covered Aerial - Hard Drawn 25mm2

Nexans ref. BAAT16AA001AABK - Country ref. 4277

  • Conductor cross-section: 25 mm²
  • Stranding (No./mm): 7/2.14
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 9.3 mm
  • Approximate weight: 0.3 kg/m
  • Conductor diameter: 6.75 mm
  • Minimum breaking load: 10.4 kN



Cu Covered Aerial - Hard Drawn 35mm2

Nexans ref. BAAT18AA001AABK - Country ref. 4241

  • Conductor cross-section: 35 mm²

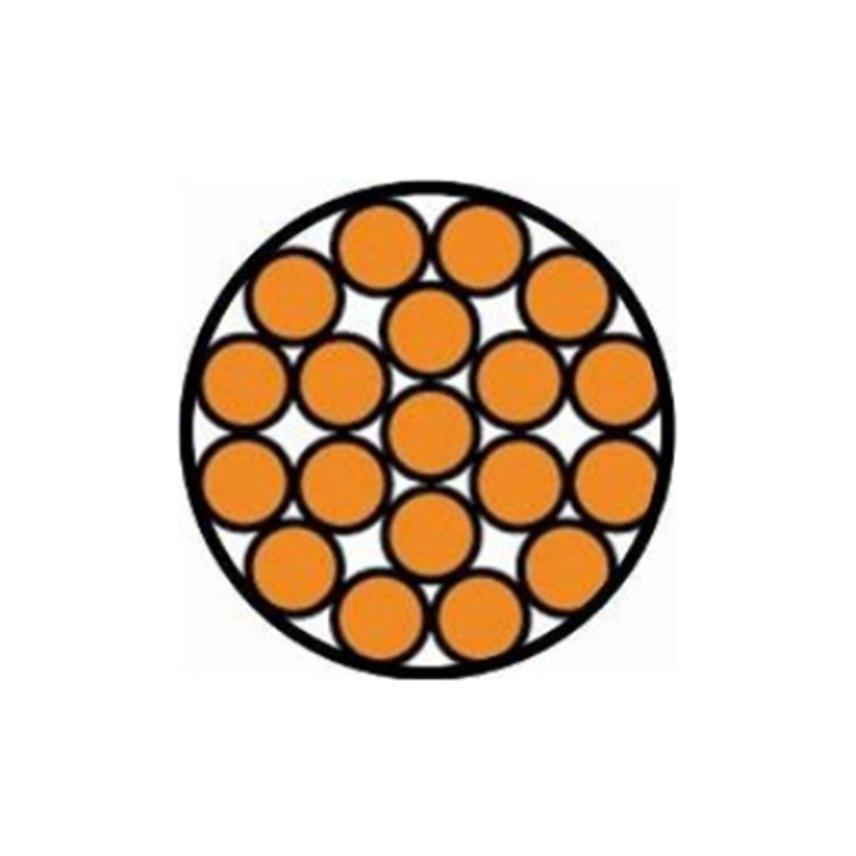

  • Stranding (No./mm): 19/1.53
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 10.2 mm
  • Approximate weight: 0.37 kg/m
  • Conductor diameter: 7.65 mm
  • Minimum breaking load: 12.7 kN



Cu Covered Aerial - Hard Drawn 40mm2

Nexans ref. BAAT70AA001AABK - Country ref. 4647

  • Conductor cross-section: 40 mm²
  • Stranding (No./mm): 19/1.63
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 11.2 mm
  • Approximate weight: 0.43 kg/m
  • Conductor diameter: 8.15 mm
  • Minimum breaking load: 16 kN



Cu Covered Aerial - Hard Drawn 50mm2

Nexans ref. BAAT19AA001AABK - Country ref. 5940

  • Conductor cross-section: 50 mm²
  • Stranding (No./mm): 19/1.83
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 12.2 mm
  • Approximate weight: 0.54 kg/m
  • Conductor diameter: 9.15 mm
  • Minimum breaking load: 17.3 kN



Cu Covered Aerial - Hard Drawn 70mm2

Nexans ref. BAAT20AA001AABK - Country ref. 7378

  • Conductor cross-section: 70 mm²
  • Stranding (No./mm): 19/2.14
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 13.7 mm
  • Approximate weight: 0.71 kg/m
  • Conductor diameter: 10.7 mm
  • Minimum breaking load: 25 kN



Cu Covered Aerial - Hard Drawn 95mm2

Nexans ref. BAAT22AA001AABK - Country ref. 1695

  • Conductor cross-section: 95 mm²
  • Stranding (No./mm): 37/1.83
  • Nominal insulation thickness: 1.6 mm
  • Nominal overall diameter: 16.2 mm
  • Approximate weight: 1.01 kg/m
  • Conductor diameter: 12.8 mm
  • Minimum breaking load: 32.8 kN



Description

Description

Standards

  • National
    AS/NZS 5000.1

The HDCu aerial has lower elongation and increased tensile rating compared to annealed copper conductors.

The PVC covering contains a high level of carbon black for UV resistance. The covering is not considered as an electrical insulation.

This type of aerial cable is designed for harsh environments such as coastal areas; the conductor is protected by the PVC covering to reduce the risk of aluminium corrosion.

Note

  1. Coefficient of linear expansion 17.0 x 10-6/°C.
  2. Modulus of elasticity:
    112 GPa for seven (7) wire conductors.
    110 GPa for nineteen (19) wire conductors.
    108  GPa for thirtyseven (37) wire conductors.


Current ratings are based on ambient temperature of 30°C, a maximum conductor temperature of 75°C, rural weathered, summer noon and intensity of solar radiation 1000 W/m².

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC

Usage characteristics

Usage characteristics

Maximum operating temperature
75 °C
