Three Core AL 11kV cable

Products

AL MV11 3C 35^ 3.3 PVCMDPE

Nexans ref. XJMA18VT003CXAA - Country ref. 4432

  • Packaging: m
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 47.0 mm
  • Approximate weight: 170.8 kg/100m



AL MV11 3C 95^ 8.5 PVCMDPE

Nexans ref. XJNA22AAM03CXAA - Country ref. 2155

  • Packaging: m
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 54.3 mm
  • Approximate weight: 282.9 kg/100m



AL MV11 3C 185^ 10.0 PVCMDPE

Nexans ref. XJNA25PU003CXAA - Country ref. 9130

  • Packaging: m
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 68.7 mm
  • Approximate weight: 453.6 kg/100m



AL MV11 3C 300^ 13.1 PVCMDPE

Nexans ref. XJNA27VT003CXAA - Country ref. 4426

  • Packaging: m
  • Conductor cross-section: 300 mm²
  • Nominal overall diameter: 79.0 mm
  • Approximate weight: 620.8 kg/100m



Description

Description

Standards

  • National
    AS/NZS 1125; AS/NZS 1429.1; AS/NZS 3808

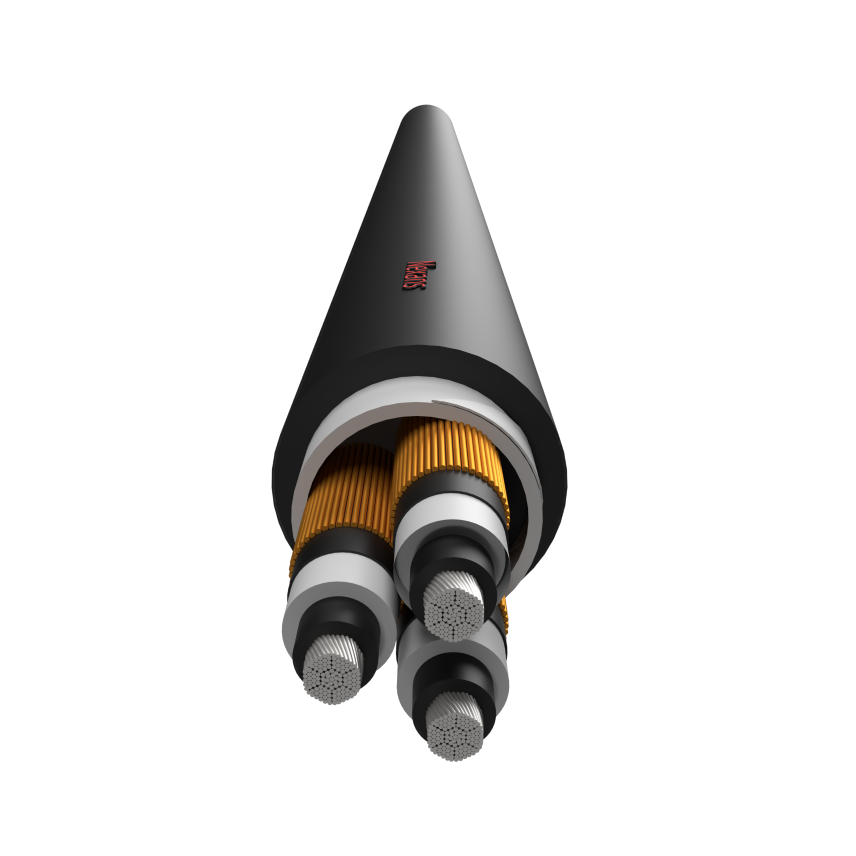

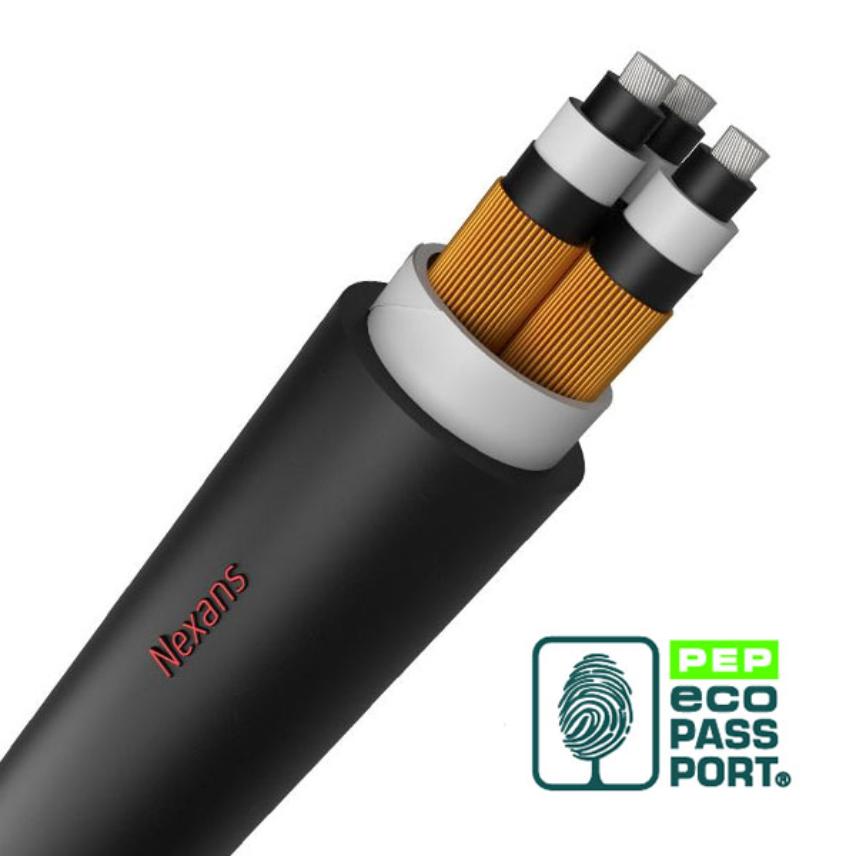

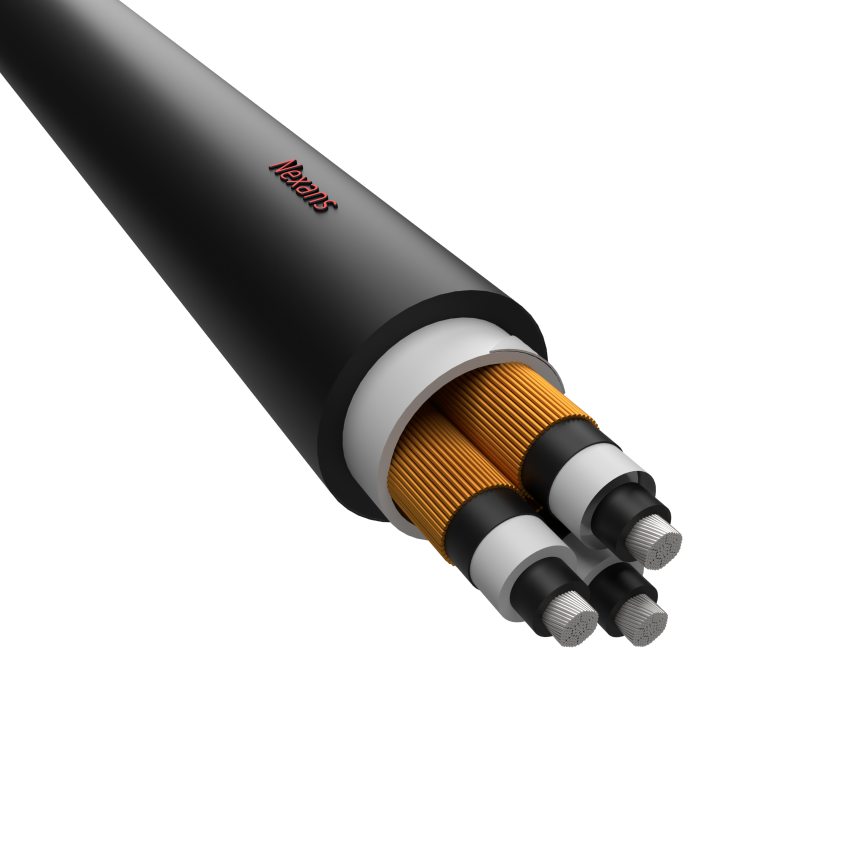

General Construction:

  • Conductor: Aluminium multistrand compacted (Class 2)
  • Conductor Screen: Semi-conductive XLPE conductor screen
  • Insulation: TR-XLPE
  • Insulation Screen: Semi-conductive XLPE insulation screen
  • Metallic Screen: Copper Wire
  • Inner Sheath: PVC
  • Sheath: MDPE


Cable Type: Medium Voltage

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Aluminum
Type of conductor
Stranded compacted
Insulation
TR XLPE
Screen
Copper wire
Inner sheath
PVC
Outer sheath
MDPE

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
-

Resources

Resources

Documentation

Current Rating AL MV11 3 Core cables:

AL Three core Medium Voltage cables

Conductor cross-section
mm² Al Al Al
35.0 134 131 110
95.0 244 228 194
185.0 359 325 278
300.0 484 426 370
In Air (protected from solar radiation, spaced from surface)
Buried direct
Buried in single way PVC ducts (in ground)
