Single Core AL 11kV cable

Products

AL MV11 1C 25^ CUT PVC

Nexans ref. XJHA17CX001CXAA - Country ref. 1086

  • Packaging: m
  • Screen: Copper tape, helically
  • Inner sheath:
  • Outer sheath: PVC
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 34.4
  • Approximate weight: 41.3 kg/100m



AL MV11 1C 35^ 3.3 MDPE

Nexans ref. XJIA18AAM01CXAA - Country ref. 3434

  • Packaging: Bag (Day)
  • Screen: Copper wire
  • Inner sheath: -
  • Outer sheath: MDPE
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 36.2
  • Approximate weight: 60.6 kg/100m



AL MV11 1C 185^ #10.0 PVCMDPE

Nexans ref. XJNA25WPM01CXAA - Country ref. 1696

  • Packaging: m
  • Screen: Copper wire
  • Inner sheath: PVC
  • Outer sheath: MDPE
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 39.5
  • Approximate weight: 169.8 kg/100m



AL MV11 1C 300^# 13.0 PVCMDPE

Nexans ref. XJNA27VT001CXAA - Country ref. 6930

  • Packaging: m
  • Screen: Copper wire
  • Inner sheath: PVC
  • Outer sheath: MDPE
  • Conductor cross-section: 300 mm²
  • Nominal overall diameter: 41.1
  • Approximate weight: 268.8 kg/100m



AL MV11 1C 630^#13.1 PVCMDPE

Nexans ref. XJNA32VT001CXAA - Country ref. 6749

  • Packaging: m
  • Screen: Copper wire
  • Inner sheath: PVC
  • Outer sheath: MDPE
  • Conductor cross-section: 630 mm²
  • Nominal overall diameter: 42.8
  • Approximate weight: 390.9 kg/100m



AL MV11 1C  95^#  8.5 PVCMDPE

Nexans ref. XJNA22WPM01CXAA - Country ref. 1432

  • Packaging: m
  • Screen: Copper wire
  • Inner sheath: PVC
  • Outer sheath: MDPE
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 37.9
  • Approximate weight: 126.4 kg/100m



Description

Description

Standards

  • National
    AS/NZS 1125; AS/NZS 1429.1; AS/NZS 3808

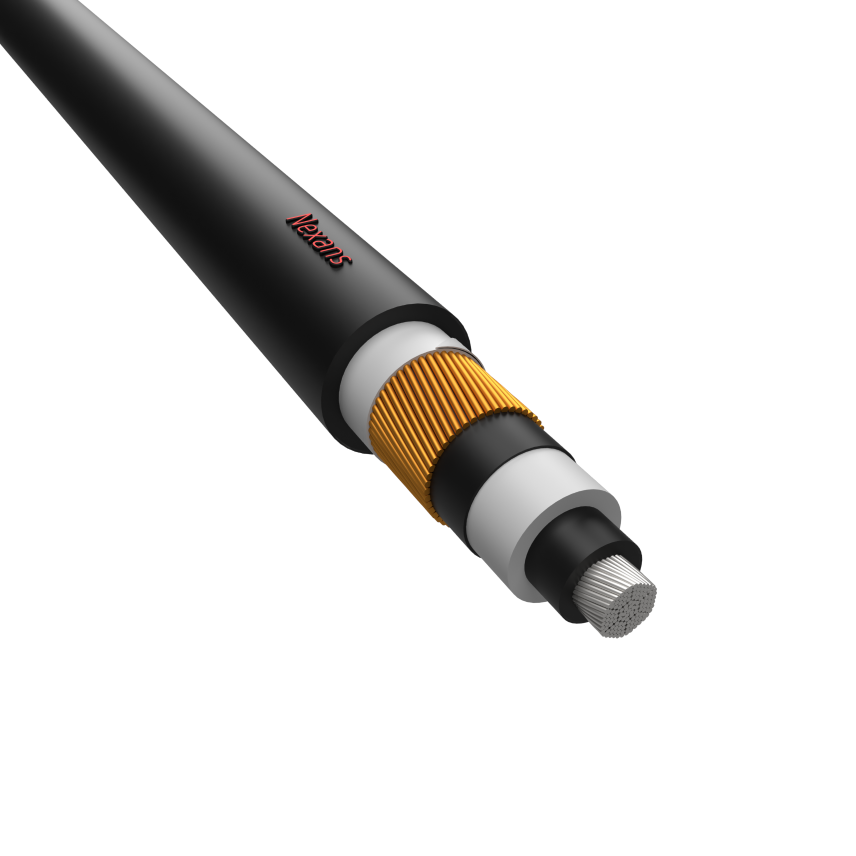

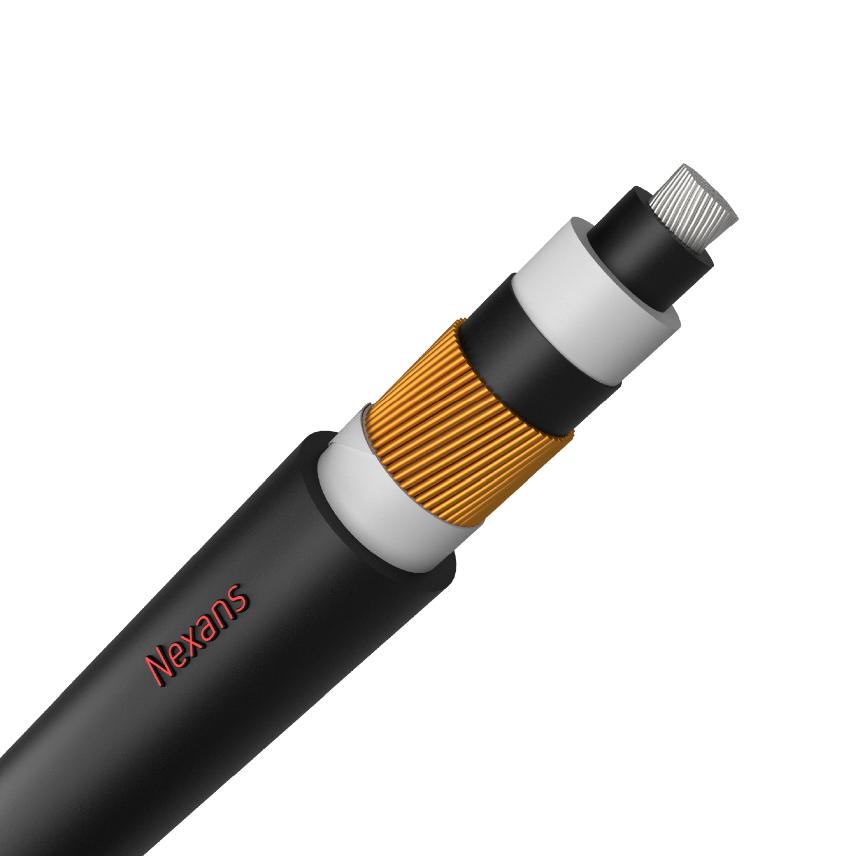

General Construction:

  • Conductor: Aluminium multistrand compacted (Class 2)
  • Conductor Screen: Semi-conductive XLPE conductor screen
  • Insulation: TR-XLPE
  • Insulation Screen: Semi-conductive XLPE insulation screen
  • Metallic Screen: Copper Wire or Copper Tape
  • Inner Sheath: PVC
  • Sheath: MDPE or Single PVC sheath.


Cable Type: Medium Voltage



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Stranded aluminum
Type of conductor
Stranded compacted
Insulation
TR-XLPE

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Resources

Resources

Current Rating AL MV11 1C:

AL Single core Medium Voltage cables

Conductor cross-section
mm² Al Al Al
35.0 156 143 132
95.0 283 243 221
185.0 420 345 312
300.0 562 438 392
630.0 861 626 538
In Air (protected from solar radiation, spaced from surface)
Buried direct
Buried in single way PVC ducts (in ground)
