CLIMATE - 3C+E TPS
CLIMATE - 3C+E TPS
Stranded plain annealed copper, 450/750 V PVC insulated, PVC Flat Sheathed to AS/NZS 5000.2
Read moreCU TPS 3X 1.0+E BU 1HM
Nexans ref. ENZP02A1003BFRJ - Country ref. 1719.1
- Conductor cross-section: 1 mm²
- Earth conductor cross section: 1 mm²
- Nominal overall diameter: 4.25 x 11.7
- Approximate weight: 0.09 kg/m
CU TPS 3X 1.5+E BU 1HM
Nexans ref. ENZQ05A1003BFRJ - Country ref. 4191.1
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 4.74 x 13.7
- Approximate weight: 0.12 kg/m
CU TPS 3X 1.5+E BU 2HM
Nexans ref. ENZQ05A2003BFRJ - Country ref. 4191.2
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 4.25 x 11.7
- Approximate weight: 0.12 kg/m
CU TPS 3X 1.5+E BU 5HM
Nexans ref. ENZQ05A5003BFRJ - Country ref. 4191.5
- Conductor cross-section: 1.5 mm²
- Earth conductor cross section: 1.5 mm²
- Nominal overall diameter: 4.74 x 13.7
- Approximate weight: 0.12 kg/m
CU TPS 3X 2.5+E BU 1HM
Nexans ref. ENZP07A1003BFRJ - Country ref. 4169.1
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 5.25 x 15.1
- Approximate weight: 0.18 kg/m
CU TPS 3X 2.5+E BU 2HM
Nexans ref. ENZP07A2003BFRJ - Country ref. 4169.2
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 5.25 x 15.1
- Approximate weight: 0.18 kg/m
CU TPS 3X 2.5+E BU 5HM
Nexans ref. ENZP07A5003BFRJ - Country ref. 4169.5
- Conductor cross-section: 2.5 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 5.25 x 15.1
- Approximate weight: 0.18 kg/m
CU TPS 3X 4+2.5E BU 1HM
Nexans ref. ENZP09A1003BFRJ - Country ref. 1103.1
- Conductor cross-section: 4 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 6.28 x 17.8
- Approximate weight: 0.26 kg/m
CU TPS 3X 6+2.5E BU 1HM
Nexans ref. ENZP11A1003BFRJ - Country ref. 1529.1
- Conductor cross-section: 6 mm²
- Earth conductor cross section: 2.5 mm²
- Nominal overall diameter: 7.02 x 19.7
- Approximate weight: 0.33 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.2

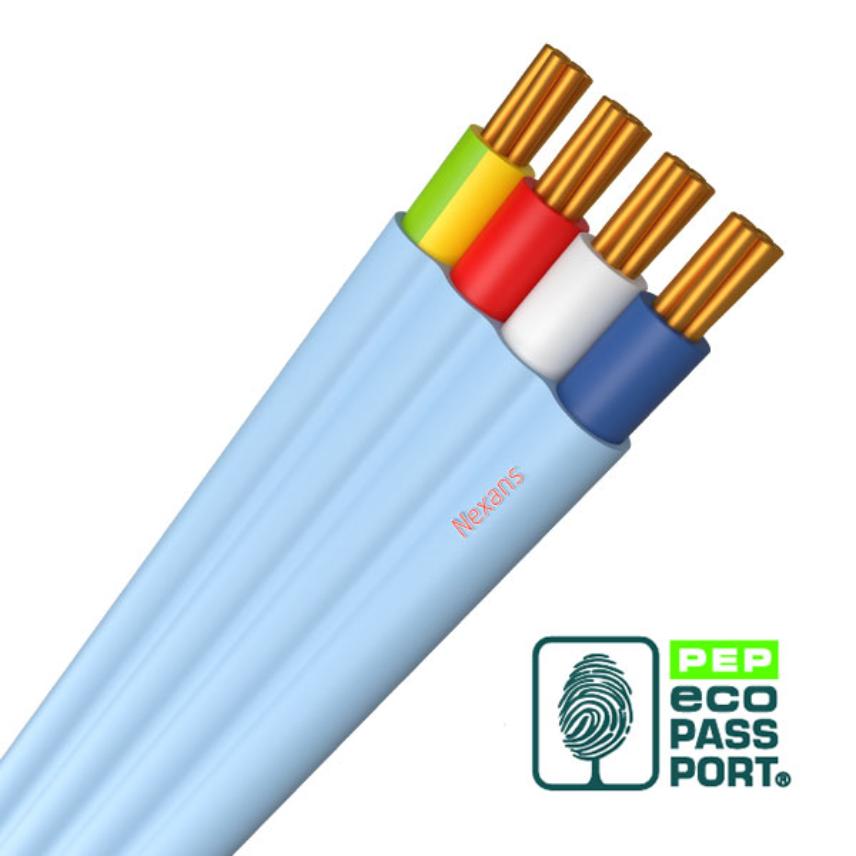

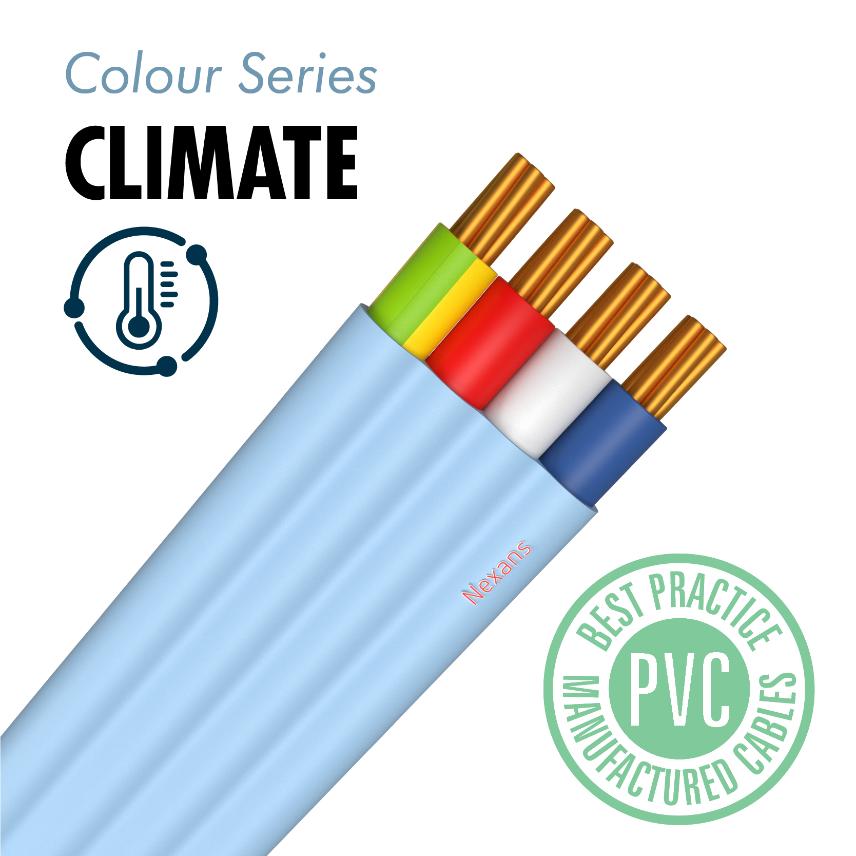

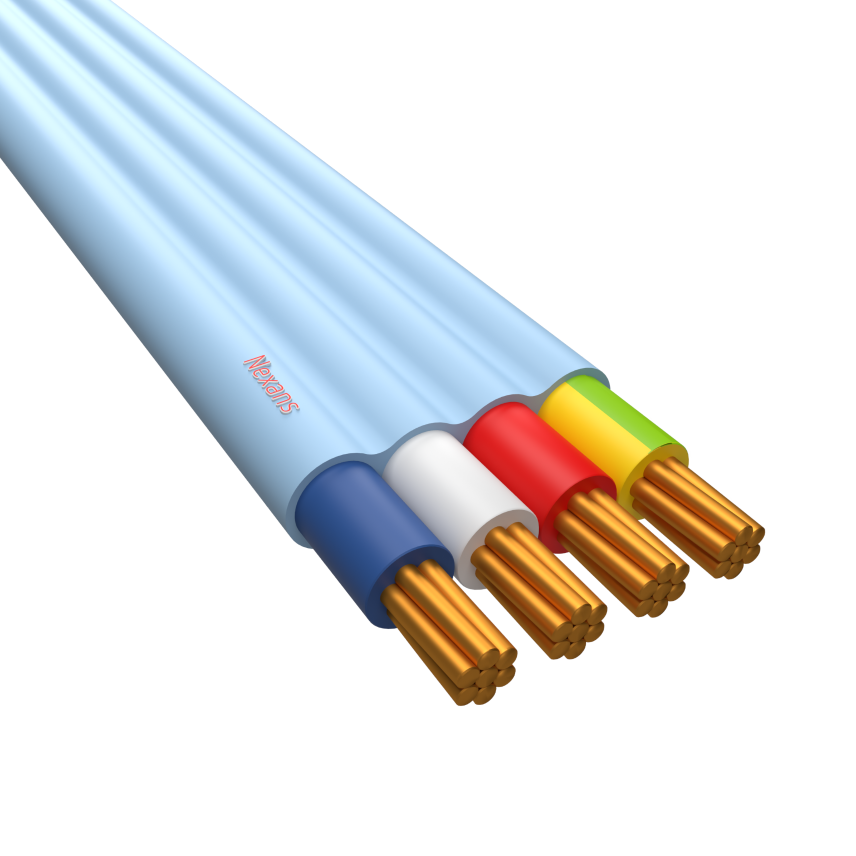

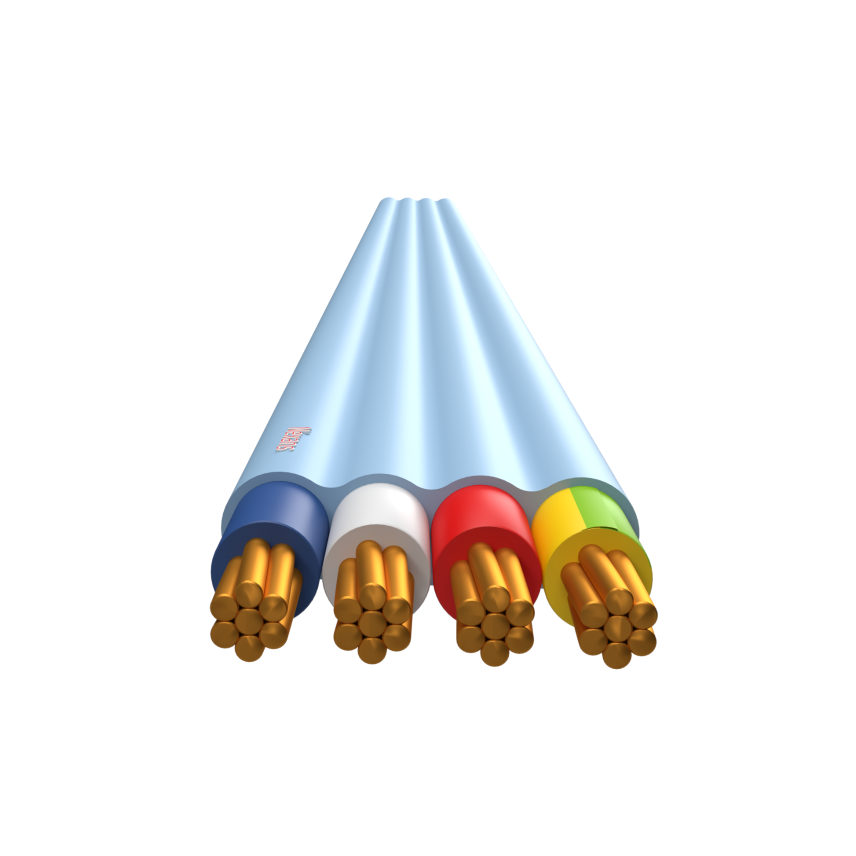

CLIMATE is a durable and robust three phase and earth cable, specifically designed for heat pump and air conditioning installations. This cable is an extension of our 'Current' twin and earth cable, with the added benefit of a blue coloured sheath for easy identification.
Application:
- General application: domestic, commercial, industrial
- Fixed applications
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
