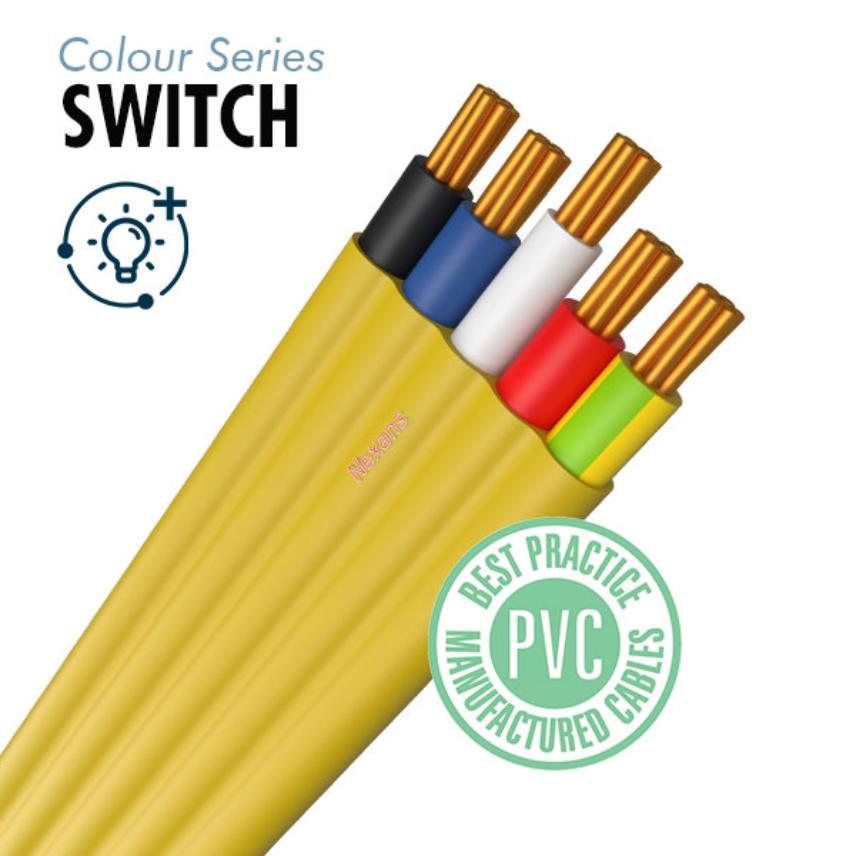

SWITCH PLUS - 4C+E TPS
SWITCH PLUS - 4C+E TPS
CU conductors, PVC insulation, PVC sheath. 450/750 V. Made to AS/NZS 5000.2
Read moreCU TPS 4 X 1.0 + E LT YE 100 M
Nexans ref. GNCP02A1004YXCN - Country ref. 4631.1

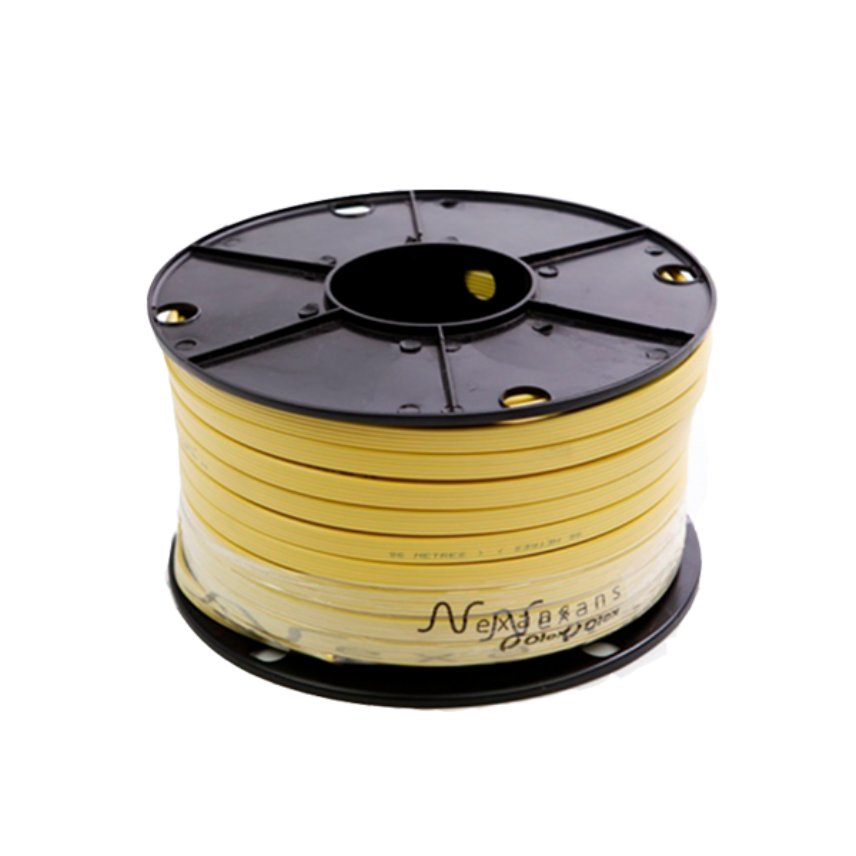

- Packaging: Spool (100m)
- Conductor cross-section: 1 mm²
- Nominal overall diameter: 4.25 x 11.7
- Approximate weight: 0.11 kg/m
CU TPS 4 X 1.5 + E LT YE 100 M
Nexans ref. GNCQ05A1004YXCN - Country ref. 5499.1
- Packaging: Spool (100m)
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 4.74 x 16.7
- Approximate weight: 0.15 kg/m
CU TPS 4 X 1.5 + E LT YE 500 M
Nexans ref. GNCQ05A5004YXCN - Country ref. 5499.5
- Packaging: Spool (500m)
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 4.74 x 16.7
- Approximate weight: 0.15 kg/m
CU TPS 4 X 2.5 + E LT YE 100 M
Nexans ref. GNCP07A1004YXCN - Country ref. 1565.1
- Packaging: Spool (100m)
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 5.25 x 18.4
- Approximate weight: 0.22 kg/m
CU TPS 4 X 2.5 + E LT YE 500 M
Nexans ref. GNCP07A5004YXCN - Country ref. 1565.5
- Packaging: Spool (500m)
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 5.25 x 18.4
- Approximate weight: 0.22 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.2; EN 50173

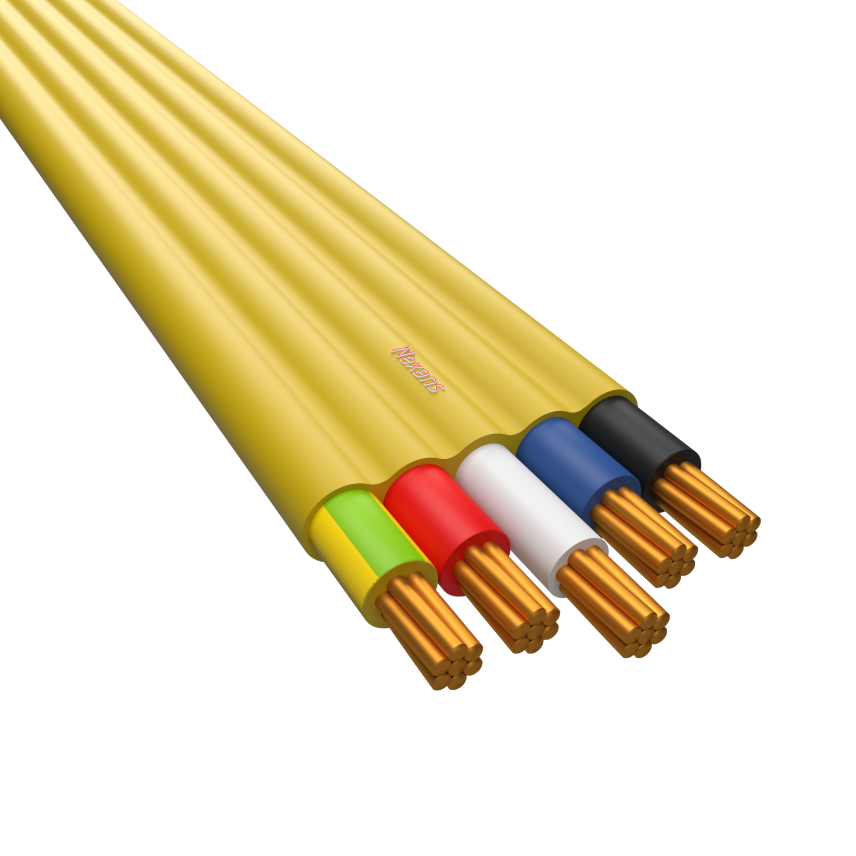

SWITCH PLUS is a four phase and earth cable designed for lighting applications, specifically 2-way switching installations. The yellow sheath means the cable is easily identifiable when installed.
Applications:
- General application: domestic, commercial, industrial
- Designed specifically for 2-way switching and heat, light, fan units
- Fixed applications
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
