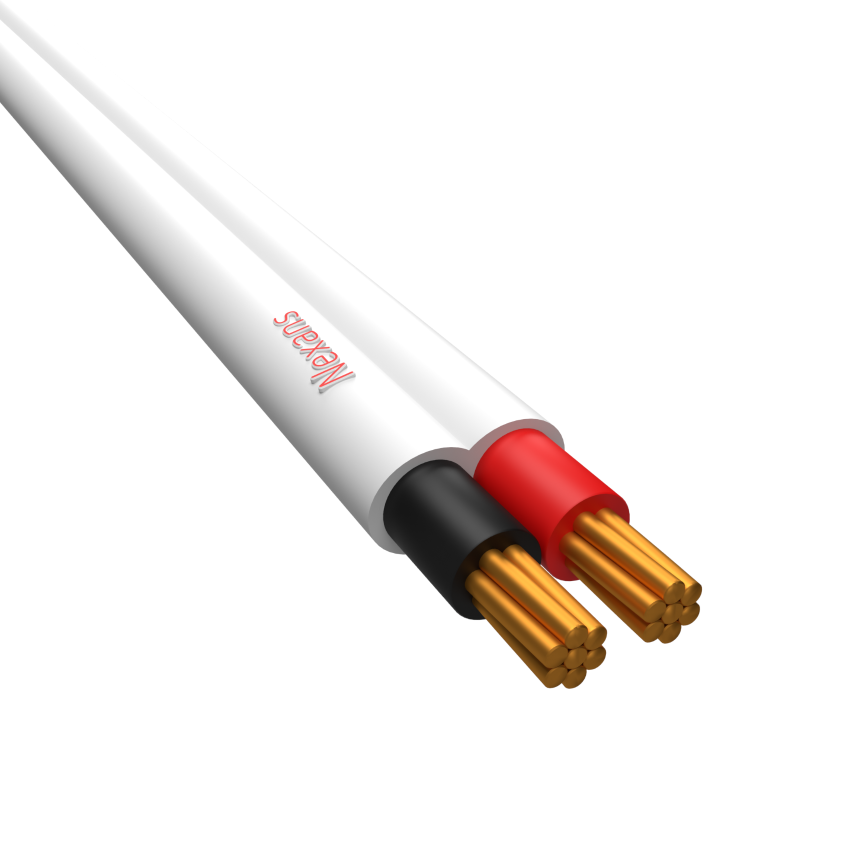

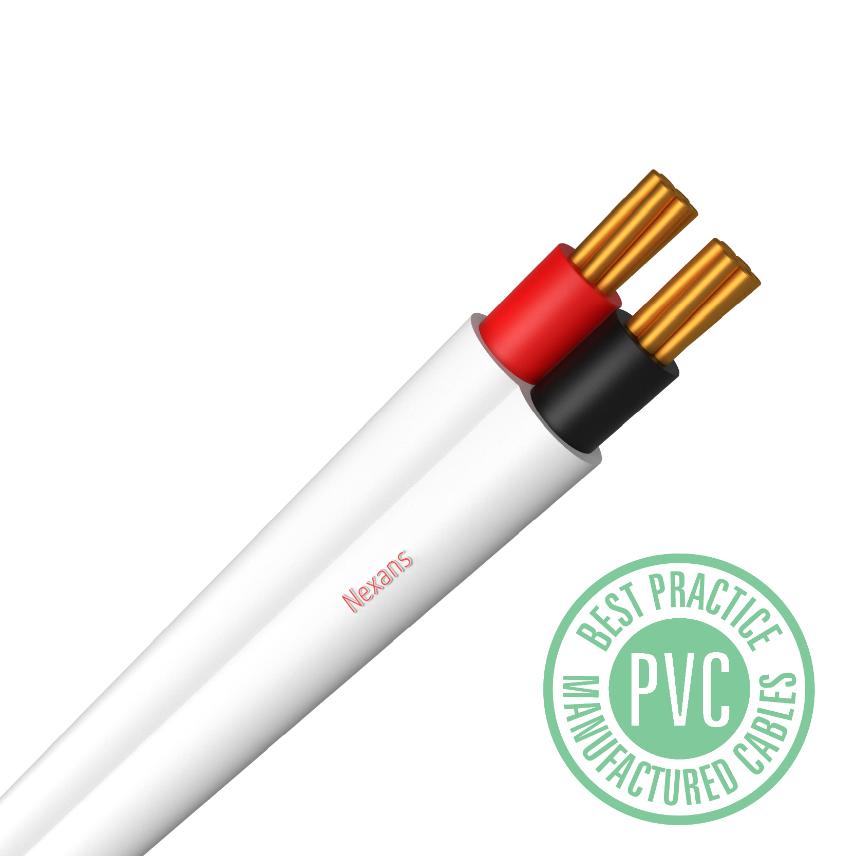

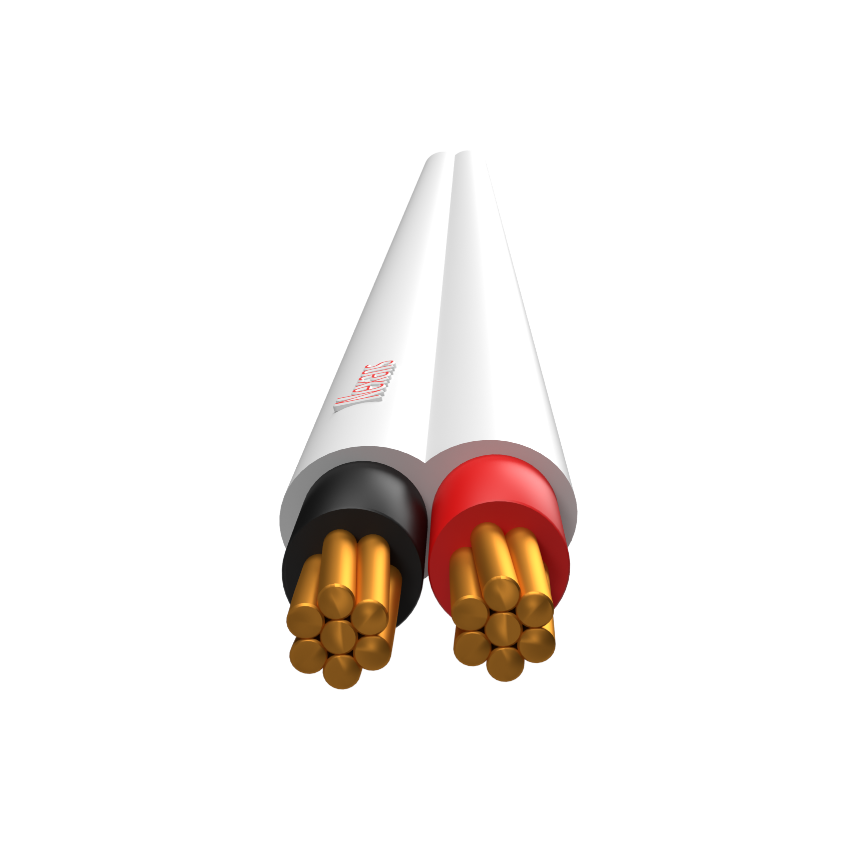

TPS - Two Core
TPS - Two Core
Cu conductors PVC insulation, PVC sheath. 450/750 V. Made to AS/NZS 5000.2
Read moreCU TPS 2X 16 BK 1HM
Nexans ref.
- Pilot wires: -
- Sheath colour: Black
- Conductor cross-section: - mm²
- Nominal overall diameter: -
- Approximate weight: 0.05 kg/m
CU TPS 2X 1.5 WH 1HM
Nexans ref. - Country ref. 7373.1
- Packaging: Spool (100m)
- Pilot wires: None
- Sheath colour: White
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 4.7 x 7.4
- Approximate weight: 0.07 kg/m
CU TPS 2X 2.5 WH 1HM
Nexans ref. - Country ref. 9880.1
- Packaging: Spool (100m)
- Pilot wires: None
- Sheath colour: White
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 5.3 x 8.7
- Approximate weight: 0.1 kg/m
CU TPS 2X 4 WH 1HM
Nexans ref. - Country ref. 5212.1
- Packaging: Spool (100m)
- Pilot wires: None
- Sheath colour: White
- Conductor cross-section: 4 mm²
- Nominal overall diameter: 6.3 x 10.5
- Approximate weight: 0.15 kg/m
CU TPS 2X 6 WH 1HM
Nexans ref. - Country ref. 8552.1
- Packaging: Spool (100m)
- Pilot wires: None
- Sheath colour: White
- Conductor cross-section: 6 mm²
- Nominal overall diameter: 7.0 x 11.6
- Approximate weight: 0.2 kg/m
CU TPS 2X 16 BK 1HM
Nexans ref. - Country ref. 6331.1
- Packaging: Spool (100m)
- Pilot wires: None
- Sheath colour: Black
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 10.0 x 17.2
- Approximate weight: 0.46 kg/m
CU TPS 2X 16 BK
Nexans ref. - Country ref. 6331
- Packaging: Cut to length (m)
- Pilot wires: None
- Sheath colour: Black
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 10.0 x 17.2
- Approximate weight: 0.46 kg/m
CU TPS 2X 25+4P BK
Nexans ref. - Country ref. 2399
- Packaging: Cut to length (m)
- Pilot wires: 4 mm²
- Sheath colour: Black
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 11.8 x 24.8
- Approximate weight: 0.77 kg/m
CU TPS 2X 25 WH
Nexans ref. - Country ref. 3816
- Packaging: Cut to length (m)
- Pilot wires: None
- Sheath colour: White
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 11.8 x 20.8
- Approximate weight: 0.73 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.2
Application
- Domestic, commercial and industrial general applications
- Fixed applications
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
PVC
Outer sheath
PVC
Type of conductor
Circular, stranded
Dimensional characteristics
Dimensional characteristics
Earth conductor cross section
- mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
450/750 V
Usage characteristics
Usage characteristics
Max. conductor temperature in service
75 °C
Resources
Resources
Documentation
Supplier Declaration of Conformity (SDoC) 5000.2
pdf — 191.7 kB
Current carrying capacities single phase (in Amps) - TPS - 2 cores and 2 cores plus earth
PVC insulation
For cables up to and including 450/750 V @ 50 Hz AC.
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 17 | 16 | 15 | 19 | 19 | 8 |
| 1.5 | 22 | 21 | 18 | 23 | 23 | 10 |
| 2.5 | 31 | 30 | 26 | 33 | 33 | 15 |
| 4.0 | 42 | 39 | 34 | 43 | 43 | 19 |
| 6.0 | 52 | 50 | 44 | 55 | 55 | 25 |
| 10.0 | 73 | 68 | 59 | 73 | 73 | 34 |
| 16.0 | 97 | 91 | 78 | 125 | 95 | 46 |
| 25.0 | 129 | 122 | 103 | 162 | 123 | 60 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation unenclosed |
