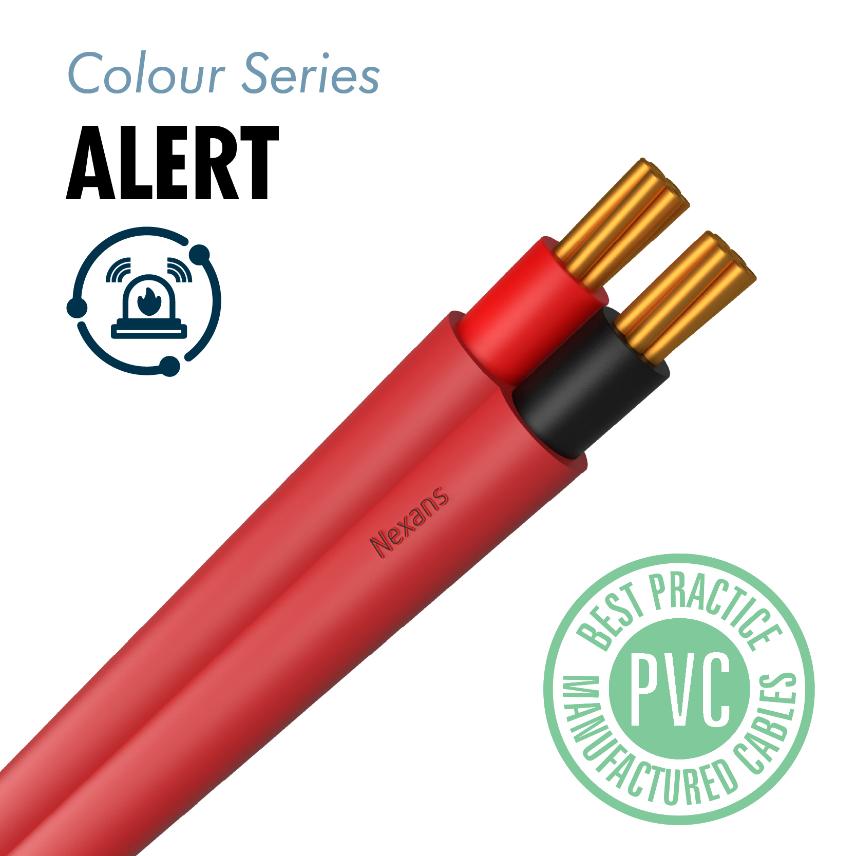

ALERT - 2C TPS
ALERT - 2C TPS
Cu conductors PVC insulation, Red PVC sheath. 450/750 V. Made to AS/NZS 5000.2
Read moreCU TPS 2X 1.0 RD 2HM
Nexans ref. CACP02A2002JBHF - Country ref. 8757.2

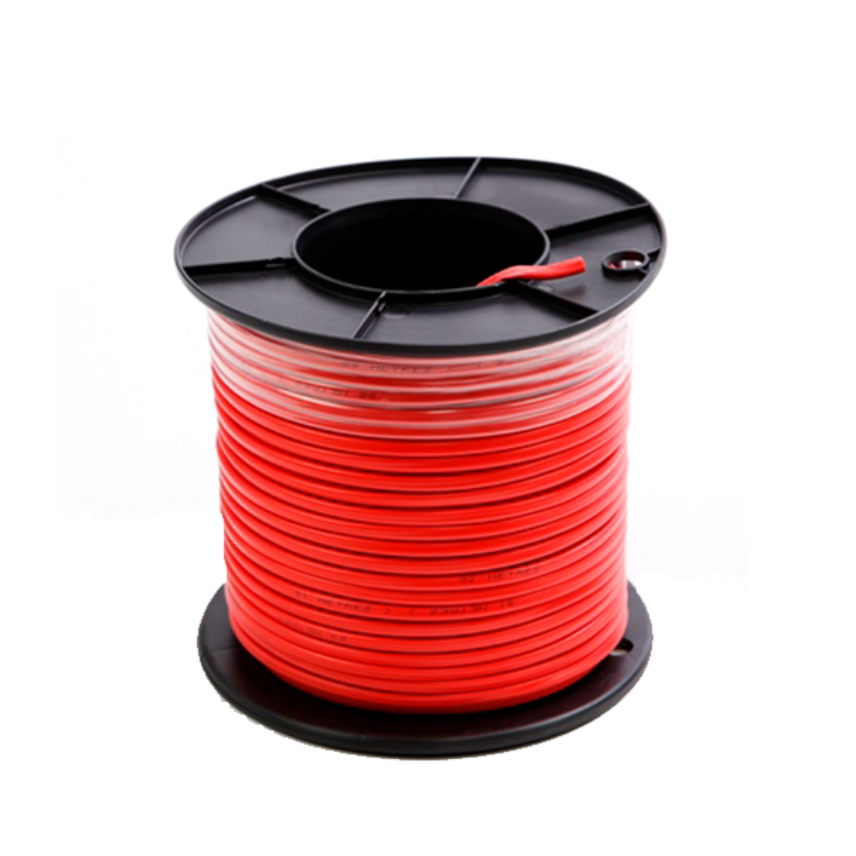

- Packaging: Spool (200m)
- Type of conductor: Solid copper
- Conductor cross-section: 1 mm²
- Nominal overall diameter: 4.0 x 6.3
- Approximate weight: 0.05 kg/m
CU TPS 2X 1.0 RD 1HM
Nexans ref. CACP02A1002JBHF - Country ref. 8757.1
- Packaging: Spool (100m)
- Type of conductor: Solid copper
- Conductor cross-section: 1 mm²
- Nominal overall diameter: 4.0 x 6.3
- Approximate weight: 0.05 kg/m
CU TPS 2X 1.5 RD 2HM
Nexans ref. CACQ05A2002JBHF - Country ref. 1049.2
- Packaging: Spool (200m)
- Type of conductor: Circular, stranded
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 4.7 x 7.4
- Approximate weight: 0.07 kg/m
CU TPS 2X 1.5 RD 1HM
Nexans ref. CACQ05A1002JBHF - Country ref. 1049.1
- Packaging: Spool (100m)
- Type of conductor: Circular, stranded
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 4.7 x 7.4
- Approximate weight: 0.07 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.2

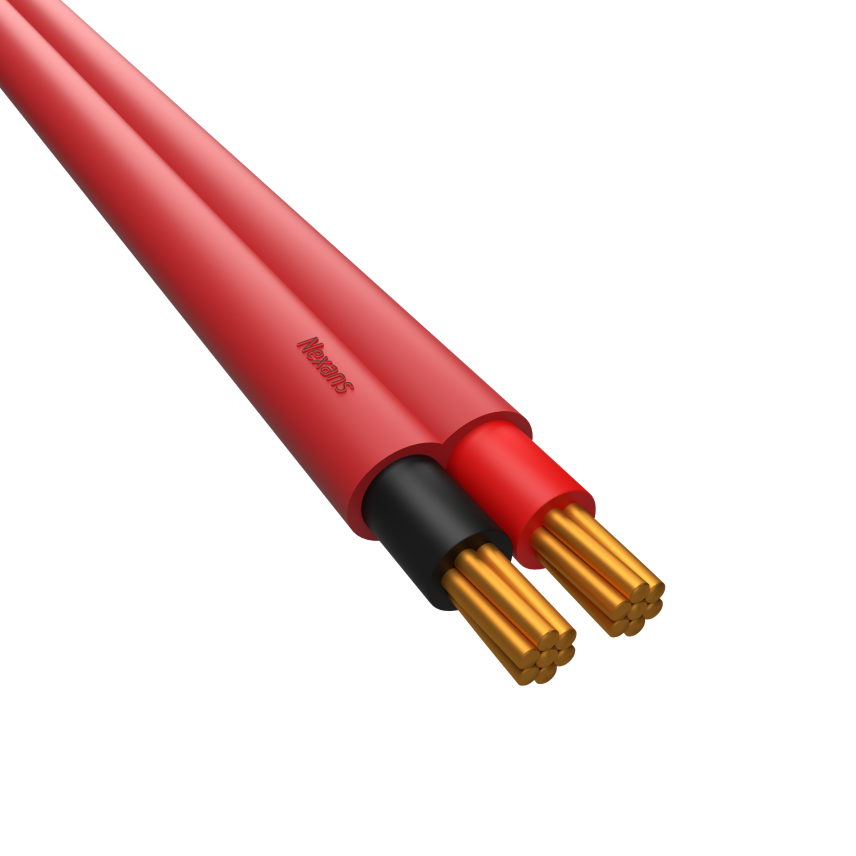

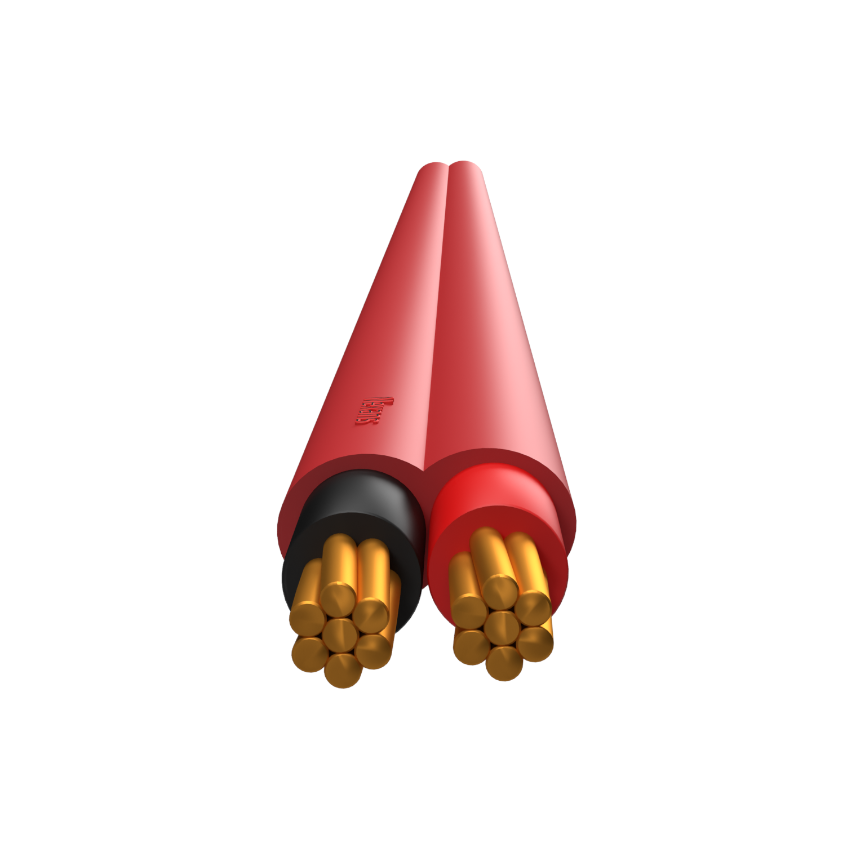

ALERT is a two phase TPS cable for specific use in fire alarm systems. The red sheath means the cable is easily identifiable when installed.
Applications:
- General application: domestic, commercial, industrial
- Designed specifically for fire alarm systems
- Fixed applications
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Pilot wires
None
Sheath colour
Red
Conductor material
Copper
Insulation
PVC
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Earth conductor cross section
- mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
450/750 V
Usage characteristics
Usage characteristics
Max. conductor temperature in service
75 °C
Resources
Resources
Documentation
Supplier Declaration of Conformity (SDoC) 5000.2
pdf — 191.7 kB
Current carrying capacities single phase (in Amps) - TPS - 2 cores and 2 cores plus earth
PVC insulation
For cables up to and including 450/750 V @ 50 Hz AC.
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 17 | 16 | 15 | 19 | 19 | 8 |
| 1.5 | 22 | 21 | 18 | 23 | 23 | 10 |
| 2.5 | 31 | 30 | 26 | 33 | 33 | 15 |
| 4.0 | 42 | 39 | 34 | 43 | 43 | 19 |
| 6.0 | 52 | 50 | 44 | 55 | 55 | 25 |
| 10.0 | 73 | 68 | 59 | 73 | 73 | 34 |
| 16.0 | 97 | 91 | 78 | 125 | 95 | 46 |
| 25.0 | 129 | 122 | 103 | 162 | 123 | 60 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation unenclosed |
