SWITCH - 3C TPS
SWITCH - 3C TPS
Cu conductors, PVC insulation, PVC sheath. 450/750 V. Made to AS/NZS 5000.2
Read moreCU TPS 3X 1.0 LT YE 1HM
Nexans ref. EACP02A1003YXRJ - Country ref. 5510.1

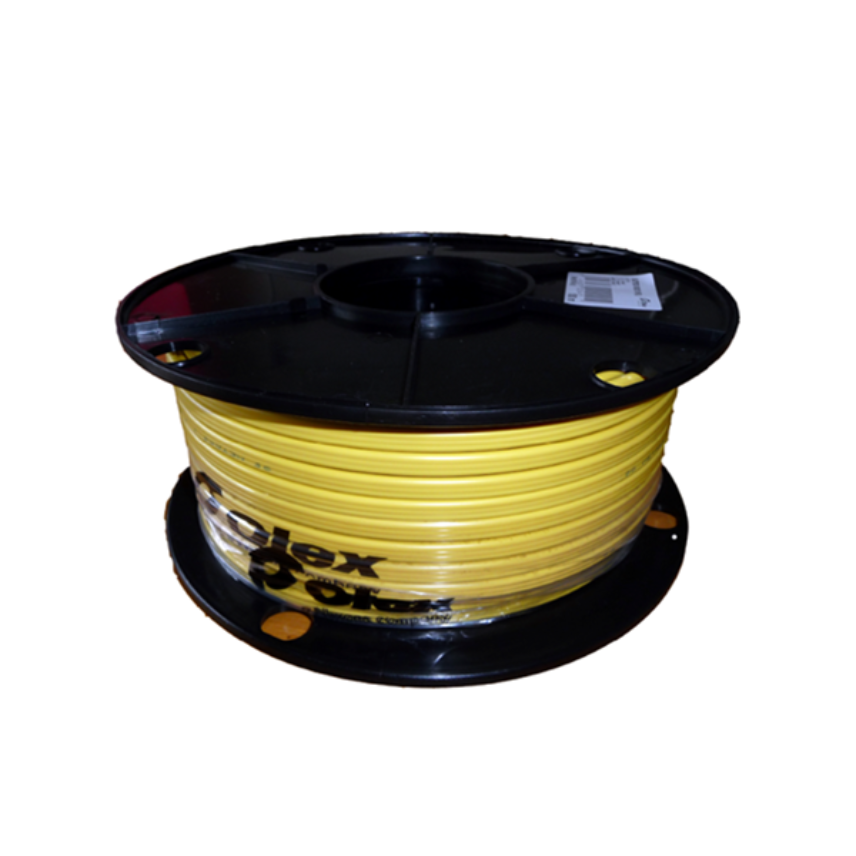

- Packaging: Spool (100m)
- Conductor cross-section: 1 mm²
- Approximate weight: 0.07 kg/m
CU TPS 3X 1.5 LT YE 1HM
Nexans ref. EACQ05A1003YXRJ - Country ref. 3171.1
- Packaging: Spool (100m)
- Conductor cross-section: 1.5 mm²
- Approximate weight: 0.09 kg/m
CU TPS 3X 2.5 LT YE 1HM
Nexans ref. EACP07A1003YXRJ - Country ref. 1560.1
- Packaging: Spool (100m)
- Conductor cross-section: 2.5 mm²
- Approximate weight: 0.14 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.2

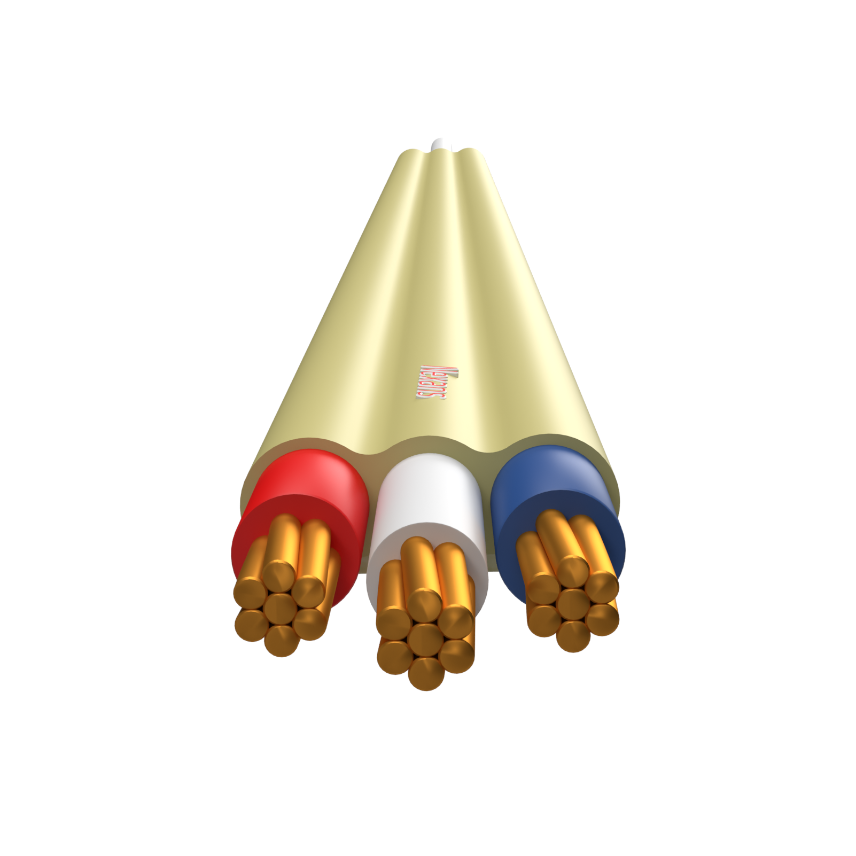

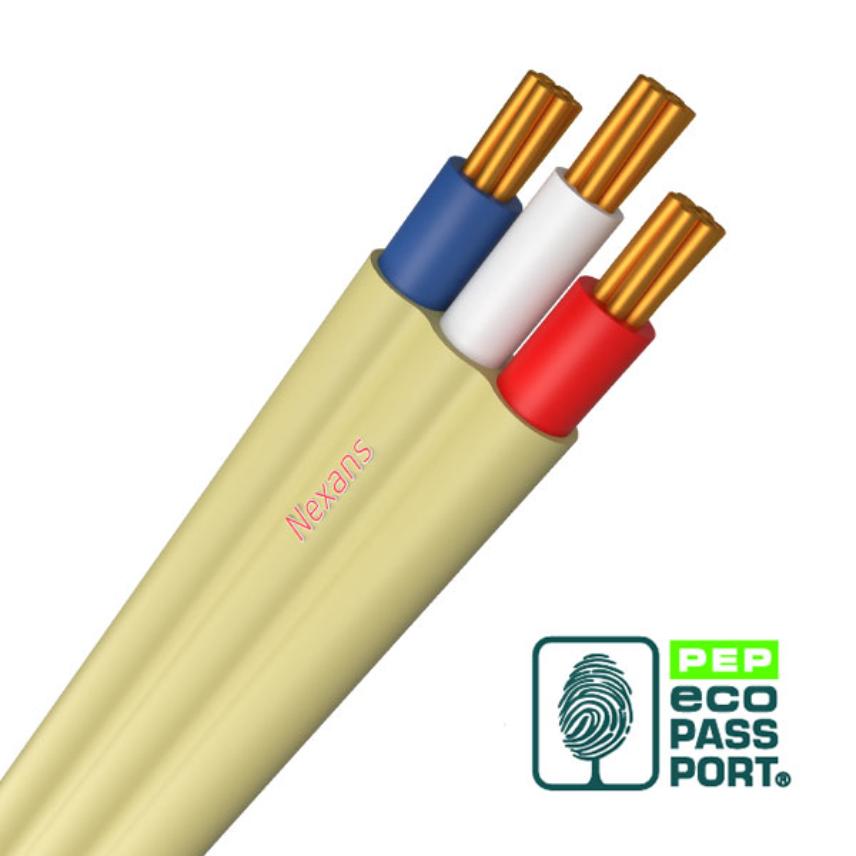

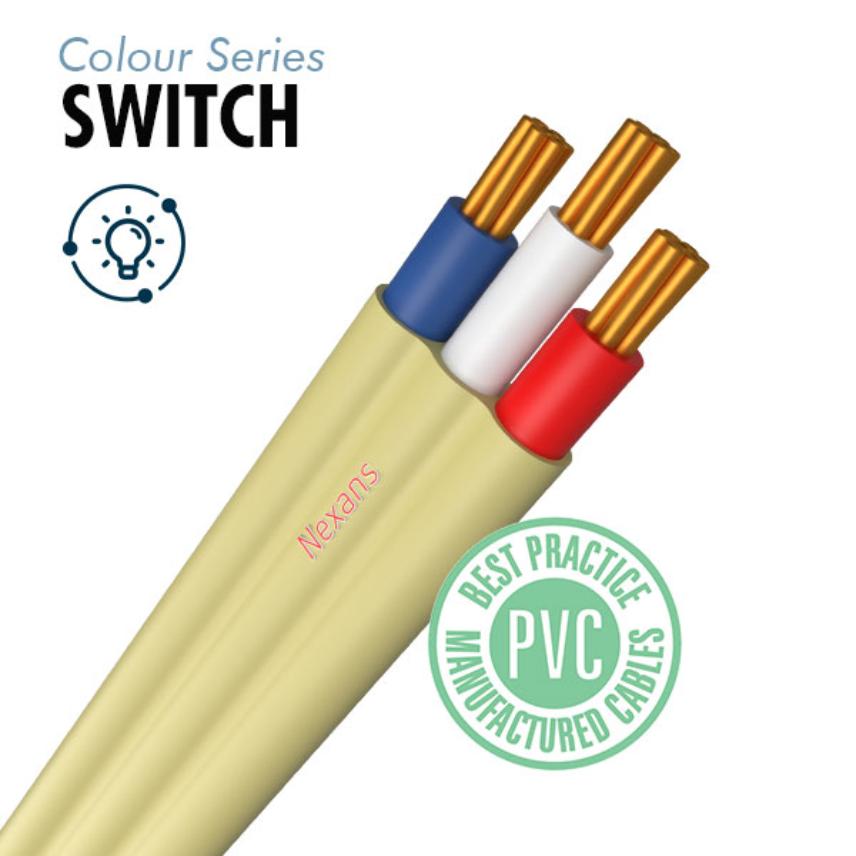

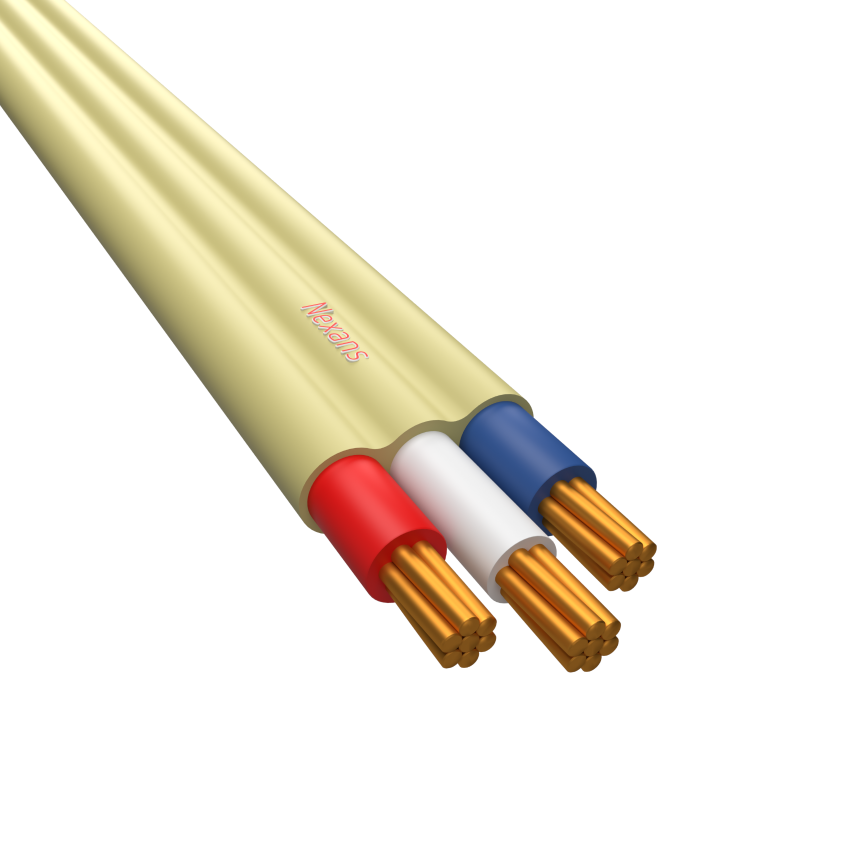

SWITCH is a three phase strap cable (no earth core) specifically designed for lighting installations. The yellow sheath makes the cable easily identifiable once installed.
Applications:
- General application: domestic, commercial, industrial
- Specifically for lighting applications
- Fixed applications
Characteristics
Characteristics
Construction characteristics
Construction characteristics
With Green/Yellow core
No
Sheath colour
Yellow
Conductor material
Copper
Insulation
PVC
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Earth conductor cross section
- mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
450/750 V
Usage characteristics
Usage characteristics
Max. conductor temperature in service
- °C
Resources
Resources
Documentation
Supplier Declaration of Conformity (SDoC) 5000.2
pdf — 191.7 kB
PEP_LV Cu TPS 3C/4C/5C 1.0mm -2.5mm
pdf — 4.4 MB
Current carrying capacities (in Amps) - 3 core, 3 core plus earth, 4 core TPS cables three phase
Copper conductor
Circular stranded (except 1 mm² which is solid)
Insulation PVC
Max. Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 15 | 14 | 13 | 15 | 15 | 7 |
| 1.5 | 18 | 17 | 16 | 20 | 20 | 9 |
| 2.5 | 26 | 25 | 23 | 28 | 28 | 13 |
| 4.0 | 35 | 33 | 29 | 36 | 36 | 17 |
| 6.0 | 46 | 42 | 38 | 46 | 46 | 22 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
