TPS - Single Core
TPS - Single Core

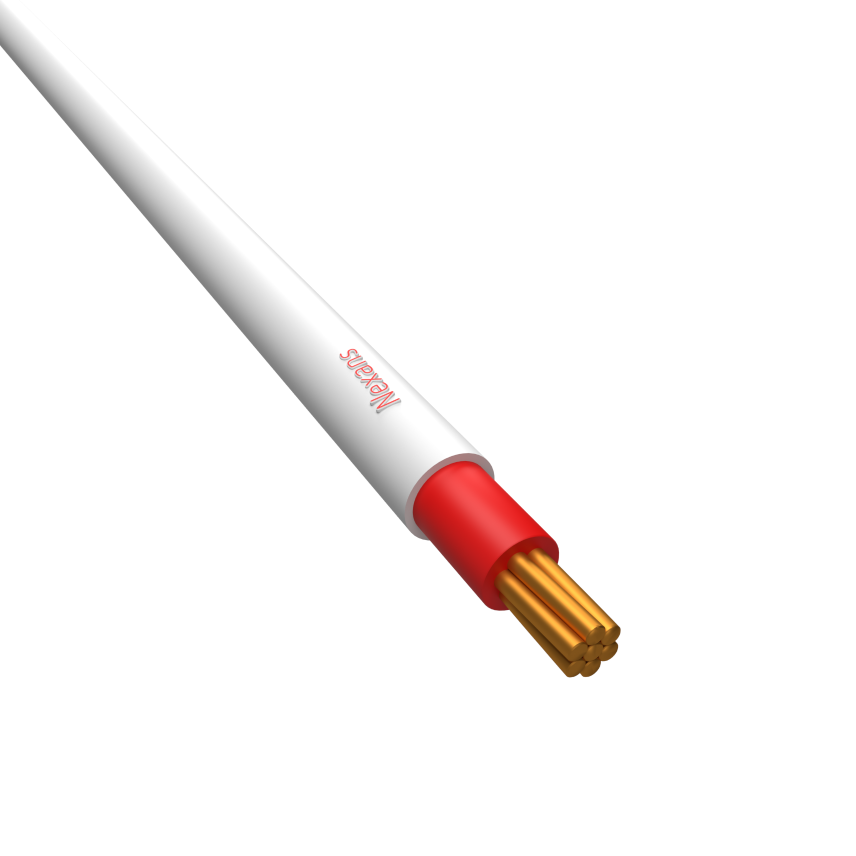

Cu Conductor, PVC insulation, PVC sheath. 450/750 V. Made to AS/NZS 5000.2
Read moreCU TPS 1X 1.5 BK WH 1HM
Nexans ref. AABP05A1001WTBK - Country ref. 9050.1
- Packaging: Spool (100m)
- Colour: Black/White
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 4.4 mm
- Approximate weight: 0.04 kg/m
CU TPS 1X 1.5 RD WH 1HM
Nexans ref. AABP05A1001WTRD - Country ref. 6766.1
- Packaging: Spool (100m)
- Colour: Red / white
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 4.4 mm
- Approximate weight: 0.04 kg/m
CU TPS 1X 10 BK WH 1HM
Nexans ref. AABP13A1001WVBK - Country ref. 1343.1
- Packaging: Spool (100m)
- Colour: Black/White
- Conductor cross-section: 10 mm²
- Nominal overall diameter: 7.8 mm
- Approximate weight: 0.15 kg/m
CU TPS 1X 10 RD WH 1HM
Nexans ref. AABP13A1001WVRD - Country ref. 6104.1
- Packaging: Spool (100m)
- Colour: Red / white
- Conductor cross-section: 10 mm²
- Nominal overall diameter: 7.8 mm
- Approximate weight: 0.15 kg/m
CU TPS 1X 16 BK WH 1HM
Nexans ref. AABP15A1001WVBK - Country ref. 1121.1
- Packaging: Spool (100m)
- Colour: Black/White
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 9.3 mm
- Approximate weight: 0.22 kg/m
CU TPS 1X 16 RD WH 1HM
Nexans ref. AABP15A1001WVRD - Country ref. 2627.1
- Packaging: Spool (100m)
- Colour: Red / white
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 9.3 mm
- Approximate weight: 0.22 kg/m
CU TPS 1X 2.5 BK WH 1HM
Nexans ref. AABP07A1001WTBK - Country ref. 7923.1
- Packaging: Spool (100m)
- Colour: Black/White
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 4.9 mm
- Approximate weight: 0.05 kg/m
CU TPS 1X 2.5 RD WH 1HM
Nexans ref. AABP07A1001WTRD - Country ref. 1635.1
- Packaging: Spool (100m)
- Colour: Red / white
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 4.9 mm
- Approximate weight: 0.05 kg/m
CU TPS 1X 4 BK WH 1HM
Nexans ref. AABP09A1001WTBK - Country ref. 7242.1
- Packaging: Spool (100m)
- Colour: Black/White
- Conductor cross-section: 4 mm²
- Nominal overall diameter: 6.0 mm
- Approximate weight: 0.07 kg/m
CU TPS 1X 4 RD WH 1HM
Nexans ref. AABP09A1001WTRD - Country ref. 2889.1
- Packaging: Spool (100m)
- Colour: Red / white
- Conductor cross-section: 4 mm²
- Nominal overall diameter: 6.0 mm
- Approximate weight: 0.07 kg/m
CU TPS 1X 6 BK WH 1HM
Nexans ref. AABP11A1001WTBK - Country ref. 8579.1
- Packaging: Spool (100m)
- Colour: Black/White
- Conductor cross-section: 6 mm²
- Nominal overall diameter: 6.5 mm
- Approximate weight: 0.1 kg/m
CU TPS 1X 6 RD WH 1HM
Nexans ref. AABP11A1001WTRD - Country ref. 5022.1
- Packaging: Spool (100m)
- Colour: Red / white
- Conductor cross-section: 6 mm²
- Nominal overall diameter: 6.5 mm
- Approximate weight: 0.1 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.2
Application
- Domestic, commercial and industrial general applications.
- Fixed applications
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Current carrying capacities single phase (in Amps) - TPS - single core
Copper conductor
Circular stranded (except 1 mm² which is solid)
Insulation PVC
Max. Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 18 | 15 | 15 | 24 | 23 | 20 | 7 |
| 1.5 | 24 | 18 | 21 | 31 | 29 | 25 | 9 |
| 2.5 | 33 | 26 | 27 | 43 | 40 | 35 | 14 |
| 4.0 | 44 | 35 | 36 | 56 | 52 | 45 | 18 |
| 6.0 | 56 | 46 | 47 | 71 | 64 | 57 | 23 |
| 10.0 | 76 | 62 | 62 | 94 | 85 | 76 | 31 |
| 16.0 | 101 | 82 | 80 | 134 | 109 | 98 | 41 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Buried in multi-way duct |
|
Cable surrounded by thermal insulation |
Current carrying capacities three phase (in Amps) - TPS - single core
Copper conductor
Circular stranded (except 1 mm² which is solid)
Insulation PVC
Max. Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu | Cu |
| 1.0 | 16 | 15 | 14 | 18 | 21 | 18 | 7 |
| 1.5 | 19 | 18 | 17 | 22 | 26 | 22 | 9 |
| 2.5 | 29 | 26 | 24 | 30 | 36 | 30 | 14 |
| 4.0 | 38 | 35 | 32 | 40 | 47 | 40 | 18 |
| 6.0 | 48 | 46 | 40 | 50 | 58 | 50 | 23 |
| 10.0 | 66 | 62 | 54 | 65 | 77 | 65 | 31 |
| 16.0 | 88 | 82 | 71 | 114 | 99 | 86 | 41 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Buried in multi-way duct |
|
Cable surrounded by thermal insulation |
