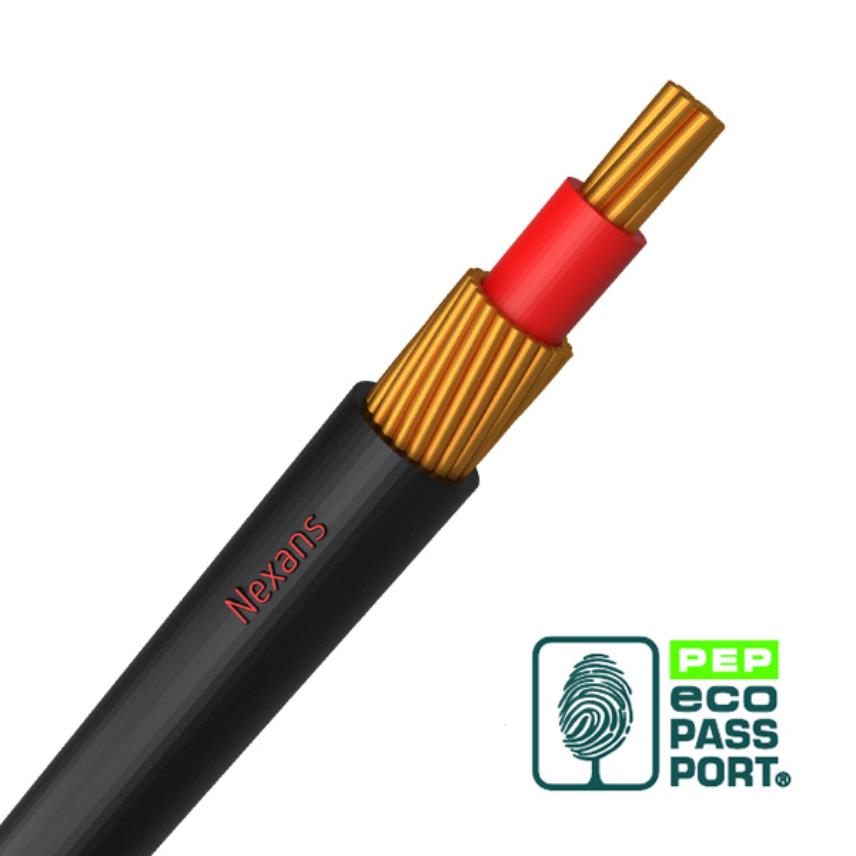

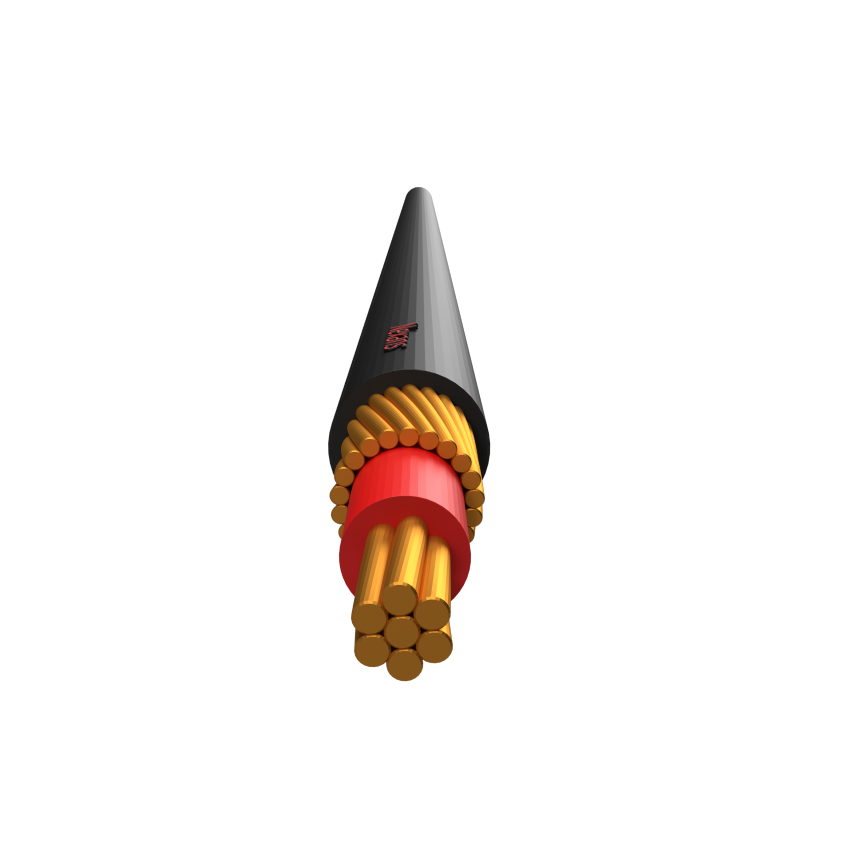

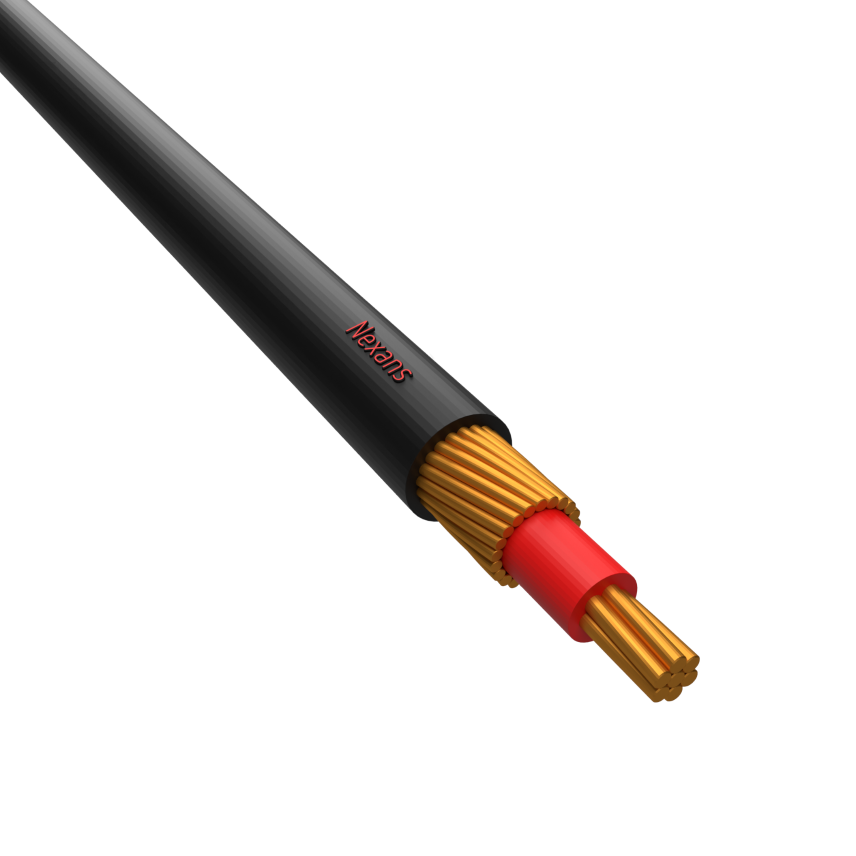

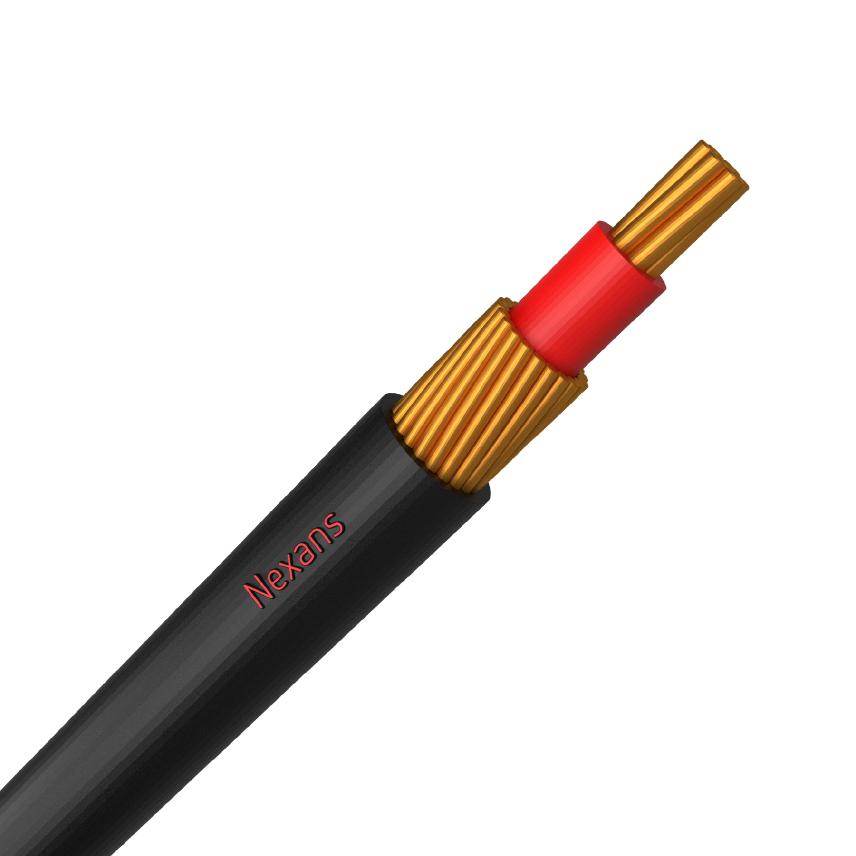

PVC Neutral Screened Cables single core and two cores

PVC Neutral Screened Cables single core and two cores PVC Neutral Screened Cables single core and two cores PVC Neutral Screened Cables single core and two cores PVC Neutral Screened Cables single core and two cores

PVC Neutral Screened Cables single core and two cores

Cu conductors, PVC insulation, Cu wire neutral screen, Black PVC sheath. 0.6/1 kV. Made to AS/NZS 4961.

Read more
Download all documents
Contact us

Products

Actions
Filters

  • products

CU NSCRN 1X 4 3.2

Nexans ref. BAGP09PX001CXRD - Country ref. 5643

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 12.5 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.24 kg/m



CU NSCRN 1X 6 3.2

Nexans ref. BAGP11PX001CXRD - Country ref. 6102

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 13.0 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.28 kg/m



CU NSCRN 1X 10 3.2

Nexans ref. BAGP13PX001CXRD - Country ref. 2850

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 14.2 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.38 kg/m



CU NSCRN 1X 16 3.2

Nexans ref. BAGP15PX001CXRD - Country ref. 3358

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 15.9 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.51 kg/m



CU NSCRN 1X 16 3.2 100M

Nexans ref. BAGP15P1001CXRD - Country ref. 3358.1

  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 15.9 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.51 kg/m



CU NSCRN 1X 16 3.2 250M

Nexans ref. BAGP15PX301CXRD - Country ref. 3358.25

  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 15.9 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.51 kg/m



CU NSCRN 1X 16 3.2 500M

Nexans ref. BAGP15PX501CXRD - Country ref. 3358.5

  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 15.9 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.51 kg/m



CU NSCRN 1X 16+4P 3.2

Nexans ref. QDBP15PX001CXRD - Country ref. 7817

  • Packaging: Cut to length (m)
  • Pilot wires: 4 mm²
  • Number of cores: 1
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 15.5 x 22.5
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.67 kg/m



CU NSCRN 1X 25 3.2

Nexans ref. BAGP16PX001CXRD - Country ref. 4061

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 18.2 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.74 kg/m



CU NSCRN 1X 25 3.3 250M

Nexans ref. BAGP16PX301CXRD - Country ref. 4061.25

  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 18.2 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.74 kg/m



CU NSCRN 1X 25 3.3 500M

Nexans ref. BAGP16PX501CXRD - Country ref. 4061.5

  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 18.2 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.74 kg/m



CU NSCRN 1X 25+4P 3.2

Nexans ref. QDBP16PX001CXRD - Country ref. 6998

  • Packaging: Cut to length (m)
  • Pilot wires: 4 mm²
  • Number of cores: 1
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 17.6 x 26.4
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.94 kg/m



CU NSCRN 1X 35 3.2

Nexans ref. BAGP18PX001CXRD - Country ref. 4620

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 19.4 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.96 kg/m



CU NSCRN 1X 50 3.2

Nexans ref. BAGP19PX001CXRD - Country ref. 1682

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 1
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 21.8 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 1.22 kg/m



CU NSCRN 2X 2.5 3.2

Nexans ref. DAEP07PX002CXAB - Country ref. 5862

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 11.5 x 15.3
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.28 kg/m



CU NSCRN 2X 4 3.2

Nexans ref. DAEP09PX002CXAB - Country ref. 7551

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 12.5 x 17.1
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.35 kg/m



CU NSCRN 2X 4 3.2

Nexans ref. DAEP09PX302CXAB - Country ref. 7551.25

  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 12.5 x 17.1
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.35 kg/m



CU NSCRN 2X 4 1.8

Nexans ref. DAEP09AA002CXAB - Country ref. 2267

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 9.6 x 14.2
  • Nominal outer sheath thickness: 1.8 mm
  • Approximate weight: 0.26 kg/m



CU NSCRN 2X 6 3.2

Nexans ref. DAEP11PX002CXAB - Country ref. 4348

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 13.0 x 18.3
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.42 kg/m



CU NSCRN 2X 6 3.2 250M

Nexans ref. DAEP11PX302CXAB - Country ref. 4348.25

  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 13.0 x 18.3
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.42 kg/m



CU NSCRN 2X 6 3.2 5HM

Nexans ref. DAEP11PX502CXAB - Country ref. 4348.5

  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 13.0 x 18.3
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.42 kg/m



CU NSCRN 2X 10 3.2

Nexans ref. DAEP13PX002CXAB - Country ref. 6585

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 14.1 x 20.1
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.56 kg/m



CU NSCRN 2X 16 3.2

Nexans ref. DAEP15PX002CXAB - Country ref. 1520

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 15.5 x 22.5
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.76 kg/m



CU NSCRN 2X 16 3.2 250M

Nexans ref. DAEP15PX302CXAB - Country ref. 1520.25

  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 15.5 x 22.5
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.76 kg/m



CU NSCRN 2X 16+4P 3.2

Nexans ref. QDIP15PX002CXAB - Country ref. 7286

  • Packaging: Cut to length (m)
  • Pilot wires: 4 mm²
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 23.4 mm
  • Nominal overall diameter: -
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.92 kg/m



CU NSCRN 2X 2.5 3.2 250M

Nexans ref. DAEP07PX302CXAB - Country ref. 5862.25

  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 11.5 x 15.3
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.28 kg/m



CU NSCRN 2X 2.5 3.2 5HM

Nexans ref. DAEP07PX502CXAB - Country ref. 5862.5

  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 11.5 x 15.3
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 0.28 kg/m



CU NSCRN 2X 25 3.2

Nexans ref. DAEP17PX002CXAB - Country ref. 5242

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 17.6 x 26.4
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 1.1 kg/m



CU NSCRN 2X 35 3.2

Nexans ref. DAEP18PX002CXAB - Country ref. 2135

  • Packaging: Cut to length (m)
  • Pilot wires: None
  • Number of cores: 2
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: - mm
  • Nominal overall diameter: 18.8 x 28.9
  • Nominal outer sheath thickness: 3.2 mm
  • Approximate weight: 1.4 kg/m



Description

Description

Standards

  • Product
    AS/NZS 4961

Application

Industrial, commercial and domestic applications

For use in various situations to supply the main power from the point of supply to buildings, equipment, sheds, eg, switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc.

Insulation Colours

No. Cores Insulation Colour
1 Red
1 (plus pilot) Red, Orange Pilot
2 Red, White
2 (plus pilot) Red, White, Orange Pilot



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Type of conductor
Circular, stranded
Insulation
PVC
Screen
Copper wire
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV

Usage characteristics

Usage characteristics

Max. conductor temperature in service
75 °C

Resources

Resources

Documentation

xls — 0 B
Download
Supplier Declaration of Conformity (SDoC) - Neutral Screen pdf — 191.6 kB
Download
NXNS-00297-V01.01-EN pdf — 4.6 MB
Download
NXNS-00298-V01.01-EN pdf — 4.6 MB
Download

Current carrying capacities single phase (in Amps) - PVC neutral single core

Copper conductor

Circular stranded

Insulation PVC

Max. Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu
4.0 42 39 34 43 43 19
6.0 52 50 44 55 55 25
10.0 73 68 59 73 73 34
16.0 97 91 78 125 95 46
25.0 129 122 103 162 123 60
35.0 158 149 128 196 150 74
50.0 194 181 152 232 178 0
Air Spaced from Surface, Unenclosed
Air touching, unenclosed
Air enclosed
Buried direct
Buried in single-way duct
Cable surrounded by thermal insulation, unenclosed

Current carrying capacities single phase (in Amps) - Two core PVC neutral

Copper conductor

Circular stranded

Insulation PVC

Max. Conductor Temperature 75⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu
2.5 26 25 23 28 28 13
4.0 35 33 29 36 36 17
6.0 46 42 38 46 46 22
10.0 62 58 50 61 61 29
16.0 82 78 66 106 80 39
25.0 111 104 87 138 103 52
35.0 137 128 107 165 125 64
Air Spaced from Surface, Unenclosed
Air touching, unenclosed
Air enclosed
Buried direct
Buried in single-way duct
Cable surrounded by thermal insulation, unenclosed
Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
