XLPE Neutral Screened Cables
XLPE Neutral Screened Cables

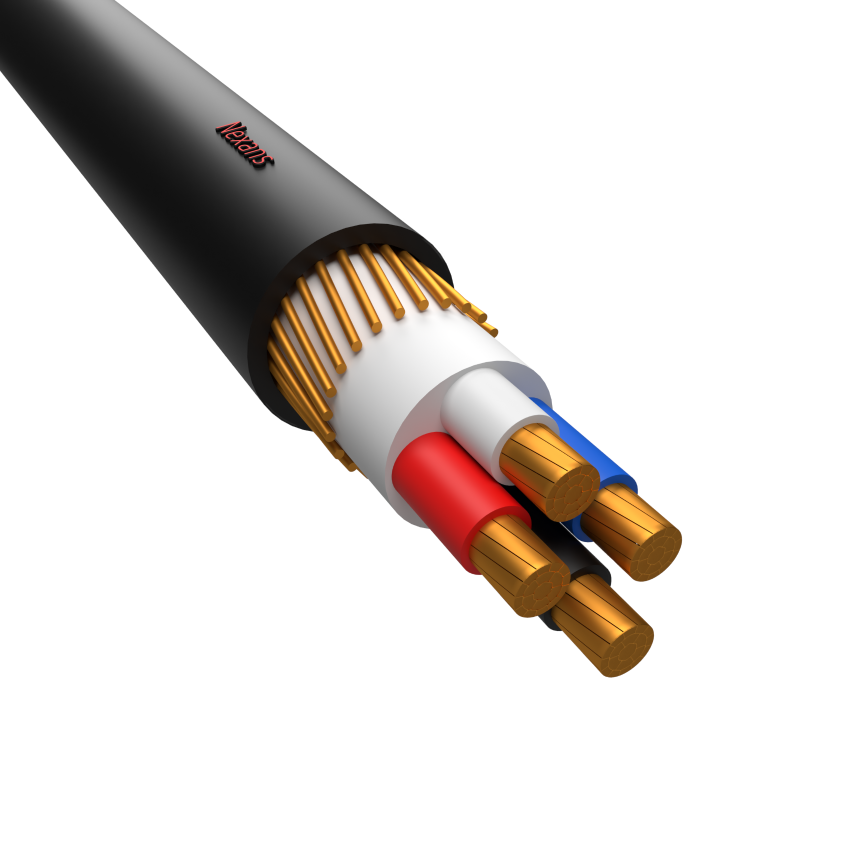

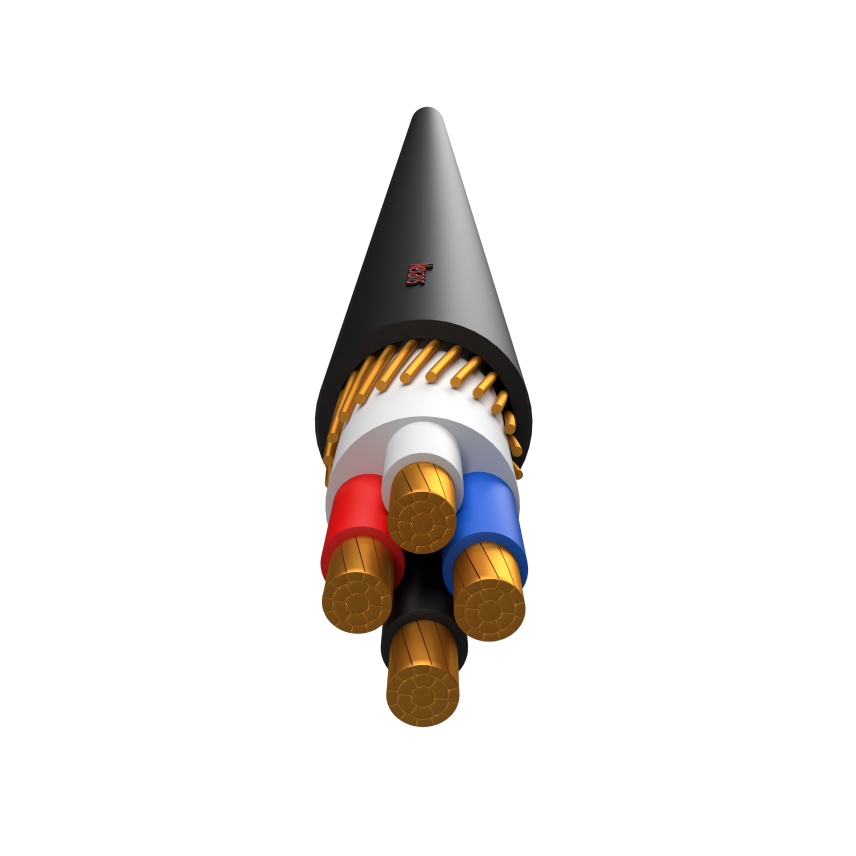

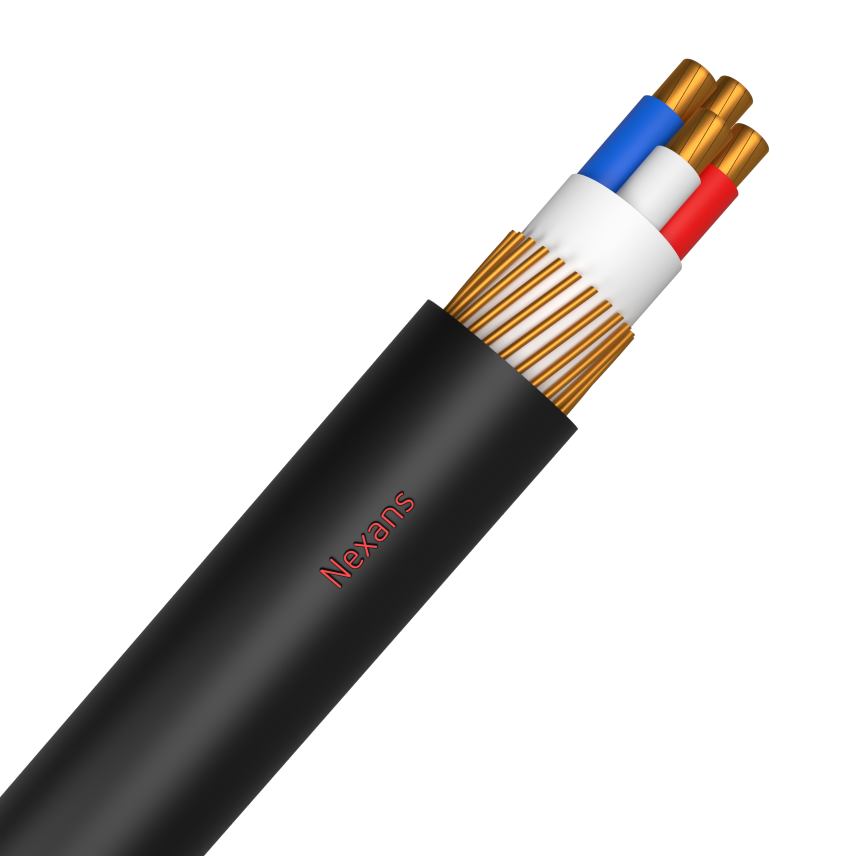

Cu conductors, XLPE insulation, Laid up, Cu wire neutral screen, Black PVC sheath. 0.6/1 kV. Made to AS/NZS 4961.
Read moreCU NSCRN XL 3X 16+4P 3.2
Nexans ref. QDXP15AA003CXRJ - Country ref. 5687
- Packaging: Cut to length (m)
- Pilot wires: 4 mm²
- Type of conductor: Circular, stranded
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 24.8 mm
- Approximate weight: 1.05 kg/m
CU NSCRN XL 3X 25^ 3.2 250M
Nexans ref. FEGC16PX303CXRJ - Country ref. 8090.25
- Pilot wires: None
- Type of conductor: Circular compacted stranded
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 25.4 mm
- Approximate weight: 1.35 kg/m
CU NSCRN XL 3X 25^ 3.2
Nexans ref. FEGC16PX003CXRJ - Country ref. 8090
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Circular compacted stranded
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 25.4 mm
- Approximate weight: 1.35 kg/m
CU NSCRN XL 3X 35 3.2
Nexans ref. FEGV18PX003CXRJ - Country ref. 3281
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Sector-shaped, stranded
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 26.1 mm
- Approximate weight: 1.72 kg/m
CU NSCRN XL 3X 50
Nexans ref. FEGV19PX003CXRJ - Country ref. 4140
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Sector-shaped, stranded
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 29.4 mm
- Approximate weight: 2.25 kg/m
CU NSCRN XL 3X 70
Nexans ref. FEGV20PX003CXRJ - Country ref. 1616
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Sector-shaped, stranded
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 33.5 mm
- Approximate weight: 3.12 kg/m
CU NSCRN XL 3X 95 3.2
Nexans ref. FEGV21PX003CXRJ - Country ref. 7500
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Sector-shaped, stranded
- Number of cores: 3
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 37.1 mm
- Approximate weight: 4.18 kg/m
CU NSCRN XL 4X 16
Nexans ref. HEGP15PX004CXEM - Country ref. 7626
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Circular, stranded
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 24.7 mm
- Approximate weight: 1.13 kg/m
CU NSCRN XL 4X 25^ 3.2
Nexans ref. HEGC17PX004CXEM - Country ref. 1559
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Circular compacted stranded
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 27.9 mm
- Approximate weight: 1.65 kg/m
CU NSCRN XL 4X 35 3.2
Nexans ref. HEGV35PX004CXEM - Country ref. 3176
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Sector-shaped, stranded
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 29.5 mm
- Approximate weight: 2.11 kg/m
CU NSCRN XL 4X 50
Nexans ref. HEGV36PX004CXEM - Country ref. 7610
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Sector-shaped, stranded
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 33.0 mm
- Approximate weight: 2.78 kg/m
CU NSCRN XL 4X 70
Nexans ref. HEGV20PX004CXEM - Country ref. 5203
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Sector-shaped, stranded
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 37.1 mm
- Approximate weight: 3.85 kg/m
CU NSCRN XL 4X 95
Nexans ref. HEGV21PX004CXEM - Country ref. 6214
- Packaging: Cut to length (m)
- Pilot wires: None
- Type of conductor: Sector-shaped, stranded
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 40.3 mm
- Approximate weight: 5.15 kg/m
Description
Description
Standards
-
ProductAS/NZS 4961
Application
- Industrial, commercial and domestic applications.
- For use in various situations to supply the main power from the point of supply to buildings, equipment, shed, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc
- Cable can be buried direct in NZ (3.2 mm sheath).
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Current carrying capacities three phase (in Amps) - Three & Four Conductor XLPE neutral
Copper conductor
Shaped stranded except 25 mm² which is compact stranded for XLPE Neutral Screen, three core
Circular stranded for Three core plus pilot
Shaped stranded except 16 mm² circular stranded and 25 mm² Compact stranded for four core
Insulation XLPE
Max. Conductor Temperature 90⁰C
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 16.0 | 97 | 91 | 75 | 118 | 87 | 45 |
| 25.0 | 131 | 122 | 100 | 153 | 114 | 62 |
| 35.0 | 162 | 151 | 125 | 184 | 139 | 76 |
| 50.0 | 198 | 185 | 150 | 218 | 166 | 0 |
| 70.0 | 252 | 234 | 190 | 269 | 207 | 0 |
| 95.0 | 311 | 289 | 230 | 323 | 249 | 0 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
