PVC Neutral Screened Cables
PVC Neutral Screened Cables

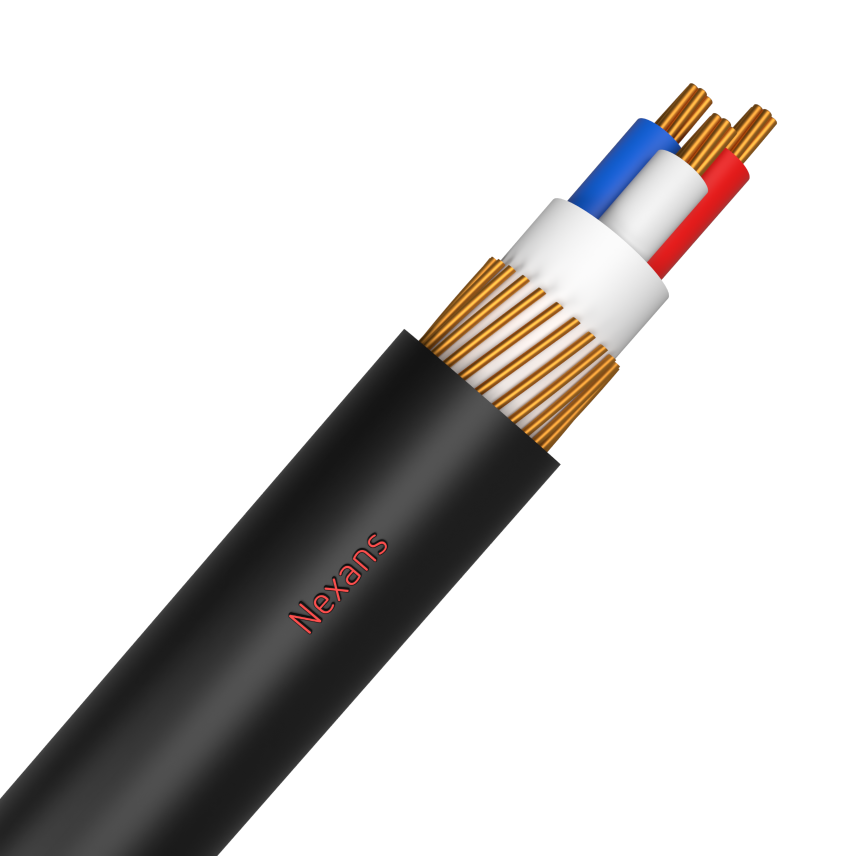

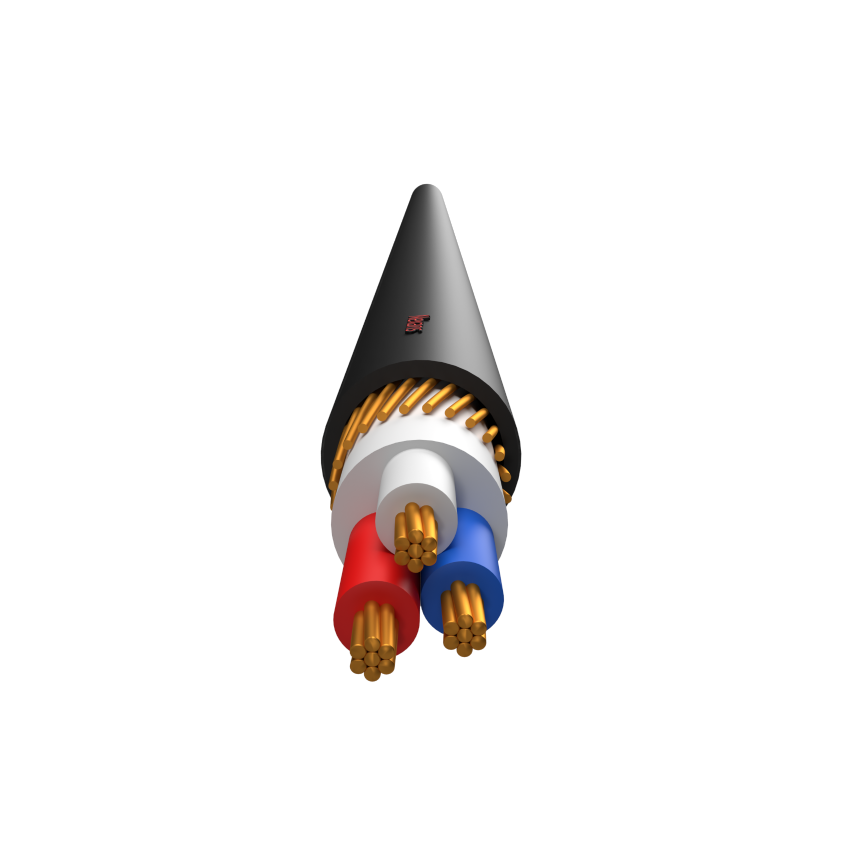

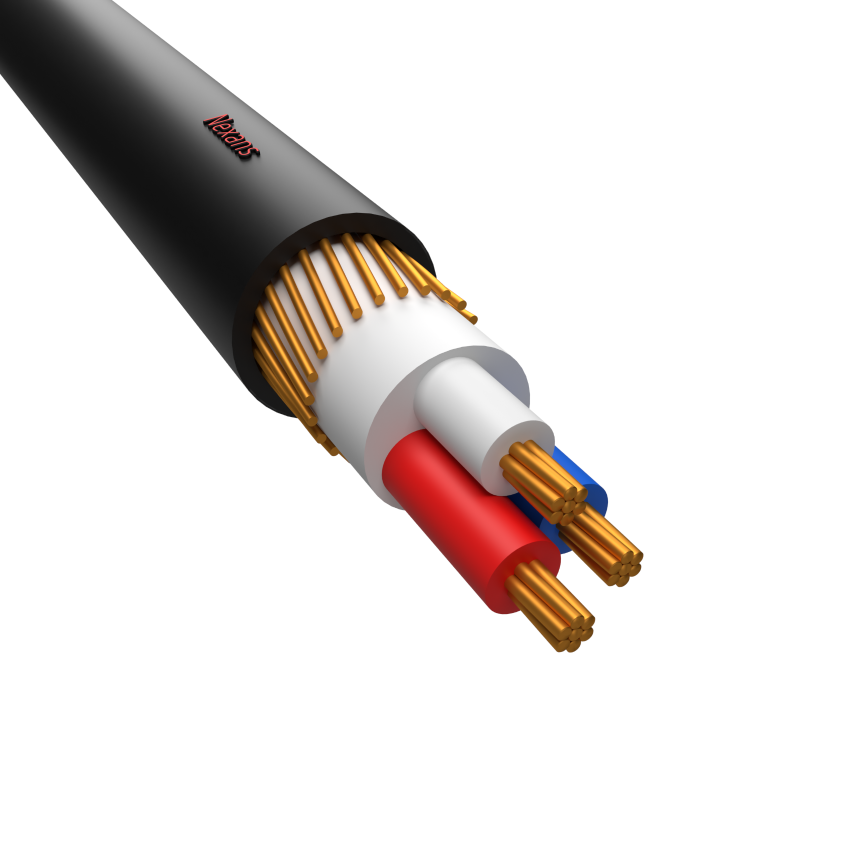

Cu conductors, PVC insulation, Cu wire neutral screen, Black PVC sheath. 0.6/1 kV. Made to AS/NZS 4961.
Read moreCU NSCRN 3X 2.5 3.2
Nexans ref. FAGP07PX003CXRJ - Country ref. 8070
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 16.0 mm
- Approximate weight: 0.36 kg/m
CU NSCRN 3X 10 3.2
Nexans ref. FAGP13PX003CXRJ - Country ref. 6337
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 10 mm²
- Nominal overall diameter: 21.0 mm
- Approximate weight: 0.74 kg/m
CU NSCRN 3X 16 3.2
Nexans ref. FAGP15PX003CXRJ - Country ref. 1267
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 23.6 mm
- Approximate weight: 1.01 kg/m
CU NSCRN 3X 16 3.2 250m
Nexans ref. FAGP15PX303CXRJ - Country ref. 1267.25
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 23.6 mm
- Approximate weight: 1.01 kg/m
CU NSCRN 3X 16 3.2 500m
Nexans ref. FAGP15PX503CXRJ - Country ref. 1267.5
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 23.6 mm
- Approximate weight: 1.01 kg/m
CU NSCRN 3X 4 3.2
Nexans ref. FAGP09PX003CXRJ - Country ref. 2895
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Nominal overall diameter: 18.1 mm
- Approximate weight: 0.47 kg/m
CU NSCRN 3X 6 3.2
Nexans ref. FAGP11PX003CXRJ - Country ref. 8500
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Nominal overall diameter: 19.3 mm
- Approximate weight: 0.56 kg/m
CU NSCRN 4X 10 3.2
Nexans ref. HAGP13PX004CXEM - Country ref. 7823
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Nominal overall diameter: 22.6 mm
- Approximate weight: 0.88 kg/m
CU NSCRN 4X 2.5 3.2
Nexans ref. HAGP07PX004CXEM - Country ref. 7086
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 17.0 mm
- Approximate weight: 0.41 kg/m
CU NSCRN 4X 4 3.2
Nexans ref. HAGP09PX004CXEM - Country ref. 1016
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Nominal overall diameter: 19.3 mm
- Approximate weight: 0.55 kg/m
CU NSCRN 4X 6 3.2
Nexans ref. HAGP11PX004CXEM - Country ref. 3341
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Nominal overall diameter: 20.6 mm
- Approximate weight: 0.66 kg/m
Description
Description
Standards
-
ProductAS/NZS 4961
Application
- Industrial, commercial and domestic applications
- For use in various situations to supply the main power from the point of supply to buildings, equipment, sheds, eg, switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Pilot wires
None
Conductor material
Copper
Type of conductor
Circular, stranded
Insulation
PVC
Screen
Copper wire
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Nominal overall diameter
-
Nominal outer sheath thickness
3.2 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
75 °C
Resources
Resources
Documentation
Current carrying capacities three phase (in Amps) - Three & Four Core PVC neutral
Copper conductor
Circular stranded
Insulation PVC
Max. Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 2.5 | 26 | 25 | 23 | 28 | 28 | 13 |
| 4.0 | 35 | 33 | 29 | 36 | 36 | 17 |
| 6.0 | 46 | 42 | 38 | 46 | 46 | 22 |
| 10.0 | 62 | 58 | 50 | 61 | 61 | 29 |
| 16.0 | 82 | 78 | 66 | 106 | 80 | 39 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
