AL Neutral Screened Cables single core
AL Neutral Screened Cables single core

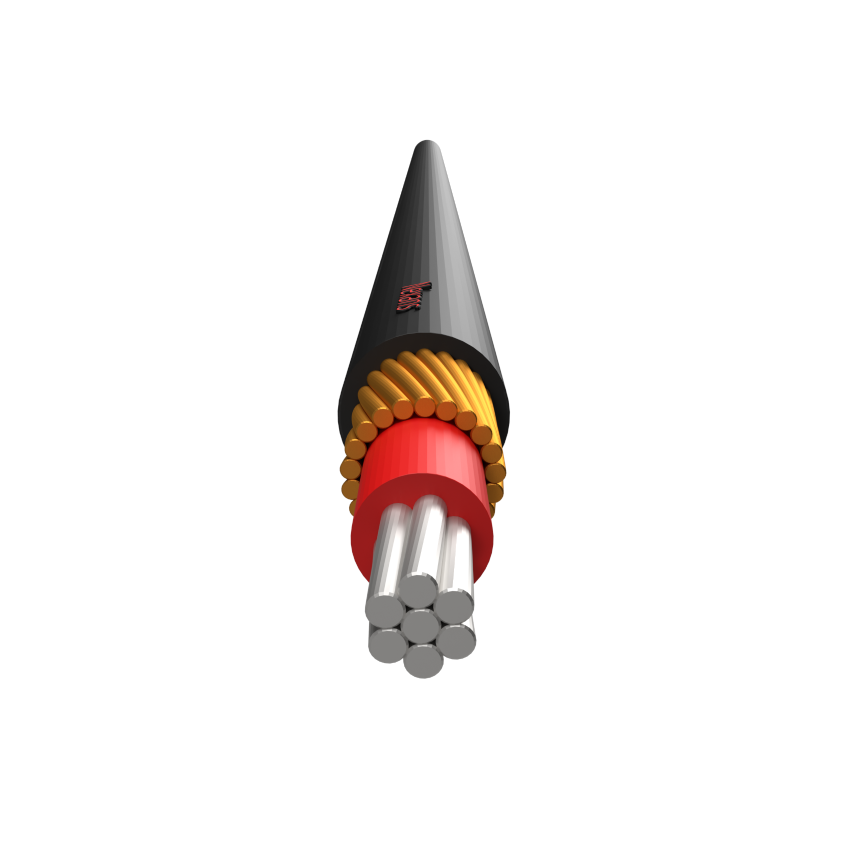

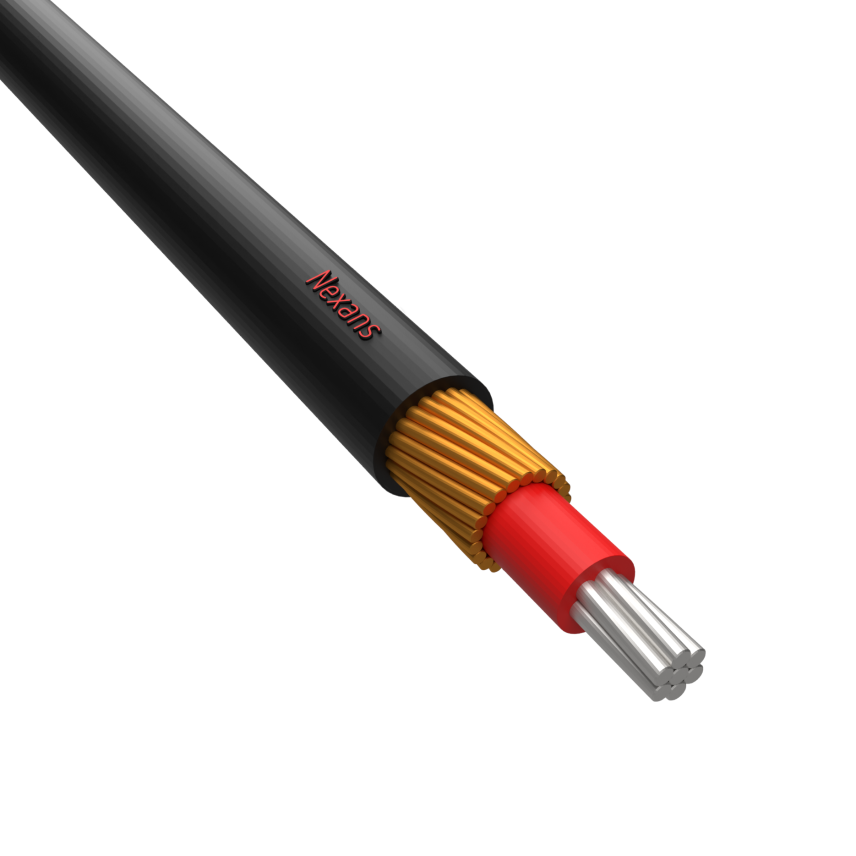

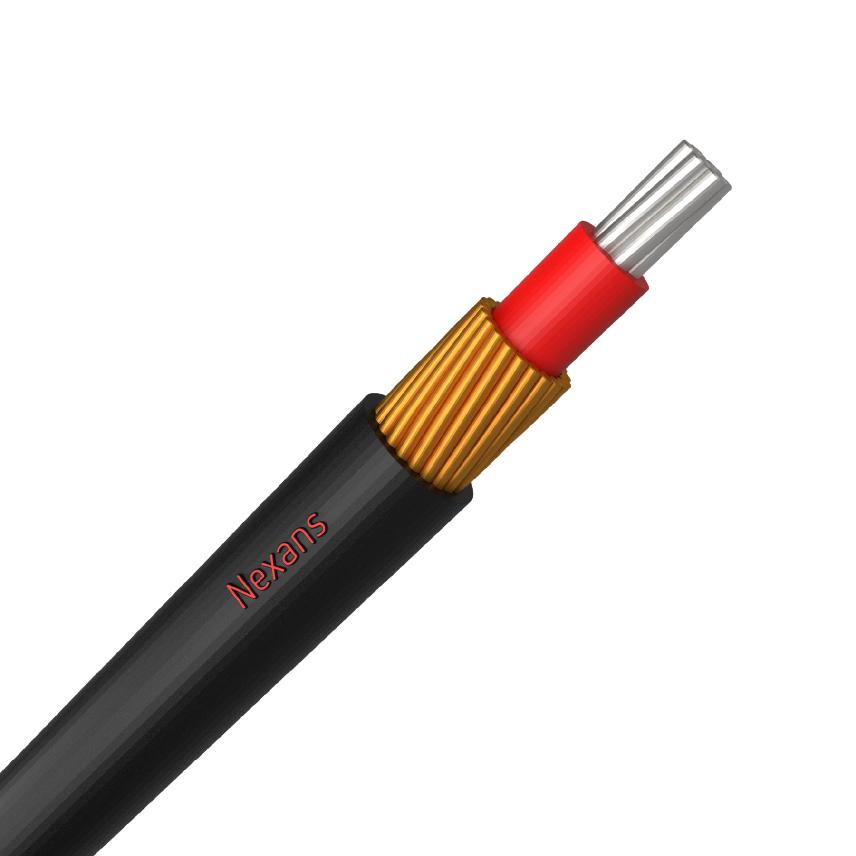

Al conductors, XLPE insulation, Laid up, Cu neutral screen, Black PVC sheath. 0.6/1 kV. Made to AS/NZS 4961.
Read moreAL NSCRN XL 1X 120^ BK 3.2
Nexans ref. BDGH43PX001CXRD - Country ref. 6550
- Packaging: Cut to length (m)
- Pilot wires: None
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 26.2 mm
- Approximate weight: 1.41 kg/m
AL NSCRN XL 1X 185^ BK 3.2
Nexans ref. BDGH25PX001CXRD - Country ref. 5150
- Packaging: Cut to length (m)
- Pilot wires: None
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 31.4 mm
- Approximate weight: 2.08 kg/m
AL NSCRN XL 1X 70^ + 4P 3.2
Nexans ref. QDQH20PX001CXRD - Country ref. 5808
- Packaging: Cut to length (m)
- Pilot wires: 4 mm²
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 29.2 mm
- Approximate weight: 1.06 kg/m
AL NSCRN XL 1X 70^ BK 3.2
Nexans ref. BDGH20PX001CXRD - Country ref. 9123
- Packaging: Cut to length (m)
- Pilot wires: None
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 21.5 mm
- Approximate weight: 0.89 kg/m
AL NSCRN XL 1X 95^ BK 3.2
Nexans ref. BDGH21PX001CXRD - Country ref. 1369
- Packaging: Cut to length (m)
- Pilot wires: None
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 23.9 mm
- Approximate weight: 1.15 kg/m
Description
Description
Standards
-
ProductAS/NZS 4961
Application
- Industrial, commerical and domestic applications.
- For use in various situations to supply the main power from the point of supply to buildings, equipment shed, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of conductor
Circular compacted
Conductor material
Aluminum
Insulation
XLPE
Screen
Copper wire
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Nominal overall diameter
-
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
U.V resistance
Yes
Resources
Resources
Documentation
Current carrying capacities(in Amps) - Single core Al Neutral Screen single phase
Aluminium conductor
Circular compacted
Insulation XLPE
Max. Conductor Temperature 90⁰C
Conductor cross-section |
|
|
|
|
|
---|---|---|---|---|---|
mm² | Al | Al | Al | Al | Al |
70.0 | 229 | 213 | 171 | 249 | 189 |
95.0 | 283 | 263 | 213 | 299 | 231 |
120.0 | 329 | 307 | 244 | 341 | 264 |
185.0 | 436 | 406 | 322 | 433 | 345 |
Air Spaced from Surface, Unenclosed |
Air touching, unenclosed |
Air enclosed |
Buried direct |
Buried in single-way duct |
