AL Neutral Screened Cables
AL Neutral Screened Cables

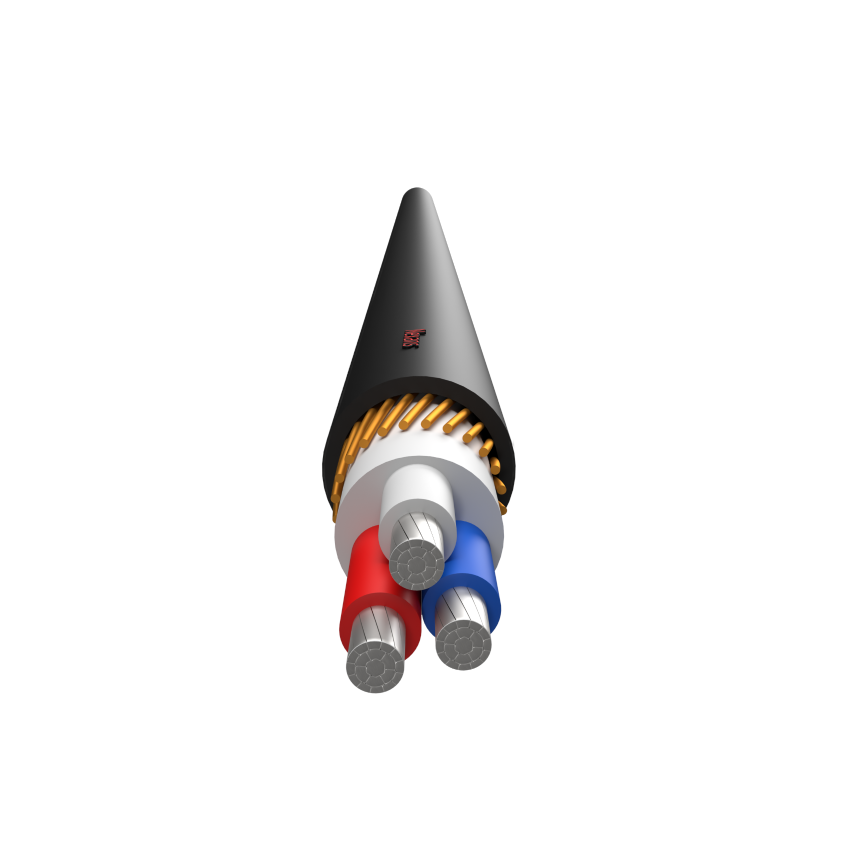

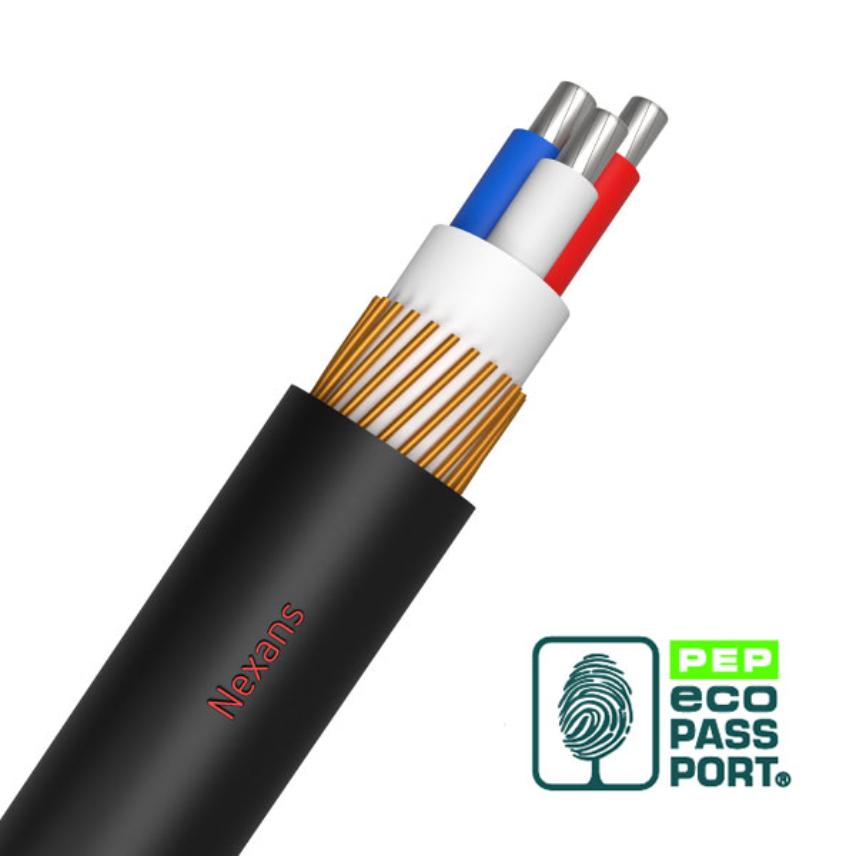

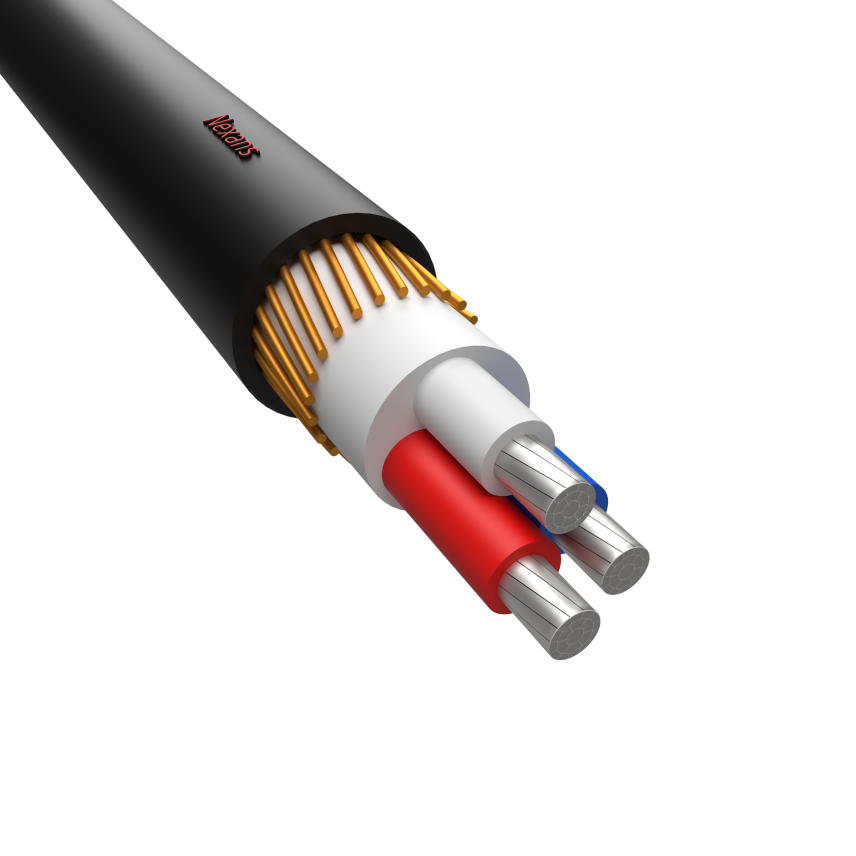

Al conductors, XLPE insulation, Laid up, Cu neutral screen, Black PVC sheath. 0.6/1 kV. Made to AS/NZS 4961.
Read moreAL NSCRN XL 3X120+10P BK 3.2
Nexans ref. QDZG23PX003CXRJ - Country ref. 3164
- Packaging: Cut to length (m)
- Pilot wires: 10 mm²
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 39.6 mm
- Approximate weight: 2.59 kg/m
AL NSCRN XL 3X185 +10P BK 3.2
Nexans ref. QDZG25PX003CXRJ - Country ref. 4774
- Packaging: Cut to length (m)
- Pilot wires: 10 mm²
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 48.5 mm
- Approximate weight: 3.79 kg/m
AL NSCRN XL 3X300 +10P BK 3.2
Nexans ref. QDZG27PX003CXRJ - Country ref. 1891
- Packaging: Cut to length (m)
- Pilot wires: 10 mm²
- Conductor cross-section: 300 mm²
- Nominal overall diameter: 57.7 mm
- Approximate weight: 5.76 kg/m
AL NSCRN XL 3X35 BK 3.2
Nexans ref. FEGH38PX003CXRJ - Country ref. 6229
- Packaging: Cut to length (m)
- Pilot wires: None
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 28.1 mm
- Approximate weight: 1 kg/m
AL NSCRN XL 3X50 BK 3.2
Nexans ref. FEGH39PX003CXRJ - Country ref. 1039
- Packaging: Cut to length (m)
- Pilot wires: None
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 31.0 mm
- Approximate weight: 1.24 kg/m
AL NSCRN XL 3X70 BK 3.2
Nexans ref. FEGG20PX003CXRJ - Country ref. 8351
- Packaging: Cut to length (m)
- Pilot wires: None
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 32.3 mm
- Approximate weight: 1.56 kg/m
AL NSCRN XL 3X95 BK 3.2
Nexans ref. FEGG21PX003CXRJ - Country ref. 8365
- Packaging: Cut to length (m)
- Pilot wires: None
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 35.9 mm
- Approximate weight: 2.01 kg/m
Description
Description
Standards
-
ProductAS/NZS 4961
Application
- Industrial, commerical and domestic applications.
- For use in various situations to supply the main power from the point of supply to buildings, equipment shed, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of conductor
Sector-shaped, stranded
Conductor material
Aluminum
Insulation
XLPE
Screen
Copper wire
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Nominal overall diameter
-
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
U.V resistance
Yes
Resources
Resources
Documentation
PEP_LV Al Nscrn 3C + Pilot
pdf — 4.6 MB
Current carrying capacities(in Amps) - AL neutral screen cables 3 core three phase
Aluminium conductor
35 and 50 mm² Circular compacted, 70 and 95 mm² Shaped stranded
Insulation XLPE
Max. Conductor Temperature 90⁰C
| Conductor cross-section |
|
|
|
|
|
|---|---|---|---|---|---|
| mm² | Al | Al | Al | Al | Al |
| 35.0 | 125 | 117 | 97 | 142 | 108 |
| 50.0 | 154 | 143 | 116 | 170 | 128 |
| 70.0 | 196 | 182 | 147 | 209 | 161 |
| 95.0 | 242 | 224 | 178 | 250 | 194 |
| 120.0 | 282 | 262 | 211 | 286 | 225 |
| 185.0 | 374 | 347 | 276 | 364 | 291 |
| 300.0 | 514 | 475 | 0 | 477 | 391 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
