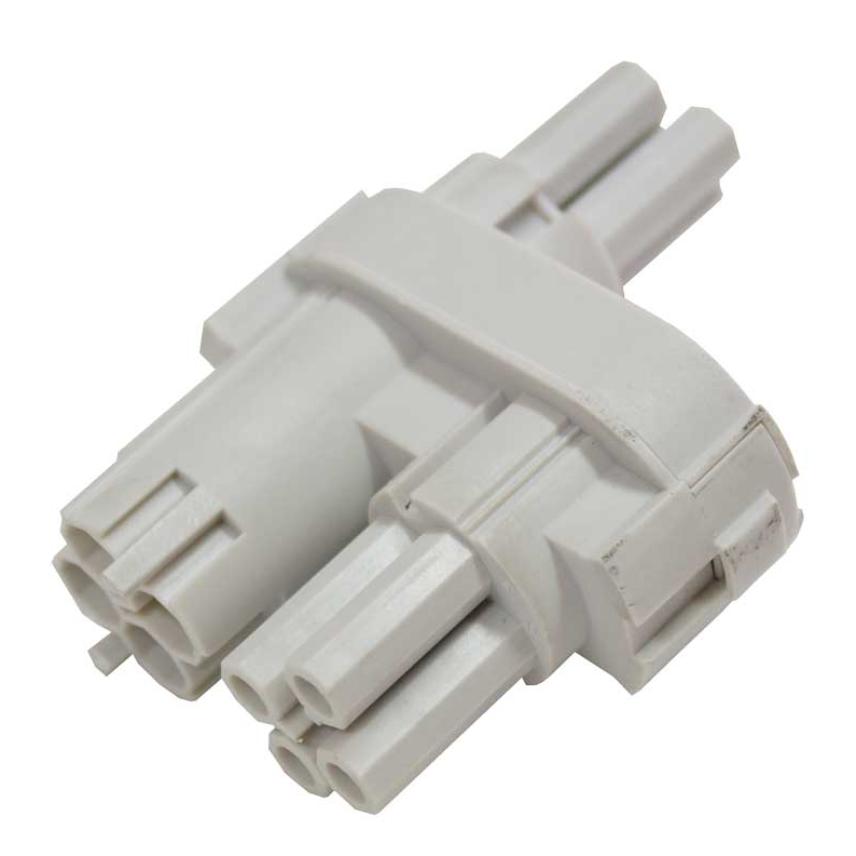

Power Splitters

Description

Description

Standards

  • Installation
    AS/NZS 3000; AS/NZS 61535:2011

As part of the ENVIROLEX Flexible Multicore 90°C product range, the Secondary Wiring connections are a measured, pre-wired and designed solution for power and lighting sub-circuits. It offers plug & play wiring through to final connections and pre-terminated accessories. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.2

Constructions and features

Constructions

  • Single core cables, Class 2 Copper
  • X-HF-90 insulation
  • HFS-90-TP outer sheath

Features

  • Rating: 20amp. No# Conductors: 3wire. Conductor Size: 4.0mm. TEE: 3way

Benefits and applications

Benefits

  • Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site

Applications

  • Board Connections
  • Commercial & Tertiary Buildings/High-Safety Standard Buildings

Characteristics

Characteristics

Construction characteristics

Construction characteristics

With Green/Yellow core
-
With smaller neutral conductor
-

Dimensional characteristics

Dimensional characteristics

Approximate weight
- kg/m
Conductor cross-section
- mm²
Number of cores
-

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
-

Usage characteristics

Usage characteristics

Max. conductor temperature in service
- °C
