Lighting Splitters

Products

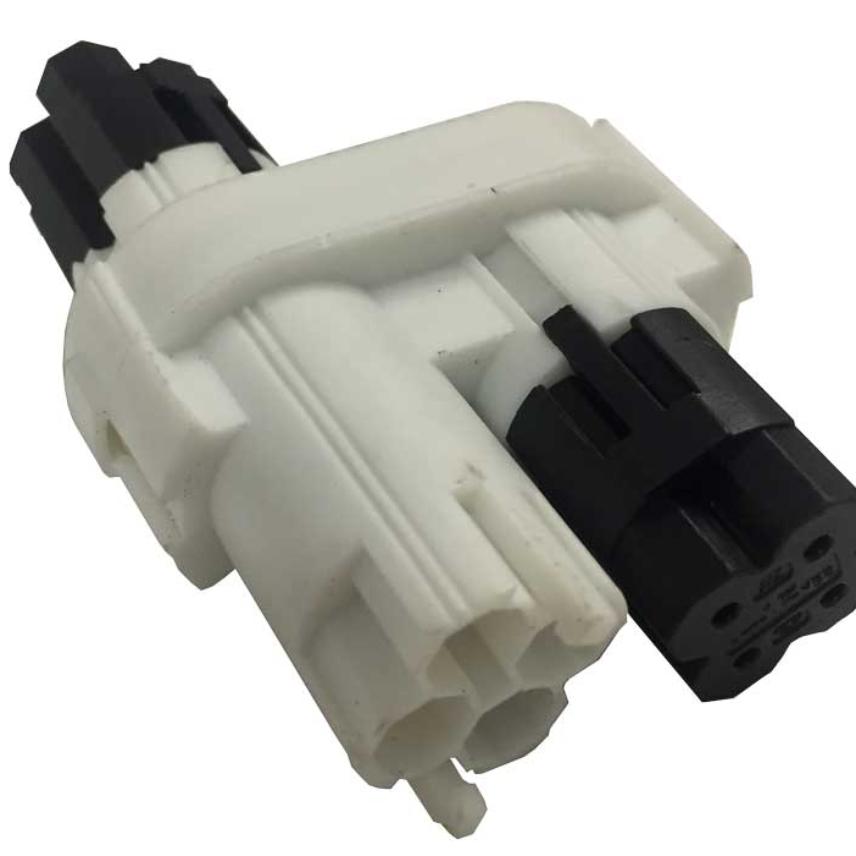

3 Pole 1.5mm² Splitter T

Nexans ref. A1.4.293628-4

  • Packaging: Unit
  • Approximate weight: 0.05 kg/m
  • Conductor cross-section: 1.5 mm²

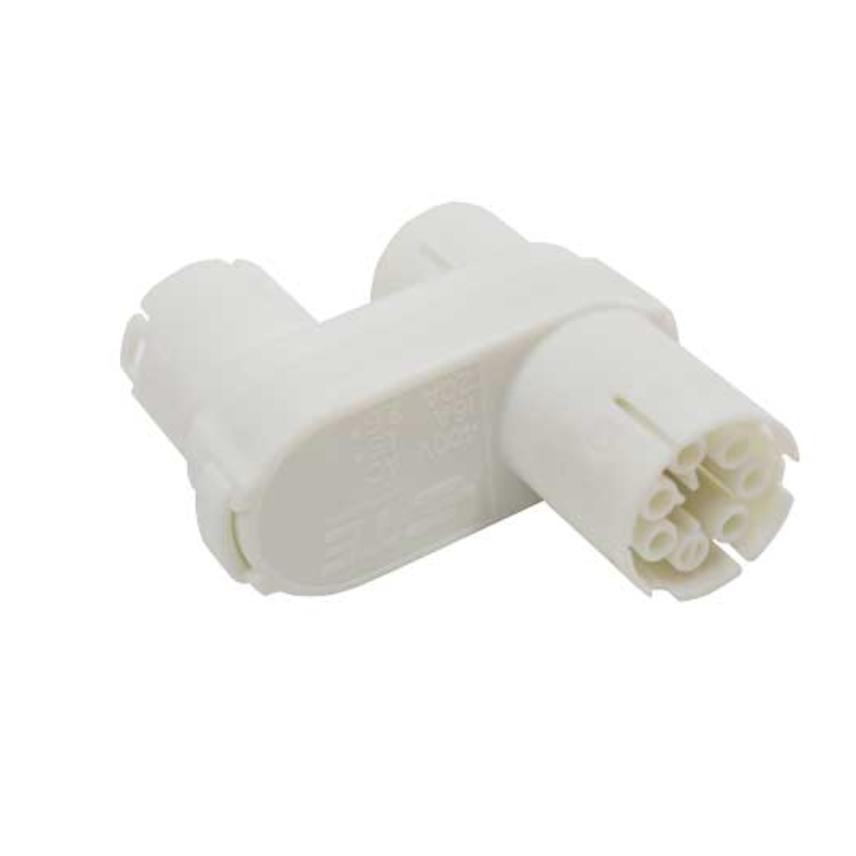

3 Pole 2.5mm² Splitter T

Nexans ref. A1.4.293628-5

  • Packaging: Unit
  • Approximate weight: 0.05 kg/m
  • Conductor cross-section: 2.5 mm²

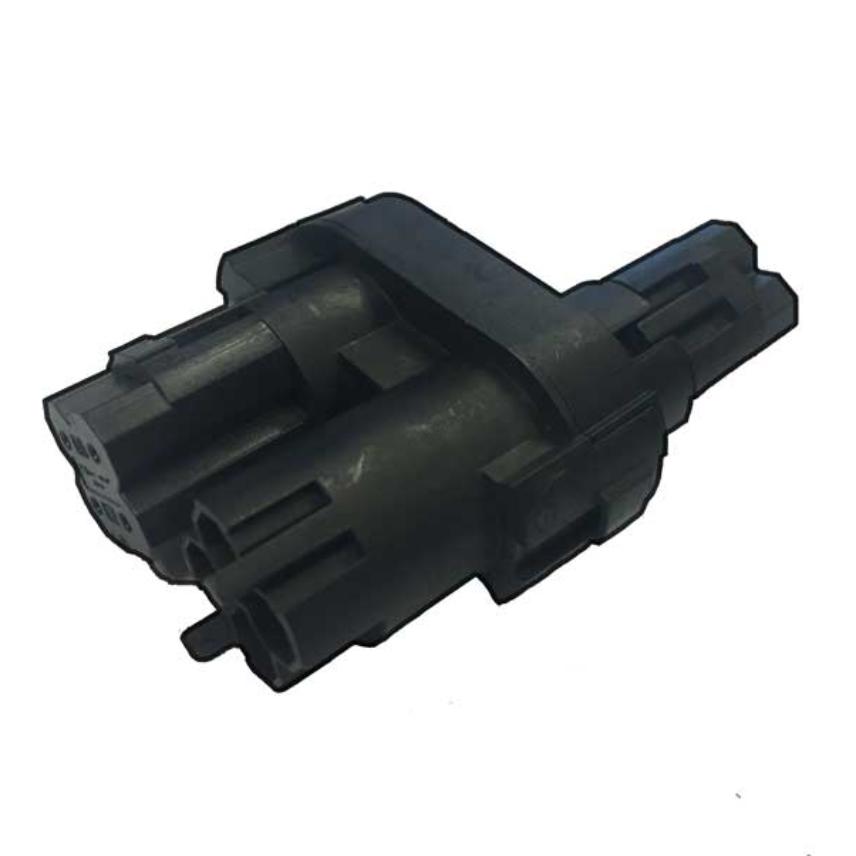

5 Pole 2.5mm² Splitter T

Nexans ref. A1.4.1879997-2

  • Packaging: Unit
  • Approximate weight: 0.06 kg/m
  • Conductor cross-section: 2.5 mm²



Description

Description

Standards

  • National
    AS/NZS 3000; AS/NZS 61535:2011

As part of the ENVIROLEX Flexible Multicore 90°C product range, the Secondary Wiring connections are a measured, pre-wired and designed solution for power and lighting sub-circuits. It offers plug & play wiring through to final connections and pre-terminated accessories. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.2

Constructions

  • Single core cables, Class 2 Copper
  • X-HF-90 insulation
  • HFS-90-TP outer sheath

Features

  • No# Conductors: 5wire. Conductor Size: 1.5mm2 (10A), 2.5mm (20A). TEE: 3way

Benefits

  • Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site

Applications

  • Secondary Wiring
  • Commercial & Tertiary Buildings/High-Safety Standard Buildings
  • Modular Buildings



Characteristics

Characteristics

Construction characteristics

Construction characteristics

With Green/Yellow core
No
With smaller neutral conductor
No

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
240 V

Usage characteristics

Usage characteristics

Max. conductor temperature in service
85 °C
