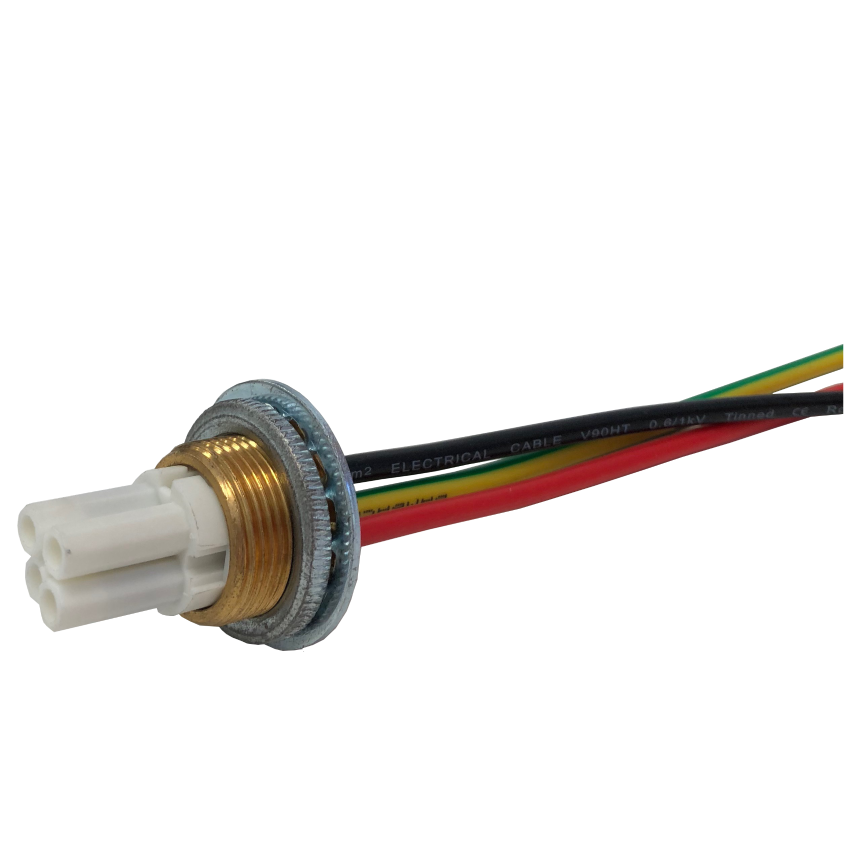

Single Circuit Lighting Panel Mount for Distribution Board
Single Circuit Lighting Panel Mount for Distribution Board
Female Lighting Panel Mount for Distribution Boards
Low Fire Hazard (XLPE) Cable
Single Circuit Panel Mount - 2C+E 1.5mm² 1m
Nexans ref. A1.4.000.3A6.2.010
- Packaging: Unit
- Approximate weight: 0.08 kg/m
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 4.61
Single Circuit Panel Mount - 2C+E 2.5mm² 1m
Nexans ref. A1.4.000.3B6.3.010
- Packaging: Unit
- Approximate weight: 0.113 kg/m
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 4.61

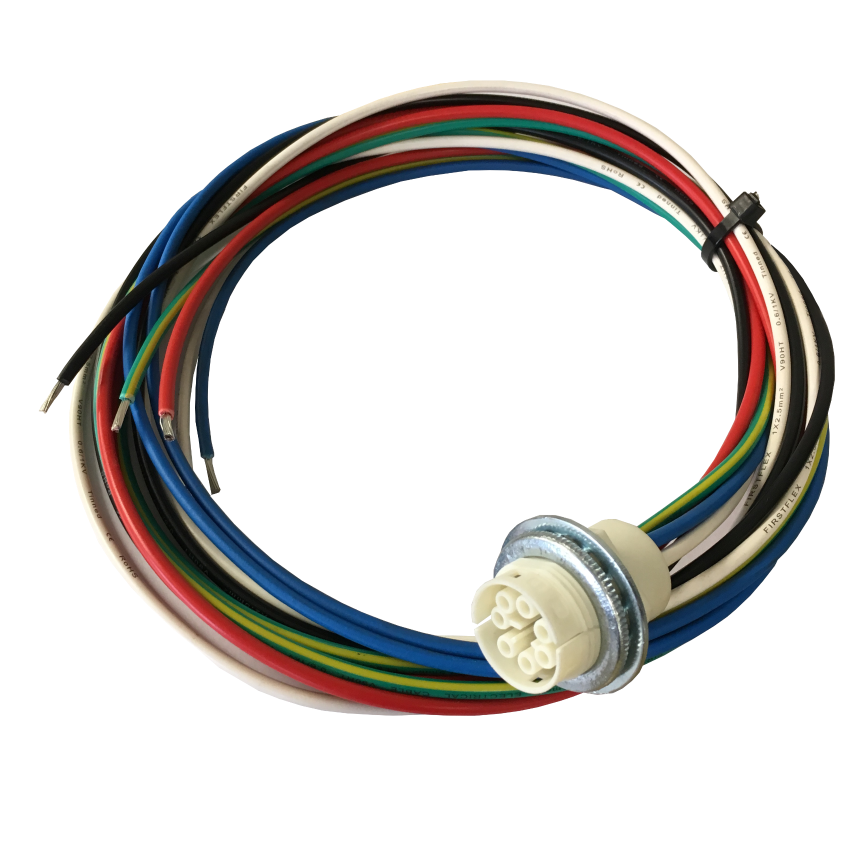

Single Circuit Panel Mount - 4C+E 2.5mm² 1m
Nexans ref. A1.4.000.5BT.3.010
- Packaging: Unit
- Approximate weight: 0.2 kg/m
- Conductor cross-section: 2.5 mm²
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
Description
Description
Standards
-
NationalAS/NZS 3000; AS/NZS 61535:2011
As part of the ENVIROLEX Flexible Multicore 90°C product range, the PanelMount connections offer a pre-wired, pre-terminated and pre-tested Distribution Board system, ready to plug on site. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Single core flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.1
Constructions
- Single core cables, Class 2 Copper
- X-HF-90 insulation
- HFS-90-TP outer sheath
Features
- No# Conductors: 5wire. Conductor Size: 1.5mm2 (10A), 2.5mm (20A)
Benefits
- Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site
Applications
- Board Connections
- Commercial & Tertiary Buildings/High-Safety Standard Buildings
- Modular Buildings
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-HF-90
Outer sheath
HFS-90-TP
Type of conductor
Circular, stranded, class 2
With Green/Yellow core
Yes
With smaller neutral conductor
No
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
