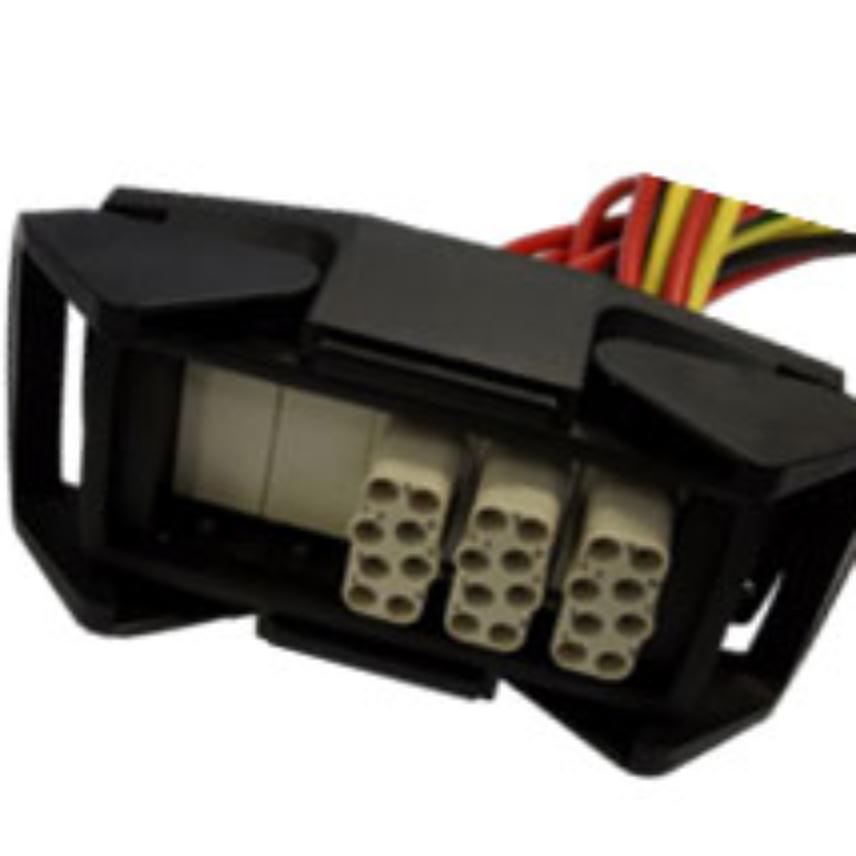

Multi Circuit Lighting Panel Mount for Distribution Board

Description

Description

Standards

  • Installation
    AS/NZS 3000; AS/NZS 61535:2011

As part of the ENVIROLEX Flexible Multicore 90°C product range, the PanelMount connections offer a pre-wired, pre-terminated and pre-tested Distribution Board system, ready to plug on site. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Single core flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.1

Construction and features

  • Single core cables, Class 2 Copper
  • X-HF-90 insulation
  • HFS-90-TP outer sheath

Features

  • Rating: Up to 20amp. No# Conductors: 31wire. Conductor Size: 2.5mm

Benefits and applications

Benefits

  • Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site

Applications

  • Board Connections
  • Commercial & Tertiary Buildings/High-Safety Standard Buildings
  • Modular Buildings

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
-
Conductor material
-
Conductor shape
-
Insulation
-
Outer sheath
-
Type of conductor
-
With Green/Yellow core
-

Dimensional characteristics

Dimensional characteristics

Approximate weight
- kg/m
Conductor cross-section
- mm²
Nominal overall diameter
- mm
Number of cores
-

Electrical characteristics

Electrical characteristics

Max. DC resistance of the conductor at 20°C (Ohm/km)
-
Rated Voltage Uo/U (Um)
-

Usage characteristics

Usage characteristics

Max. conductor temperature in service
- °C
