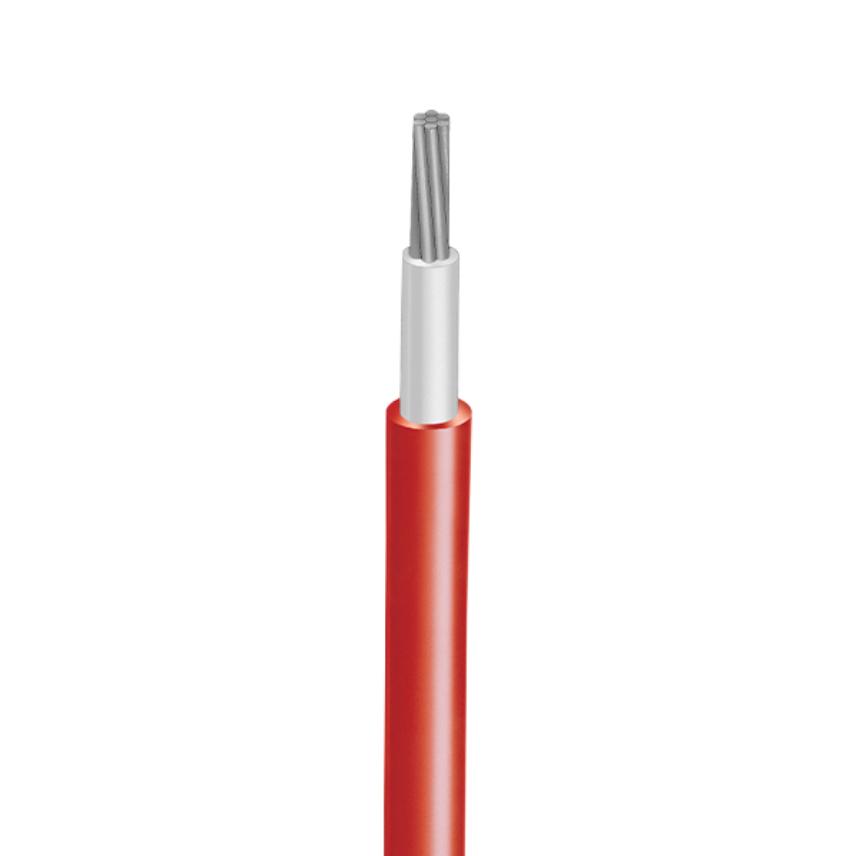

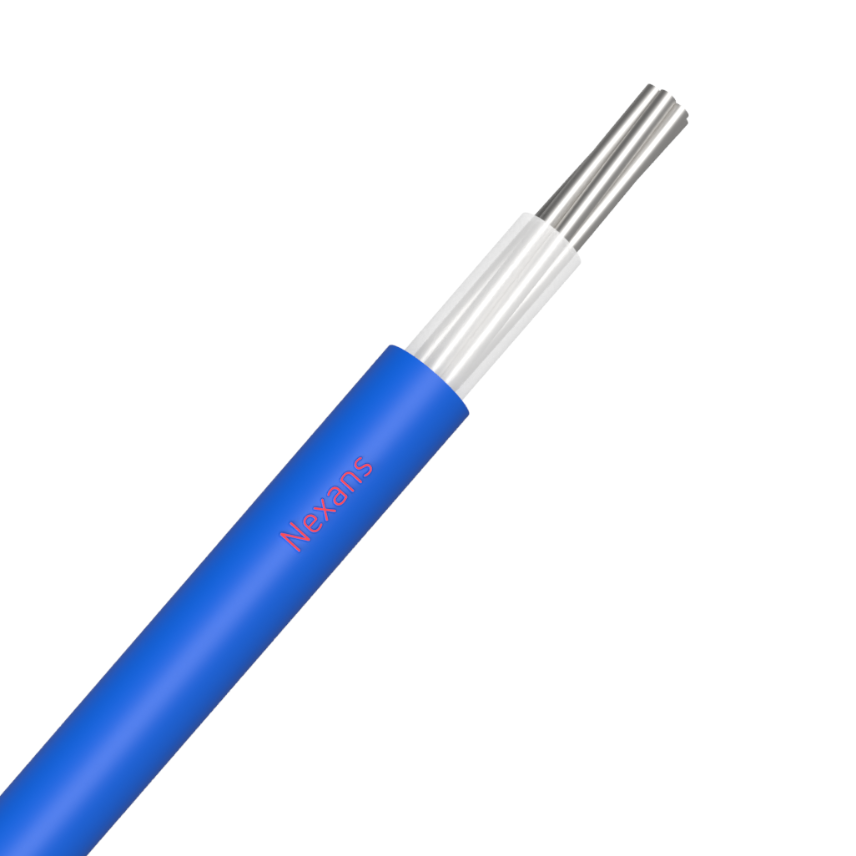

AL Vintols
AL Vintols
Al conductor, PVC insulated, PVC sheath. 0.6/1 kV. Made to AS/NZS 5000.1
Read moreSDI PVC 1X 95 AL PVC NL BU
Nexans ref. BABA21AA001BFNA - Country ref. 8568
- Packaging: Cut to length (m)
- Sheath colour: Blue
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 19.0 mm
- Approximate weight: 0.52 kg/m
SDI PVC 1X 95 AL PVC NL RD
Nexans ref. BABA21AA001JBNA - Country ref. 5433
- Packaging: Cut to length (m)
- Sheath colour: Red
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 19.0 mm
- Approximate weight: 0.52 kg/m
SDI PVC 1X 95 AL PVC NL WH
Nexans ref. BABA21AA001WVNA - Country ref. 8295
- Packaging: Cut to length (m)
- Sheath colour: White
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 19.0 mm
- Approximate weight: 0.52 kg/m
SDI PVC 1X120 AL PVC NL BU
Nexans ref. BABA23AA001BFNA - Country ref. 7218
- Packaging: Cut to length (m)
- Sheath colour: Blue
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 20.7 mm
- Approximate weight: 0.62 kg/m
SDI PVC 1X120 AL PVC NL BK
Nexans ref. BABA23AA001CXNA - Country ref. 4679
- Packaging: Cut to length (m)
- Sheath colour: Black
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 20.7 mm
- Approximate weight: 0.62 kg/m
SDI PVC 1X120 AL PVC NL RD
Nexans ref. BABA23AA001JBNA - Country ref. 5360
- Packaging: Cut to length (m)
- Sheath colour: Red
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 20.7 mm
- Approximate weight: 0.62 kg/m
SDI PVC 1X120 AL PVC NL WH
Nexans ref. BABA23AA001WVNA - Country ref. 3709
- Packaging: Cut to length (m)
- Sheath colour: White
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 20.7 mm
- Approximate weight: 0.62 kg/m
SDI PVC 1X185 AL PVC NL BU
Nexans ref. BABA25AA001BFNA - Country ref. 9940
- Packaging: Cut to length (m)
- Sheath colour: Blue
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 25.1 mm
- Approximate weight: 0.92 kg/m
SDI PVC 1X185 AL PVC NL BK
Nexans ref. BABA25AA001CXNA - Country ref. 6464
- Packaging: Cut to length (m)
- Sheath colour: Black
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 25.1 mm
- Approximate weight: 0.92 kg/m
SDI PVC 1X185 AL PVC NL RD
Nexans ref. BABA25AA001JBNA - Country ref. 7192
- Packaging: Cut to length (m)
- Sheath colour: Red
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 25.1 mm
- Approximate weight: 0.92 kg/m
SDI PVC 1X185 AL PVC NL WH
Nexans ref. BABA25AA001WVNA - Country ref. 4079
- Packaging: Cut to length (m)
- Sheath colour: White
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 25.1 mm
- Approximate weight: 0.92 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.1
Application
- Industrial and commercial applications (predominantly)
- Some domestic applications
- For use in various situations to supply the main power from the point of supply (either single or three phase application) to buildings, equipment shed, eg, switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc. Commonly used in Power Authority work.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of conductor
Circular, stranded
Conductor material
Aluminum
Insulation
PVC
Outer sheath
PVC
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
75 °C
Resources
Resources
Documentation
Supplier Declaration of Conformity (SDoC) - Vintols
pdf — 185.7 kB
Current carrying capacities single phase (in Amps) - Single conductor PVC
Copper conductor - Circular stranded - Insulation PVC
Aluminum conductor - Circular stranded except 240 mm² Compact circular stranded - Insulation PVC
Max. Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 4.0 | 44 | 0 | 35 | 0 | 36 | 0 | 56 | 0 | 52 | 0 | 45 | 0 | 18 | |
| 16.0 | 56 | 0 | 46 | 0 | 47 | 0 | 71 | 0 | 109 | 0 | 98 | 0 | 41 | |
| 25.0 | 76 | 0 | 62 | 0 | 62 | 0 | 94 | 0 | 142 | 0 | 128 | 0 | 55 | |
| 35.0 | 101 | 0 | 82 | 0 | 80 | 0 | 134 | 0 | 171 | 0 | 153 | 0 | 67 | |
| 70.0 | 136 | 197 | 111 | 163 | 107 | 150 | 174 | 237 | 251 | 195 | 227 | 176 | 0 | |
| 95.0 | 0 | 244 | 0 | 203 | 0 | 187 | 0 | 283 | 0 | 237 | 0 | 215 | 0 | |
| 120.0 | 0 | 284 | 0 | 237 | 0 | 214 | 0 | 323 | 0 | 270 | 0 | 245 | 0 | |
| 185.0 | 0 | 377 | 0 | 318 | 0 | 284 | 0 | 411 | 0 | 349 | 0 | 281 | 0 | |
| 240.0 | 0 | 449 | 0 | 381 | 0 | 340 | 0 | 477 | 0 | 405 | 0 | 320 | 0 | |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Buried in multi-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
Current carrying capacities three phase (in Amps) - Single conductor PVC
Single Conductor PVC (three phase)
PVC insulation
Unarmoured
Sheathed or unsheathed
For cables up to and including 0.6/1 kV @ 50 Hz AC.
| Conductor cross-section |
|
|
|
|
|
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
| 4.0 | 38 | 0 | 35 | 0 | 32 | 0 | 40 | 0 | 47 | 0 | 40 | 0 | 18 | |
| 16.0 | 88 | 0 | 82 | 0 | 71 | 0 | 114 | 0 | 99 | 0 | 86 | 0 | 41 | |
| 25.0 | 117 | 0 | 111 | 0 | 92 | 0 | 147 | 0 | 129 | 0 | 110 | 0 | 55 | |
| 35.0 | 145 | 0 | 136 | 0 | 114 | 0 | 176 | 0 | 154 | 0 | 134 | 0 | 67 | |
| 70.0 | 225 | 174 | 210 | 163 | 173 | 135 | 256 | 199 | 226 | 175 | 198 | 154 | 0 | |
| 95.0 | 0 | 218 | 0 | 203 | 0 | 162 | 0 | 238 | 0 | 213 | 0 | 185 | 0 | |
| 120.0 | 0 | 254 | 0 | 237 | 0 | 193 | 0 | 272 | 0 | 242 | 0 | 216 | 0 | |
| 185.0 | 0 | 341 | 0 | 317 | 0 | 253 | 0 | 344 | 0 | 312 | 0 | 278 | 0 | |
| 240.0 | 0 | 408 | 0 | 381 | 0 | 307 | 0 | 400 | 0 | 362 | 0 | 325 | 0 | |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Buried in multi-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
