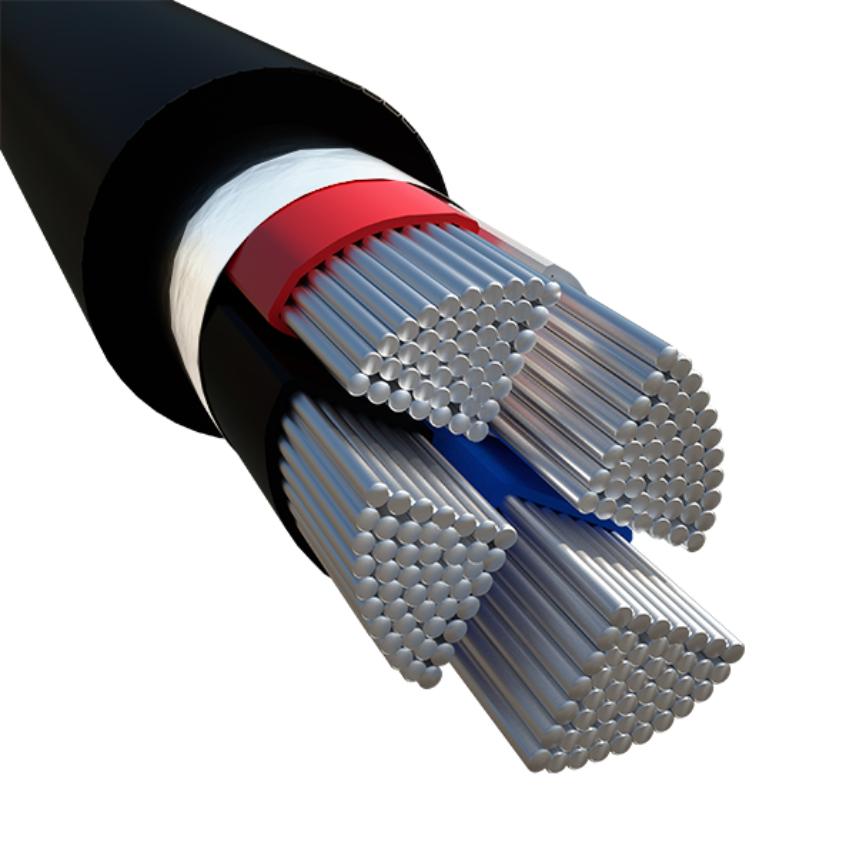

AL URD CABLE 4x240
AL URD CABLE 4x240
Al Conductors, XLPE insulation, Black PVC Sheath, 0.6/1 kV. Made to AS/NZS 4026
Read more- Nexans ref. : XDDG26AA004CXAA
- Country ref. : 5423
- EAN : 99416079025600
Description
Description
Standards
-
ProductAS/NZS 4026
Application
- Recommended for use in Underground Residential Distribution Systems.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Insulation
XLPE
Outer sheath
PVC
Type of conductor
Sector-shaped, stranded
Conductor flexibility
Stranded
Conductor shape
Sector-shaped
Sheath colour
Black
With Green/Yellow core
No
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Number of cores
4
Conductor cross-section
240 mm²
Nominal overall diameter
54.6 mm
Approximate weight
3.91 kg/m
Neutral conductor section (when smaller)
- mm²
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C (Ohm/km)
0.125
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
U.V resistance
Yes
