XLPE Armoured Mains Cables
XLPE Armoured Mains Cables

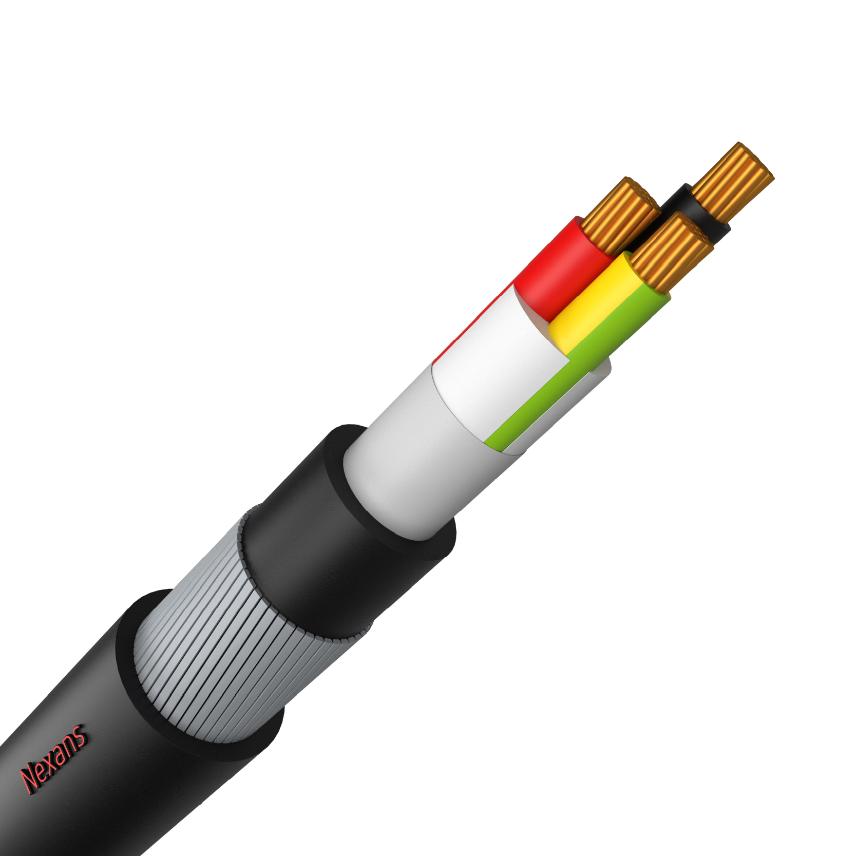

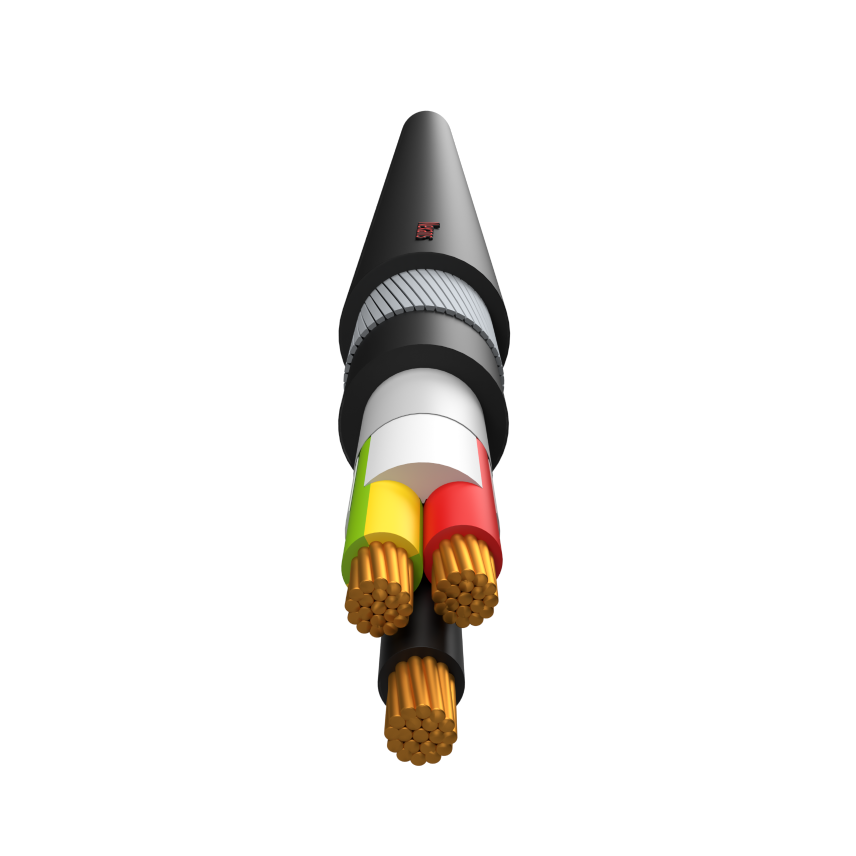

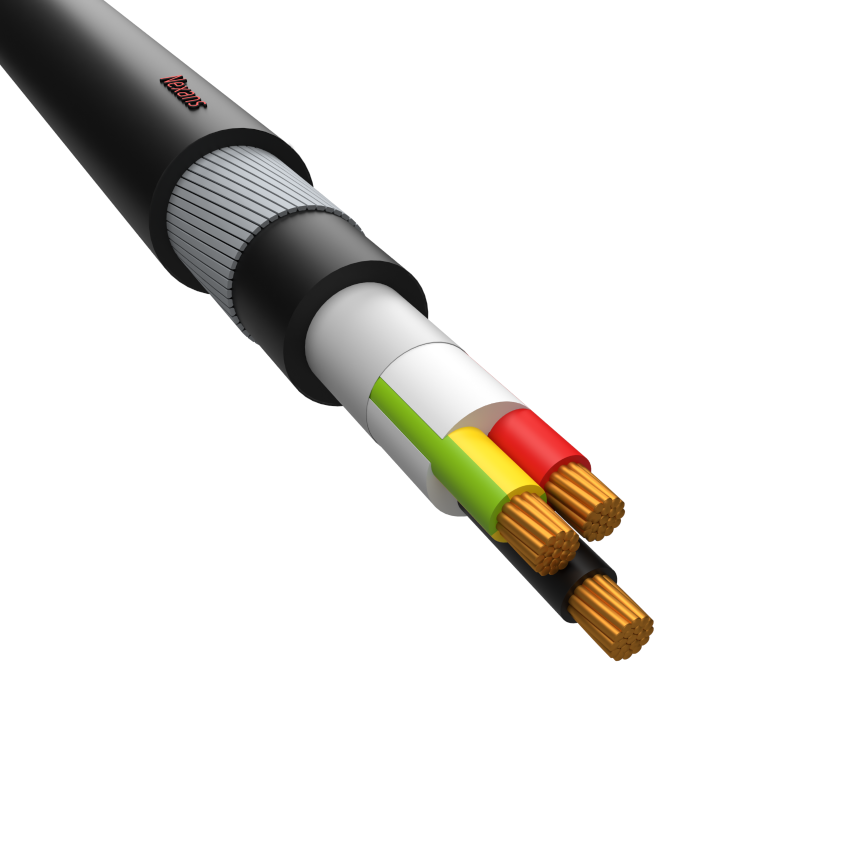

Cu conductors, XLPE insulation, Laid up, Extruded bedding, GSW armour, Black PVC sheath. 0.6/1 kV. Made to AS/NZS 5000.1.
Read moreXLPE Armoured Main 4x16
Nexans ref. HEMP15AA004CXEM - Country ref. 3578
- Packaging: Cut to length (m)
- Type of conductor: Circular, stranded
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 25.1 mm
- Approximate weight: 1.39 kg/m
XLPE Armoured Main 4x25
Nexans ref. HEMC16AA004CXEM - Country ref. 5789
- Packaging: Cut to length (m)
- Type of conductor: Sector-shaped, stranded
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 28.3 mm
- Approximate weight: 2.03 kg/m
XLPE Armoured Main 4x35
Nexans ref. HEMV35AA004CXEM - Country ref. 8874
- Packaging: Cut to length (m)
- Type of conductor: Sector-shaped, stranded
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 29.9 mm
- Approximate weight: 2.47 kg/m
XLPE Armoured Main 4x50
Nexans ref. HEMV36AA004CXEM - Country ref. 1346
- Packaging: Cut to length (m)
- Type of conductor: Sector-shaped, stranded
- Conductor cross-section: 50 mm²
- Nominal overall diameter: 33.0 mm
- Approximate weight: 3.11 kg/m
XLPE Armoured Main 4x70
Nexans ref. HEMV20AA004CXEM - Country ref. 7912
- Packaging: Cut to length (m)
- Type of conductor: Sector-shaped, stranded
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 38.3 mm
- Approximate weight: 4.41 kg/m
XLPE Armoured Main 4x150
Nexans ref. HEMV24AA004CXEM - Country ref. 1225
- Packaging: Cut to length (m)
- Type of conductor: Sector-shaped, stranded
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 54.1 mm
- Approximate weight: 8.85 kg/m
XLPE Armoured Main 4x185
Nexans ref. HEMV25AA004CXEM - Country ref. 6541
- Packaging: Cut to length (m)
- Type of conductor: Sector-shaped, stranded
- Conductor cross-section: 185 mm²
- Nominal overall diameter: 57.6 mm
- Approximate weight: 10.55 kg/m
Description
Description
Standards
-
NationalAS/NZS 5000.1
Application
- Industrial, commercial and domestic applications
- For use in various situations to supply the main power from the point of supply to buildings, equipments, sheds e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
XLPE
Material of bedding
PVC
Armour type
Galvanized steel wires
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
4
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
U.V resistance
Yes
Resources
Resources
Documentation
Current carrying capacities three phase (in Amps) - Three & Four Conductor XLPE armoured mains
XLPE insulation
Armoured or unarmoured
For cables up to and including 0.6/1 kV @ 50 Hz AC.
Conductor cross-section | ||||||
---|---|---|---|---|---|---|
mm² | Cu | Cu | Cu | Cu | Cu | Cu |
16.0 | 97 | 91 | 75 | 118 | 87 | 45 |
25.0 | 131 | 122 | 100 | 153 | 114 | 62 |
35.0 | 162 | 151 | 125 | 184 | 139 | 76 |
50.0 | 198 | 185 | 150 | 218 | 166 | 0 |
70.0 | 252 | 234 | 190 | 269 | 207 | 0 |
150.0 | 415 | 385 | 305 | 412 | 325 | 0 |
185.0 | 480 | 444 | 354 | 465 | 372 | 0 |
Air Spaced from Surface, Unenclosed |
Air touching, unenclosed |
Air enclosed |
Buried direct |
Buried in single-way duct |
Cable surrounded by thermal insulation, unenclosed |
