PVC Armoured Mains Cables
PVC Armoured Mains Cables

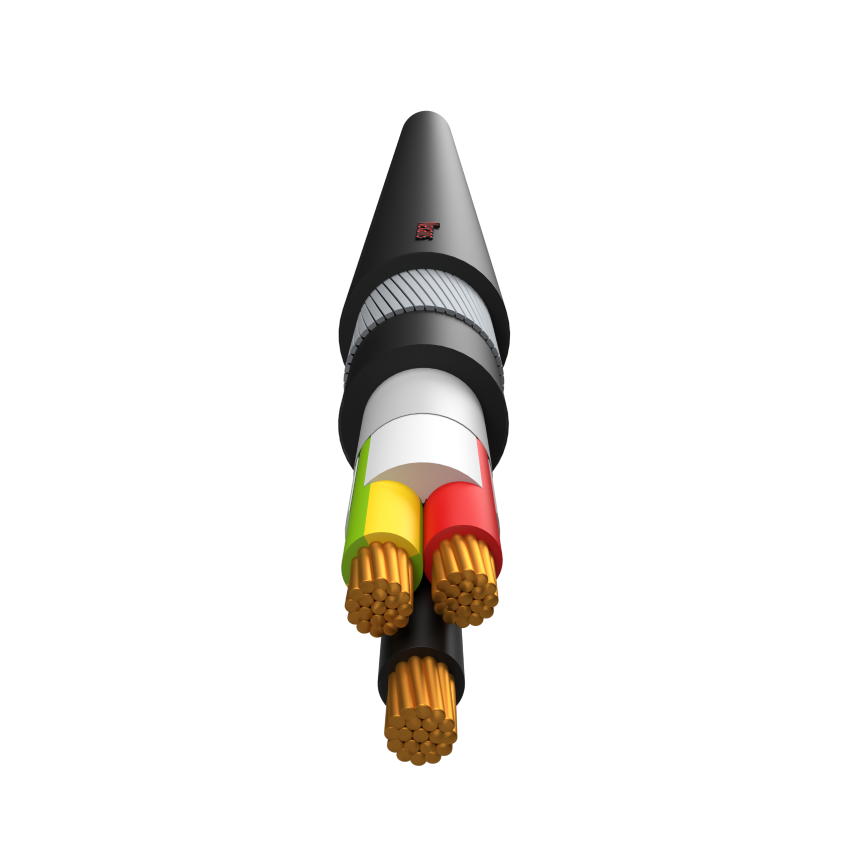

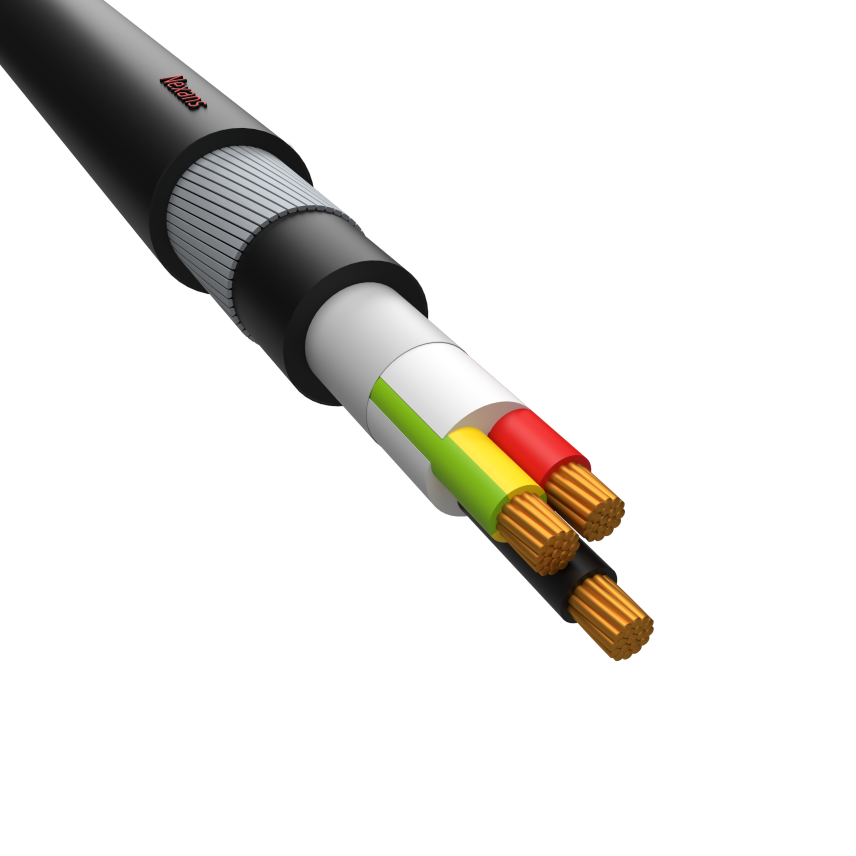

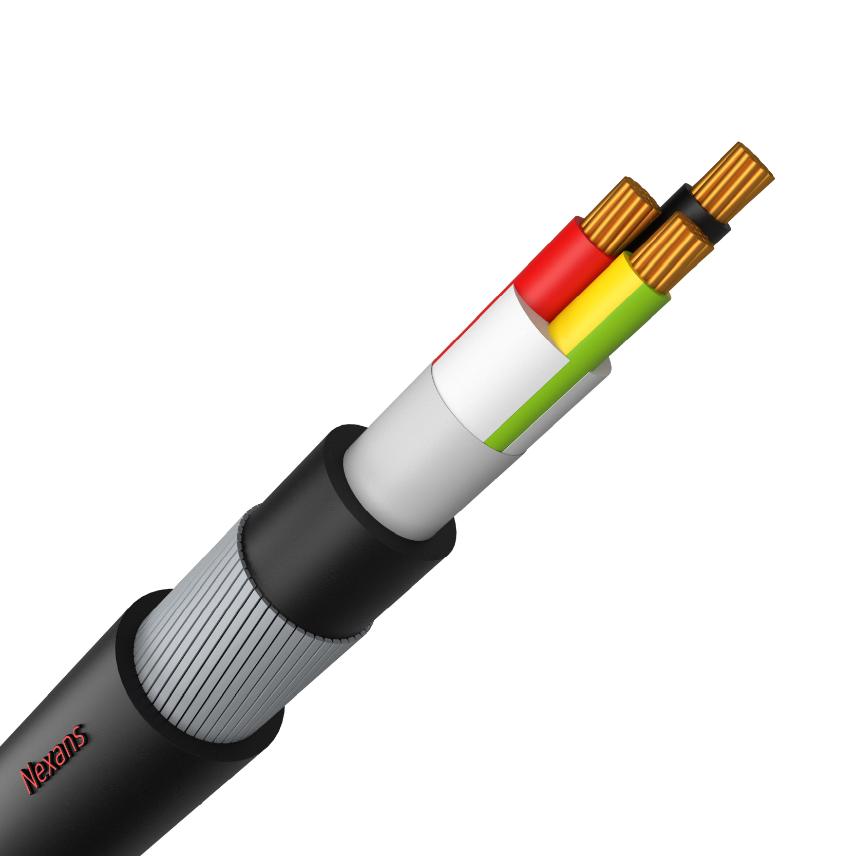

Cu conductors, PVC insulation, Laid up, Extruded bedding, GSW armour, Black PVC sheath. 0.6/1 kV. Made to AS/NZS 5000.1.
Read moreCU ARMAINS 2X 2.5+E
Nexans ref. DNMP07AA002CXHF - Country ref. 1993
- Packaging: Cut to length (m)
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 15.8 mm
- Approximate weight: 0.55 kg/m
CU ARMAINS 3X 4
Nexans ref. FAMP09AA003CXRJ - Country ref. 9512
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Nominal overall diameter: 18.5 mm
- Approximate weight: 0.71 kg/m
CU ARMAINS 4X 6
Nexans ref. HAMP11AA004CXEM - Country ref. 5161
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Nominal overall diameter: 21.1 mm
- Approximate weight: 0.96 kg/m
Description
Description
Standards
-
ProductAS/NZS 5000.1
Application
- Industrial, commerical and domestic applications.
- For use in various situations to supply the main power from the point of supply to buildings, equipment sheds, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Type of conductor
Circular, stranded
Conductor material
Copper
Insulation
PVC
Material of bedding
PVC
Armour type
Galvanized steel wires
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Earth conductor cross section
2.5 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
75 °C
U.V resistance
Yes
Resources
Resources
Documentation
Current carrying capacities single phase (in Amps) - Two core plus earth pvc armoured
Copper conductor
Circular stranded
Insulation PVC
Max. Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 2.5 | 31 | 30 | 26 | 33 | 33 | 15 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
Current carrying capacities three phase (in Amps) - Three & Four Core PVC armoured
Copper conductor
Circular stranded except 25 mm² Shaped stranded
Insulation PVC
Max. Conductor Temperature 75⁰C
| Conductor cross-section |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu | Cu |
| 2.5 | 26 | 25 | 23 | 28 | 28 | 13 |
| 4.0 | 35 | 33 | 29 | 36 | 36 | 17 |
| 6.0 | 46 | 42 | 38 | 46 | 46 | 22 |
| 10.0 | 62 | 58 | 50 | 61 | 61 | 29 |
| 16.0 | 82 | 78 | 66 | 106 | 80 | 39 |
| 25.0 | 111 | 104 | 87 | 138 | 103 | 52 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
|
Cable surrounded by thermal insulation, unenclosed |
