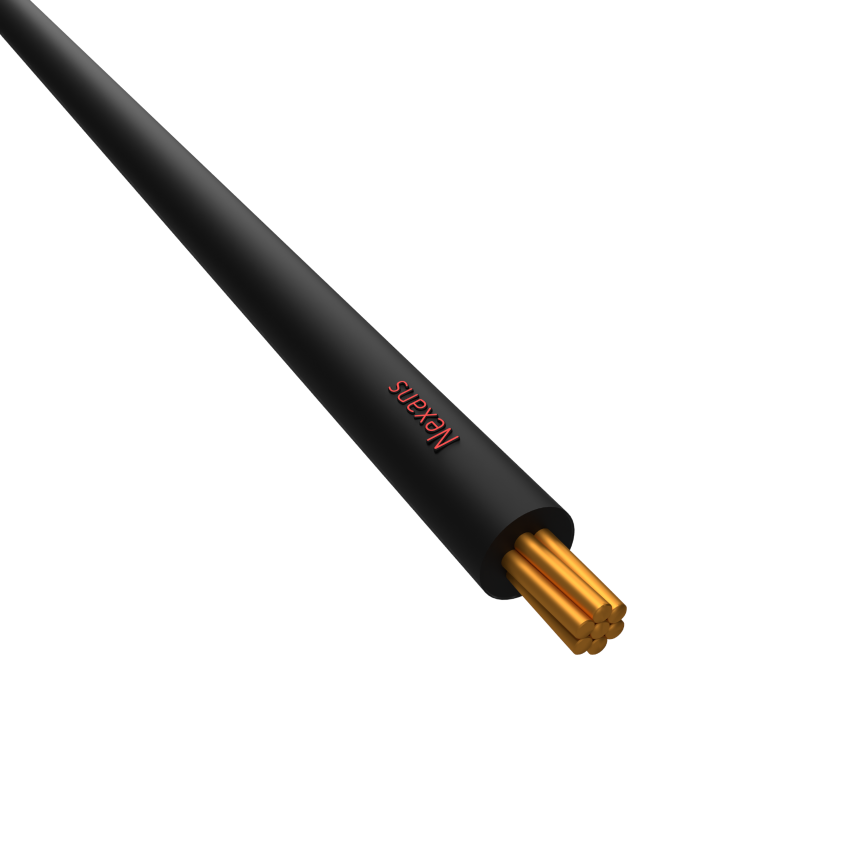

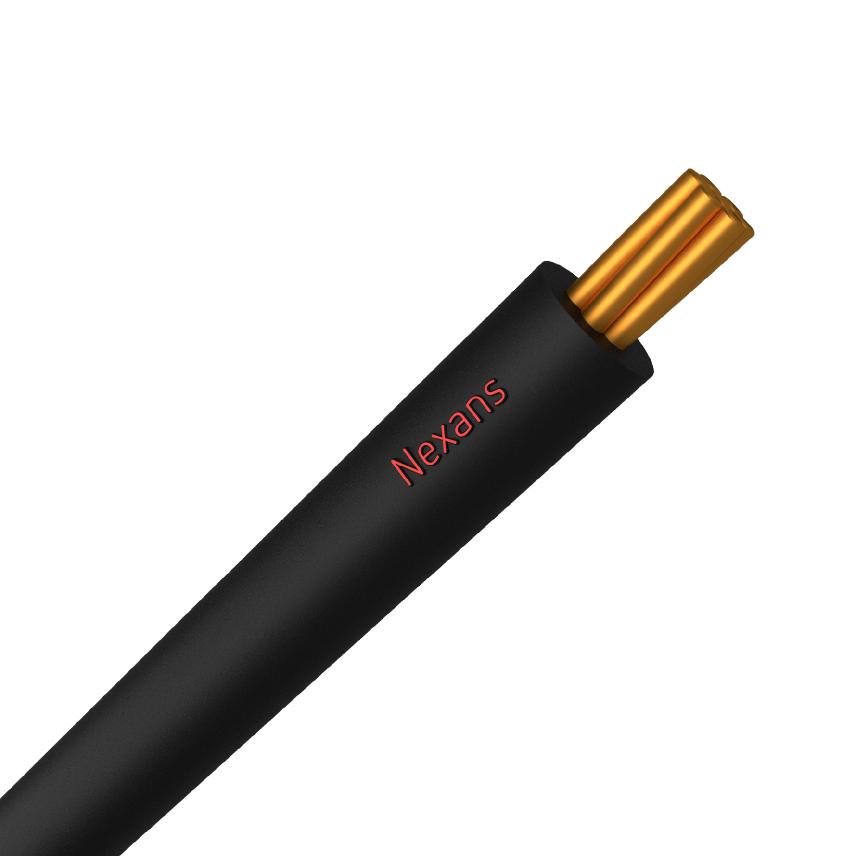

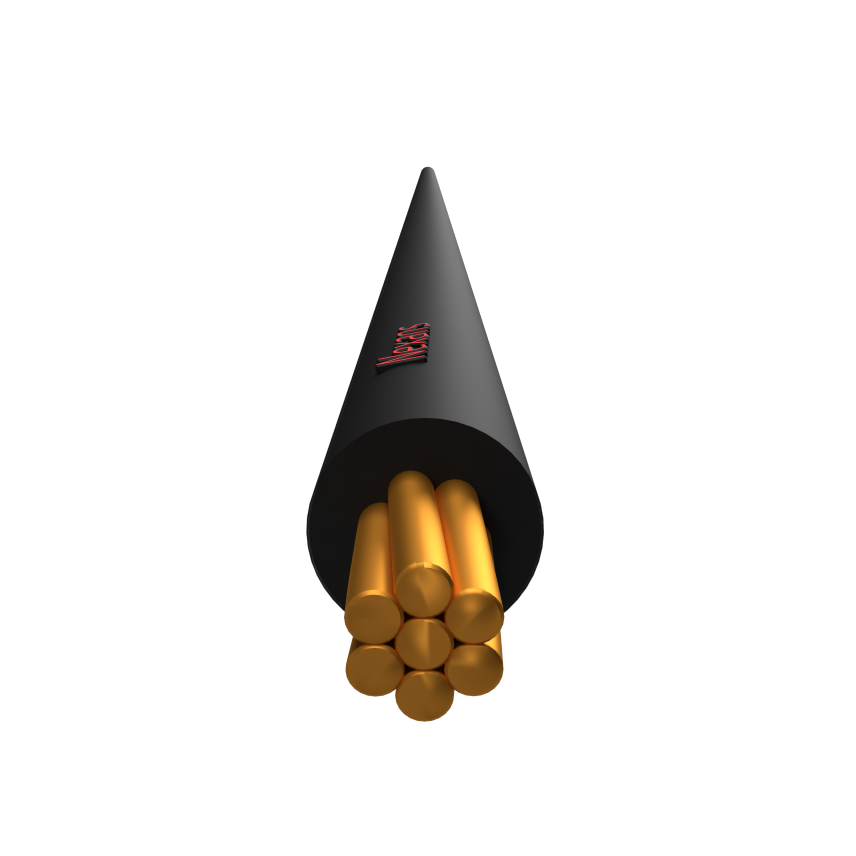

Irrigation Cable - Single Core

Products

CU IRRIGATION 1.5 BK To be removed

Nexans ref. QADP05AA001AACX - Country ref. 4458

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 3.2 mm
  • Approximate weight: 0.02 kg/m
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



CU IRRIGATION 1.5 BU To be removed

Nexans ref. QADP05AA001AABF - Country ref. 9353

  • Packaging: Cut to length (m)
  • Sheath colour: Blue
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 3.2 mm
  • Approximate weight: 0.02 kg/m
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



CU IRRIGATION 1.5 RD To be removed

Nexans ref. QADP05AA001AAJB - Country ref. 1256

  • Packaging: Cut to length (m)
  • Sheath colour: Red
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 3.2 mm
  • Approximate weight: 0.02 kg/m
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



CU IRRIGATION 1.5 YE To be removed

Nexans ref. QADP05AA001AAYF - Country ref. 7662

  • Packaging: Cut to length (m)
  • Sheath colour: Yellow
  • Conductor cross-section: 1.5 mm²
  • Nominal overall diameter: 3.2 mm
  • Approximate weight: 0.02 kg/m
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6



CU IRRIGATION 2.5 YE To be removed

Nexans ref. QADP07AA001AAYF - Country ref. 7362

  • Packaging: Cut to length (m)
  • Sheath colour: Yellow
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 4.2 mm
  • Approximate weight: 0.03 kg/m
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



CU IRRIGATION 2.5 WH To be removed

Nexans ref. QADP07AA001AAWT - Country ref. 3322

  • Packaging: Cut to length (m)
  • Sheath colour: White
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 4.2 mm
  • Approximate weight: 0.03 kg/m
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



CU IRRIGATION 2.5 BK To be removed

Nexans ref. QADP07AA001AACX - Country ref. 9281

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 4.2 mm
  • Approximate weight: 0.03 kg/m
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



CU IRRIGATION 2.5 RD To be removed

Nexans ref. QADP07AA001AAJB - Country ref. 4779

  • Packaging: Cut to length (m)
  • Sheath colour: Red
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 4.2 mm
  • Approximate weight: 0.03 kg/m
  • Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41



Description

Description

Standards

  • International
    Manufacturer specification

Application

  • Commonly used in irrigation systems.
  • The polypropylene insulation provides superior moisture resistance, abrasion resistance and extra mechanical strength.

Note

The values on the ablove table are based on typical New Zealand conditions of:-
Ambient Air Temperature   25°C
Maximum Temperature   60°C

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Annealed copper
Insulation
PP (polypropylene)

Electrical characteristics

Electrical characteristics

Maximum operating voltage
50 VAC / 120 VDC

Usage characteristics

Usage characteristics

Max. conductor temperature in service
80 °C

Resources

Resources

Documentation

xls — 0 B
