PVC Garden Lighting

Products

PVC garden lighting

Nexans ref. JSF4GLBK100 - Country ref. 4775

  • Packaging: Spool (100m)
  • Conductor cross-section: 4 mm²
  • Stranding (No./mm): 56/0.30
  • Nominal Overall Size (mm): 5.0 x 10.4
  • Approximate weight: 0.12 kg/m
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Voltage drop single phase at 45°C: 10.9 mV/A.m



PVC garden lighting

Nexans ref. JSF6GLBK100 - Country ref. 6923

  • Packaging: Spool (100m)
  • Conductor cross-section: 6 mm²
  • Stranding (No./mm): 81/0.30
  • Nominal Overall Size (mm): 6.0 x 12.5
  • Approximate weight: 0.16 kg/m
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Voltage drop single phase at 45°C: 7.25 mV/A.m



Description

Description

Standards

  • International
    Manufacturer specification

Application

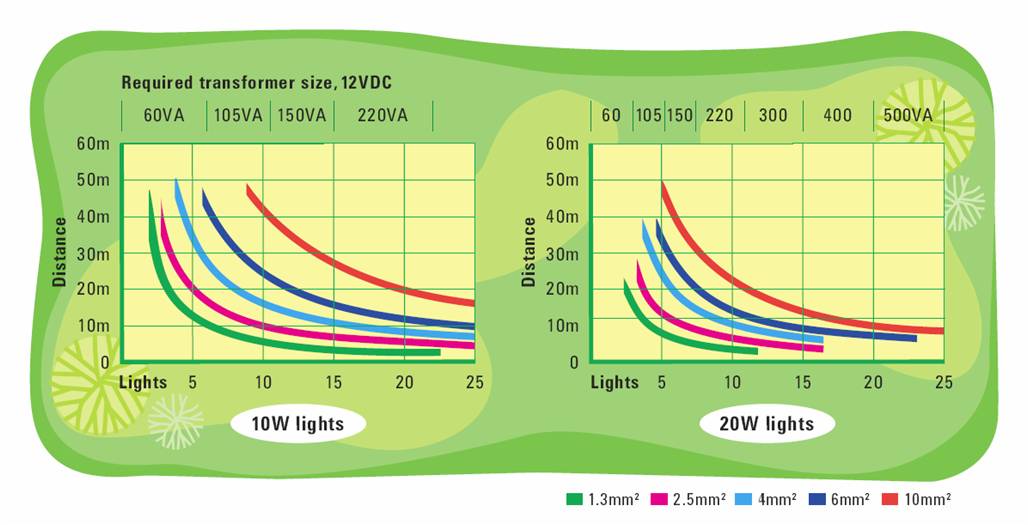

Making garden wiring simple and economical. Gardolex is a robust PVC sheathed extra low voltage power cable for projects of all sizes. The construction has been specifically engineered for outdoor AC/DC lighting applications with a durable, water resistant PVC sheath and is available in six conductor sizes depending on the number of lights, wattage and cable length you require. The graphs will help you find the cable and transformer rating that's appropriate for your project. If unsure, ask your consultant or reseller for advice.

Note: this cable is non divisible

Which cable is best for you

Work out which cable is best for your needs.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Plain annealed copper
Type of conductor
Stranded copper
Insulation
PVC

Dimensional characteristics

Dimensional characteristics

Number of cores
2

Electrical characteristics

Electrical characteristics

Maximum operating voltage
50 VAC / 120 VDC

Usage characteristics

Usage characteristics

Packaging
Spool 100m
Maximum operating temperature
75 °C
Water proof
Yes
