Cu Aerial - Trurip

Products

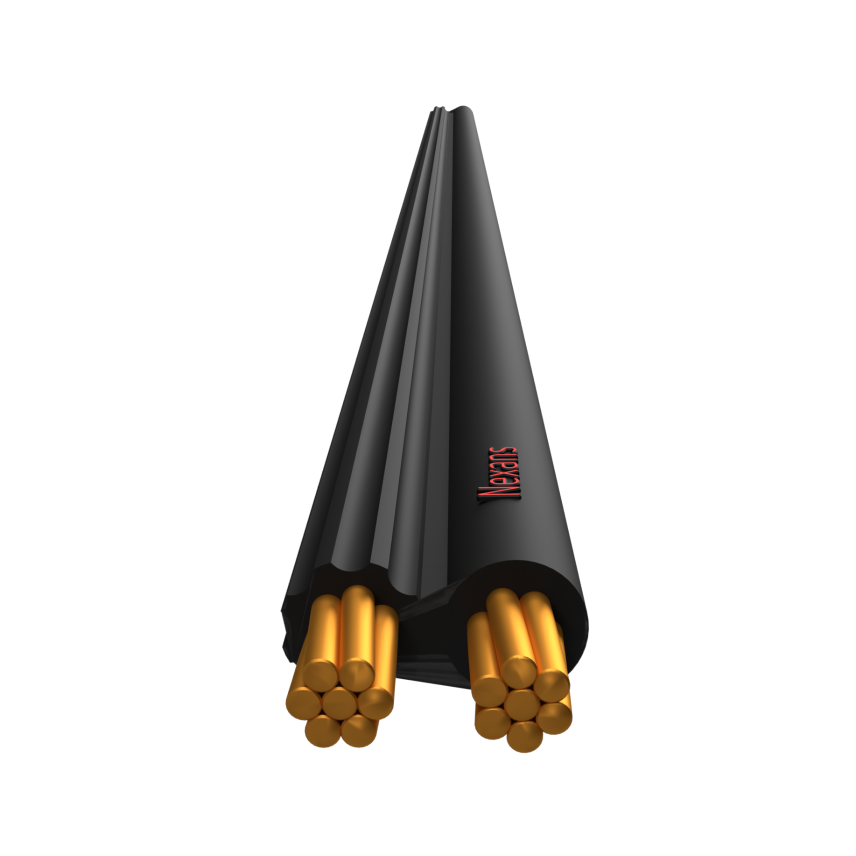

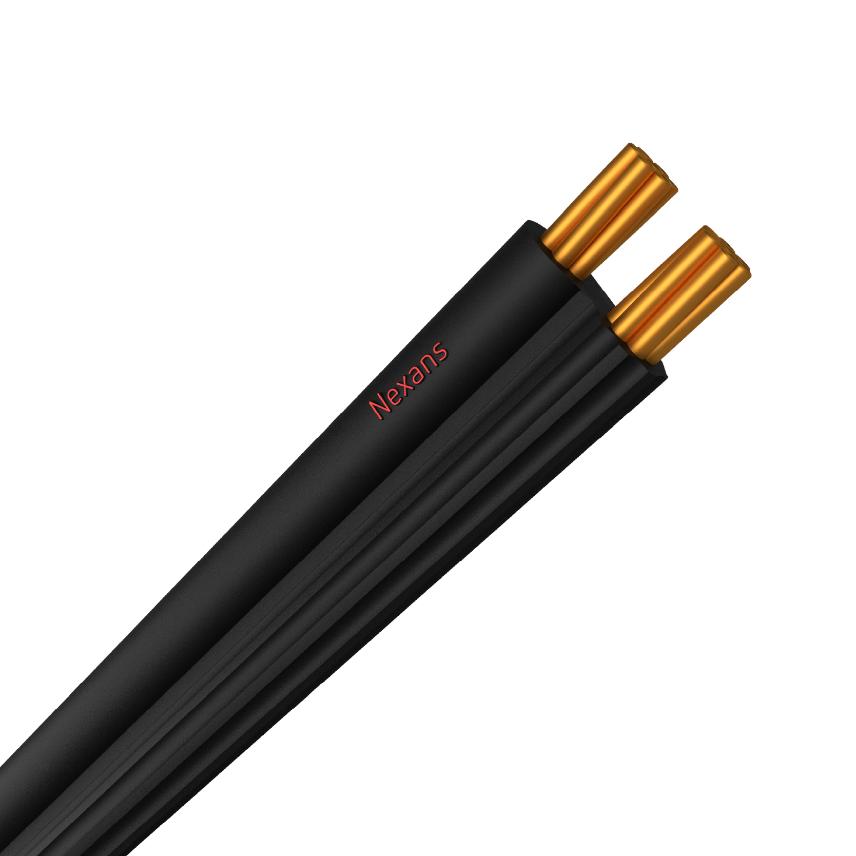

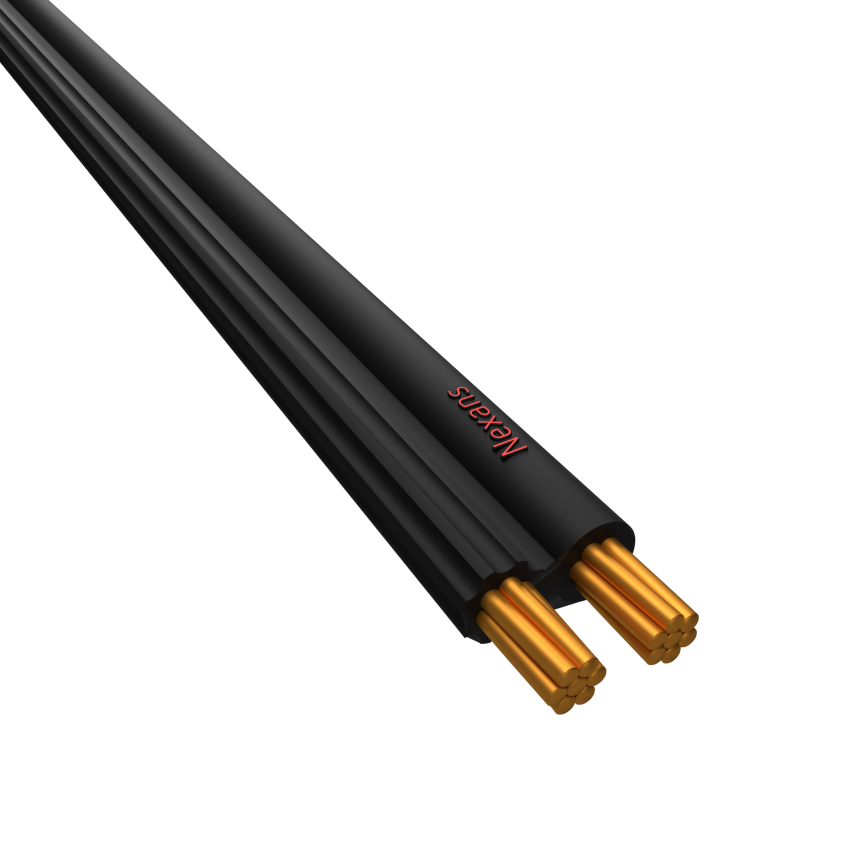

Cu Aerial - Trurip 2x16

Nexans ref. DAAT15AA002AABK - Country ref. 6668

  • Number of cores: 2
  • Nominal overall diameter: 15.4 mm
  • Approximate weight: 0.35 kg/m



Cu Aerial - Trurip 3x16

Nexans ref. FAAT15AA003AABK - Country ref. 7980

  • Number of cores: 3
  • Nominal overall diameter: 23.5 mm
  • Approximate weight: 0.53 kg/m



Description

Description

Standards

  • National
    AS/NZS 5000.1

Can be used for aerial reticulation to residential and rural areas where reliability. safety and low installation costs are required.

It is also designed for residential and rural areas for reducing the bushfire hazards.

The covering contains a high level of carbon black for UV resistance.

It is designed for where reliability, safety and low installation costs are required, it is only for short spans due to increased weight.

Note

  1. Content from AS/NZS 3008.1.2:2010 has been reproduced with the permission from Standards New Zealand under Copyright Licence 000926. Please see the Standard for full details.
  2. Current ratings are based on an ambient temperature of 30°C, a maximum conductor temperature of 75°C, summer noon and intensity of solar radiation 1000 W/m².

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
16 mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV

Usage characteristics

Usage characteristics

Maximum operating temperature
75 °C
