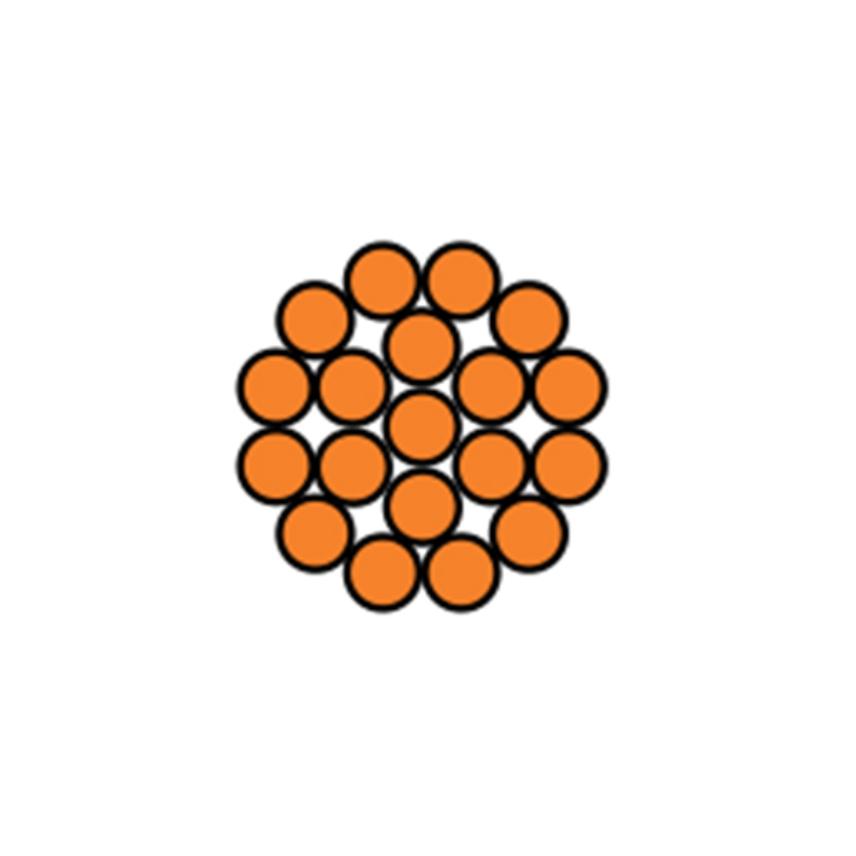

CU Strand - Soft Drawn

Products

CU STRAND 16

Nexans ref. ACUP15AA001AAAA - Country ref. 1641

  • Packaging: Cut to length (m)
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 5.0 mm
  • Approximate weight: 0.15 kg/m



CU STRAND 25

Nexans ref. ACUP17AA001AAAA - Country ref. 9211

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 6.3 mm
  • Approximate weight: 0.23 kg/m



CU STRAND 35

Nexans ref. ACUP18AA001AAAA - Country ref. 9733

  • Packaging: Cut to length (m)
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 7.6 mm
  • Approximate weight: 0.32 kg/m



CU STRAND 50

Nexans ref. ACUP19AA001AAAA - Country ref. 5979

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 8.8 mm
  • Approximate weight: 0.43 kg/m



CU STRAND 70

Nexans ref. ACUP20AA001AAAA - Country ref. 3350

  • Packaging: Cut to length (m)
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 10.5 mm
  • Approximate weight: 0.62 kg/m



CU STRAND 95

Nexans ref. ACUP21AA001AAAA - Country ref. 7934

  • Packaging: Cut to length (m)
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 12.4 mm
  • Approximate weight: 0.86 kg/m



CU STRAND 120

Nexans ref. ACUP23AA001AAAA - Country ref. 5301

  • Packaging: Cut to length (m)
  • Conductor cross-section: 120 mm²
  • Nominal overall diameter: 14.1 mm
  • Approximate weight: 1.09 kg/m



Description

Description

Standards

  • National
    AS/NZS 1125

Application

  • Use for earthing system (grid).

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
